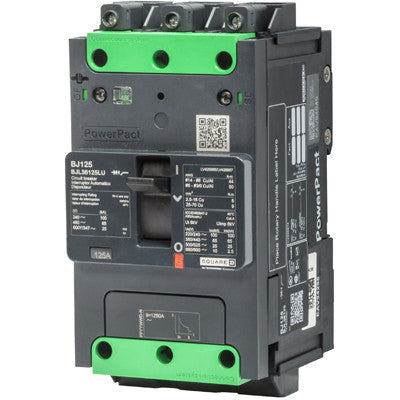

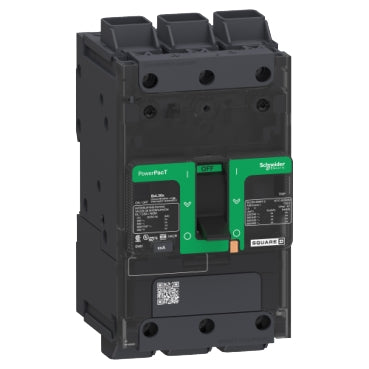

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Molded Case
- Rated current
- 70
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 18kA@480V
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Terminals
- Everlink Lug Both Ends
- Phase connection
- ABC
- Panel / equipment
- Electrical Distribution Equipment, Industrial Control Panels
- Mounting
- DIN Rail
- Standards
- EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, GB 14048.2, UL 489, NMX J-266
- Country of origin
- Mexico
Show all specifications (10 more)
- Frame Size
- 125A/BD
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type
- Standard
- UPC
- 785901095101
- GTIN
- 03606481149145
- Dimensions
- 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight
- 2.954
- Certification
- UL, IEC, CCC, EAC, CSA, NOM
- Wire Size
- AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Product description & additional details
BDL36070LU
BDL36070LU is a Schneider Electric PowerPact B molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This breaker features a 70A continuous current rating, 3-pole configuration, and is rated for 600Y/347VAC service with a 14kA interrupt rating. It is equipped with thermal magnetic trip technology and is suitable for DIN rail mounting. The breaker includes lugs for easy connection and a control wire on the end for convenient operation. This PowerPact B series breaker is engineered for durability and safety, providing dependable circuit protection in a compact design. The 80% continuous current rating ensures compatibility with a wide range of electrical loads and applications. The breaker is ideal for use in panelboards, switchboards, and industrial control panels where reliable overcurrent protection is required.
- Part Number: BDL36070LU
- Manufacturer: Schneider Electric
- Series/Frame: PowerPact B
- Amperage: 70A
- Poles: 3
- Voltage Rating: 600Y/347VAC
- Interrupt Rating: 14kA
- Mounting Type: DIN Rail
- Trip Unit: Thermal Magnetic
- Continuous Current Rating: 80%
- Connection Type: Lugs
- Control Wire: On End
Specifications
- Part Number: BDL36070LU
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Terminal Connection : Everlink Lug Both Ends
- Frame Size : 125A/BD
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type : Standard
- Circuit Breaker Mounting Style : DIN Rail
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901095101
- GTIN : 03606481149145
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 2.954
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, GB 14048.2, UL 489, NMX J-266
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
