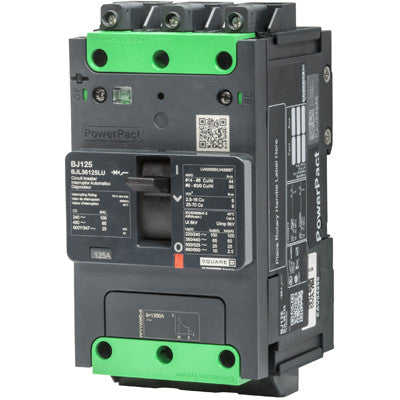

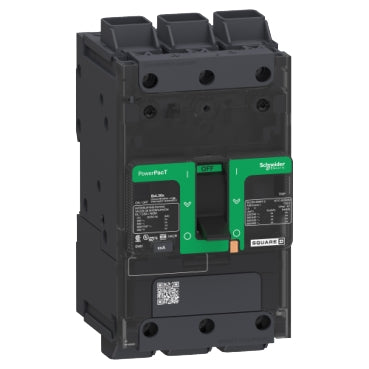

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Molded Case
- Series
- PowerPact B
- Rated current
- 60
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 18kA@480V
- Trip functions
- Long Time and Instantaneous Trip
- Protection
- Thermal Magnetic
- Connection
- Feed-Thru
- Terminals
- Everlink Lug Both Ends
- Phase connection
- ABC
- Panel / equipment
- Electrical Distribution Equipment, Industrial Control Panels
- Standards
- NMX J-266, EN/IEC 60947-5-1, UL 489, GB 14048.2, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2
- Country of origin
- United States
Show all specifications (10 more)
- Frame Size
- 125A/BD
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type
- Standard
- UPC
- 785901095095
- GTIN
- 03606481149138
- Dimensions
- 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight
- 2.599
- Certification
- UL, IEC, CCC, EAC, CSA, NOM
- Wire Size
- AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Product description & additional details
BDL36060LU
BDL36060LU is a PowerPacT B molded case circuit breaker from Schneider Electric designed for industrial and commercial power distribution applications. This thermal magnetic breaker provides reliable overcurrent protection with a 60-ampere rating and 3-pole configuration suitable for three-phase systems operating at 600Y/347 volts AC. The breaker features toggle actuator operation and lugs for secure wire connections, with control wire positioned on the ON end for convenient installation and operation. Key Specifications
- Part Number: BDL36060LU
- Manufacturer: Schneider Electric
- Series: PowerPacT B
- Current Rating: 60 Amperes
- Number of Poles: 3
- Voltage Rating: 600Y/347 VAC, 50/60 Hz
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 14 kA at 500-525 V AC
- Actuator Type: Toggle
- Terminal Type: Lugs
- Rated Insulation Voltage: 800 V IEC 60947-2
- Compliance: UL 489
Specifications
- Part Number: BDL36060LU
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : PowerPact B
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Everlink Lug Both Ends
- Frame Size : 125A/BD
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901095095
- GTIN : 03606481149138
- Country of Origin : United States
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 2.599
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : NMX J-266, EN/IEC 60947-5-1, UL 489, GB 14048.2, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
