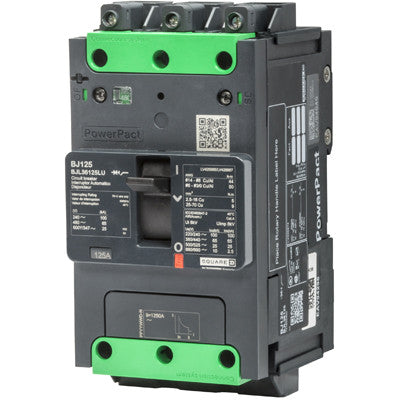

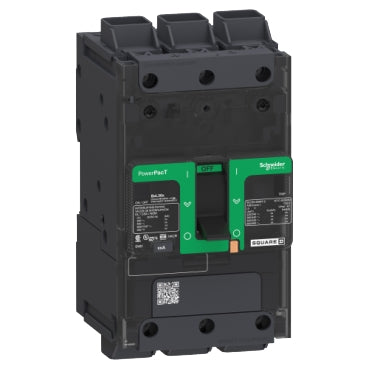

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Sub-Category
- Molded Case
- Rated current
- 40
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 18kA@480V
- Connection
- Feed-Thru
- Terminals
- Everlink Lug Both Ends
- Phase connection
- ABC
- Panel / equipment
- Electrical Distribution Equipment, Industrial Control Panels
- Standards
- NEMA AB1, NMX J-266, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 5
- Country of origin
- United States
- Frame Size
- 125A/BD
Show all specifications (9 more)
- Temp Rating
- -13°F to 158°F (-25°C to 70°C)
- MCM Size
- Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type
- Standard
- UPC
- 785901094432
- GTIN
- 03606481149107
- Dimensions
- 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight
- 2.943
- Certification
- UL, IEC, CCC, EAC, CSA, NOM
- Wire Size
- AWG 6...AWG 2/0 fine stranded aluminium/copper AWG 14...AWG 3/0 rigid or stranded aluminium/copper
Product description & additional details
BDL36040LU
BDL36040LU is a Schneider Electric PowerPacT B-frame molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole breaker features a 40A continuous current rating and is rated for 600Y/347VAC systems with a 14kA interrupt rating at 600VAC. It uses a thermal magnetic trip unit for dependable overcurrent protection and includes EverLink lugs for secure, long-lasting connections. The breaker is equipped with integrated DIN rail mounting and built-in control wire terminals for fast installation and easy wiring. The PowerPacT B series offers compact design, field-installable accessories, and dual-break rotating contacts that reduce peak fault current and enhance equipment protection. This breaker is suitable for use in a wide range of electrical distribution systems and is designed for easy integration and maintenance.
- 40A continuous current rating
- 3 pole configuration
- 600Y/347VAC maximum voltage
- 14kA interrupt rating at 600VAC
- Thermal magnetic trip unit
- EverLink lugs for secure connections
- Integrated DIN rail mounting
- Built-in control wire terminals
- Dual-break rotating contacts
- PowerPacT B-frame series
- 80% continuous current rating
- Field-installable accessories
Specifications
- Part Number: BDL36040LU
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Terminal Connection : Everlink Lug Both Ends
- Frame Size : 125A/BD
- Temp Rating : -13°F to 158°F (-25°C to 70°C)
- MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type : Standard
- Phase Connection : ABC
Product Data
- UPC : 785901094432
- GTIN : 03606481149107
- Country of Origin : United States
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 2.943
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : NEMA AB1, NMX J-266, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 5
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
