BDA160901 - Schneider Electric PowerPact B-Frame 90A 1-Pole 600Y/347VAC 14kA I-Line Thermal Magnetic Circuit Breaker

SKU: BDA160901-New
Condition: New
Price:
$274.79
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

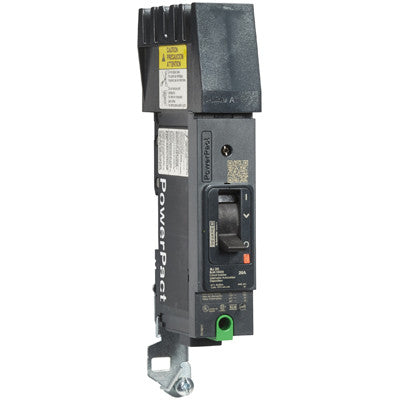

BDA160901 - Square D/ Schneider Electric I-Line Style Plug-In 90 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BDA160901 - Schneider Electric I-Line 600V 90A 1 pole circuit breaker 25kA@240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA160901 - Square D/ Schneider Electric I-Line Style Plug-In 90 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BDA160901 - Schneider Electric I-Line 600V 90A 1 pole circuit breaker 25kA@240V - Essential Electric Supply

Description

BDA160901


BDA160901 is a Schneider Electric PowerPact B-Frame molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This device features a 90A current rating, 1-pole configuration, and is rated for 600Y/347VAC service with an interrupt rating of 14kA at 600Y/347VAC. It is specifically designed for I-Line mounting and utilizes a thermal-magnetic trip unit for dependable overcurrent protection. The PowerPact B-Frame series is known for its robust construction and compatibility with a wide range of electrical panels. The BDA160901 is suitable for applications requiring a compact, high-performance circuit breaker with proven reliability in demanding environments.
  • Part Number: BDA160901
  • Manufacturer: Schneider Electric
  • Series/Frame: PowerPact B-Frame
  • Amperage: 90A
  • Poles: 1
  • Voltage: 600Y/347VAC
  • Interrupt Rating: 14kA at 600Y/347VAC
  • Mounting Type: I-Line
  • Trip Unit: Thermal Magnetic
  • Certifications: UL 489
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA160901
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 90
  • Phase : 1
  • Poles : 1
  • AIC rating : 25kA@240V
  • Connection : I-Line
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : A

Product Data

  • UPC : 785901031383
  • GTIN : 03606481151117
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.1
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : UL 489, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-5-1, NEMA AB1, NMX J-266, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
