BDA160251 - Schneider Electric 25A 600Y/347VAC 1 Pole I-Line Molded Case Circuit Breaker PowerPact B

Save $2,347.56
SKU: BDA160251-New
Condition: New
Price:
$430.44 $2,778.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BDA160251 - Essential Electric Supply

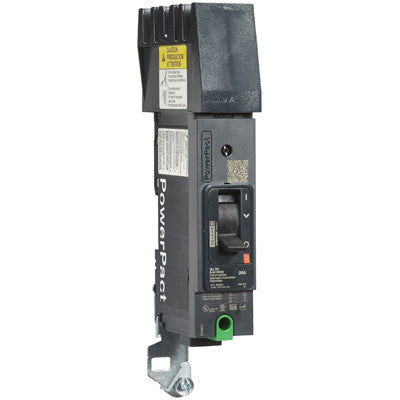

BDA160251 - Schneider Electric I-Line Style Plug-In 600V 25A 1 pole circuit breaker 25kA@240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA160251 - Essential Electric Supply
BDA160251 - Schneider Electric I-Line Style Plug-In 600V 25A 1 pole circuit breaker 25kA@240V - Essential Electric Supply

Description

BDA160251


BDA160251 is a Schneider Electric 1 pole, 25 amp, 600Y/347VAC molded case circuit breaker with I-Line style plug-in mounting and thermal magnetic protection.

This PowerPact B series breaker features long-time and instantaneous trip functions, a 25kA interrupting rating at 240VAC, and 14kA at 600/347VAC. It includes load side mechanical lug terminals compatible with AWG 14 to 2/0 copper or aluminum wire and is UL, CSA, CE, and other certified for industrial and electrical distribution use.

    Key Specifications
    • Amperage: 25A
    • Voltage: 600Y/347VAC
    • Poles: 1
    • Mounting Type: I-Line Style Plug-In
    • Interrupt Rating: 25kA@240VAC, 14kA@600/347VAC
    • Series/Frame: PowerPact B
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
    • Terminal Connection: Load Side Mechanical Lug
    • Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
    • Certifications: UL, CSA, CE, NEMA, NOM, EN/IEC, CCC, EAC, GB, NMX
    • Temperature Rating: -25 to 70 °C
    • Breaker Feature: Mercury Free, PVC Free

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: BDA160251
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 25
  • Phase : 1
  • Poles : 1
  • AIC rating : 25kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : A

Product Data

  • UPC : 785901031383
  • GTIN : 03606481151025
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.1
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-5-1, NEMA AB1, UL 489, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-2, NMX J-266
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
