BDA160203 - Schneider Electric 20A 1 Pole 600Y/347VAC PowerPact B Circuit Breaker Thermal Magnetic I-Line 14kA

BDA160203

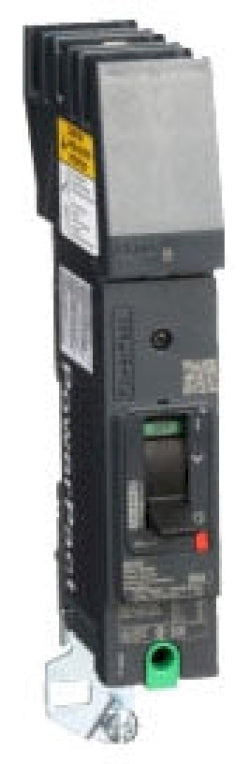

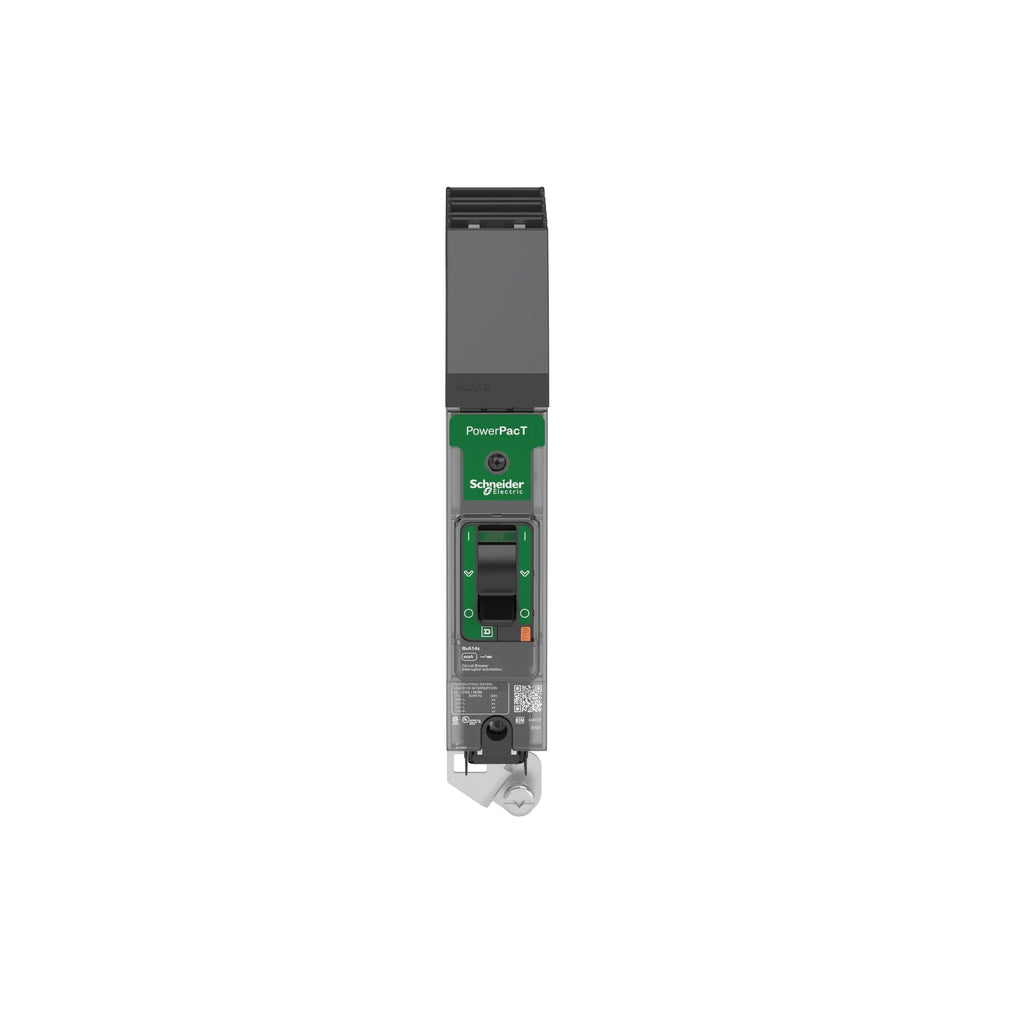

BDA160203 is a Schneider Electric PowerPact B series 1 pole circuit breaker rated for 20 amps and 600Y/347VAC voltage with thermal magnetic trip unit.This molded case circuit breaker features a 14kA interrupt rating at 600Y/347VAC, I-Line style plug-in mounting, and an 80% continuous current rating. It is designed for reliable circuit protection in commercial and industrial applications.

• Manufacturer: Schneider Electric
• Part Number: BDA160203
• Amperage: 20A
• Voltage Rating: 600Y/347VAC
• Poles: 1
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 14kA
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Certifications: Meets industry standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA160203
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : D
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : B

Product Data

• UPC : 060648115116
• GTIN : 03606481151162
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.769
• Standards : NEMA AB1, EN/IEC 60947-5-1, GB 14048.2, UL 489, EN/IEC 60947-2, NMX J-266, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
