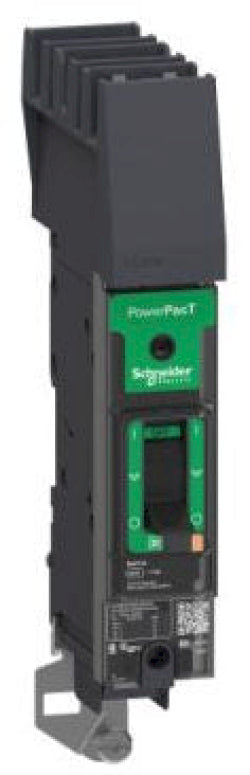

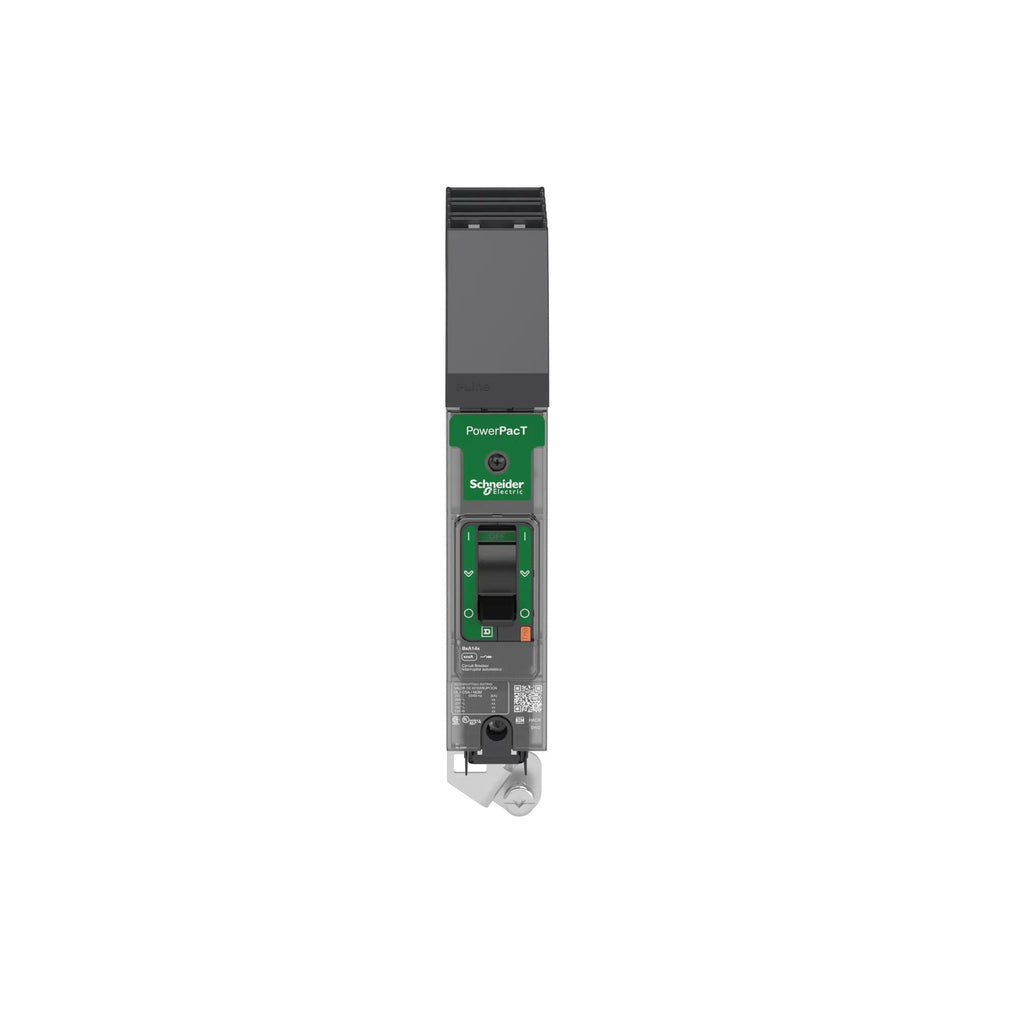

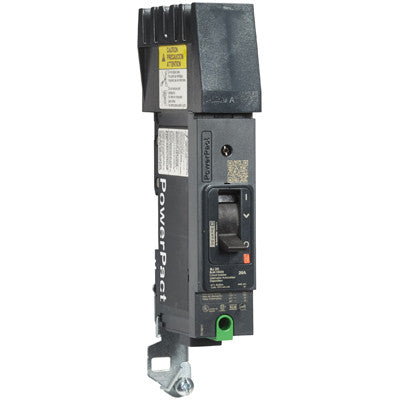

BDA160201 - Schneider Electric 20A 600Y/347VAC 1 Pole PowerPact B I-Line Circuit Breaker

BDA160201

BDA160201 is a Schneider Electric PowerPact B series molded case circuit breaker designed for reliable circuit protection in industrial and commercial applications.This 1 pole circuit breaker features a 20 ampere rating, 600Y/347VAC voltage rating, and thermal magnetic trip unit. It uses an I-Line style plug-in mounting system and offers a 14kA interrupting rating. The breaker is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with global safety standards.

• Amperage: 20A
• Voltage Rating: 600Y/347VAC
• Poles: 1
• Mounting Type: I-Line plug-in
• Interrupt Rating: 14kA
• Series/Frame: PowerPact B
• Trip Unit: Thermal magnetic
• Continuous Current Rating: 80%
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Phase: Single
• Connection: I-Line style plug-in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA160201
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 785901047339
• GTIN : 03606481151018
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.1
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, CSA C22.2 No 5, EN/IEC 60947-2, UL 489, NMX J-266, GB 14048.2, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
