BDA160155 - Schneider Electric 15A 600Y/347VAC 1 Pole Powerpact B I-Line Circuit Breaker

BDA160155

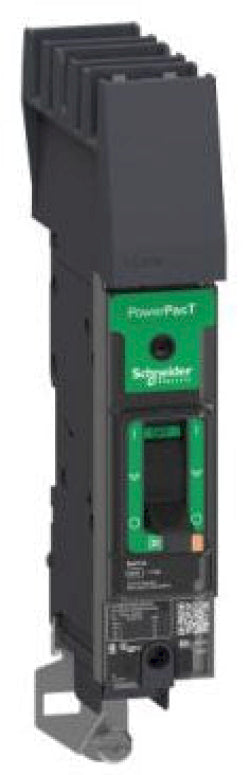

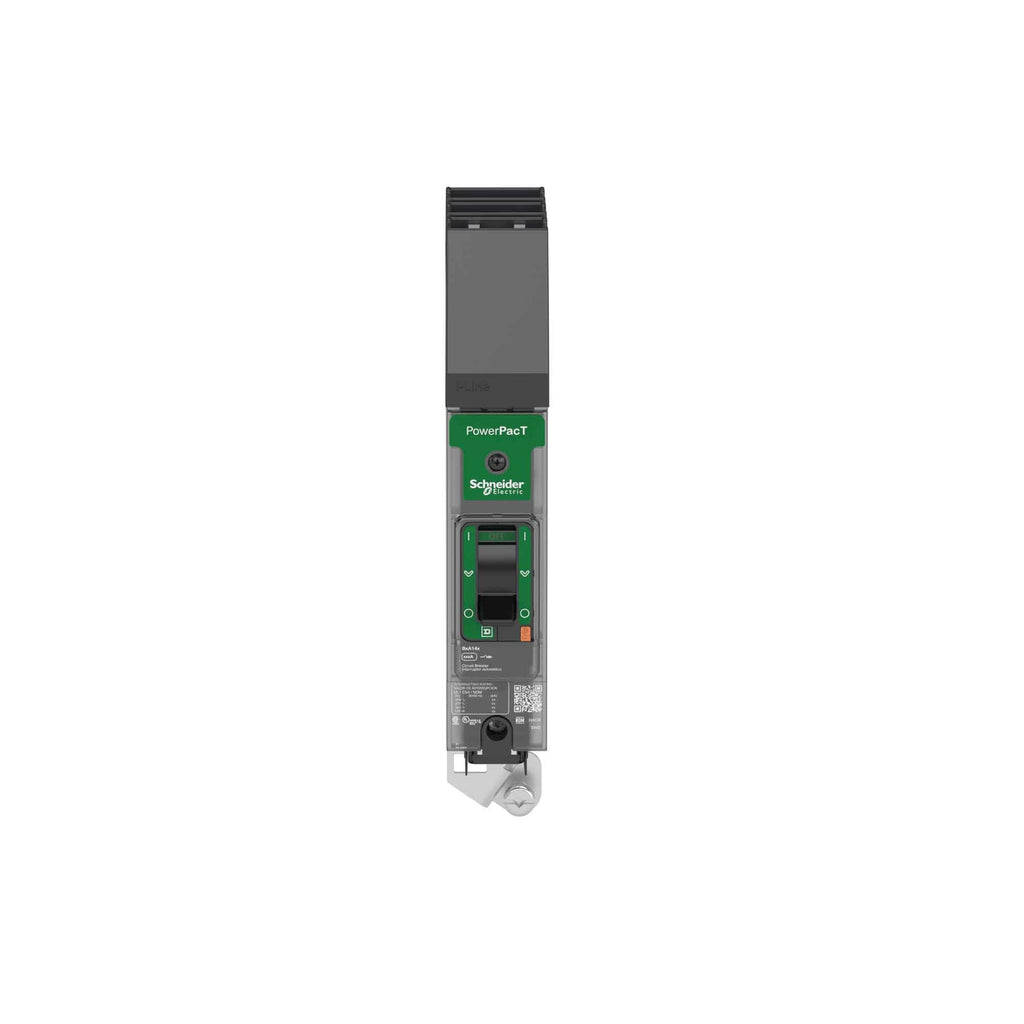

BDA160155 is a Schneider Electric Powerpact B molded case circuit breaker with a 15 amp rating and 600Y/347VAC voltage for 1 pole I-Line style plug-in mounting.This thermal magnetic circuit breaker features long-time and instantaneous trip functions, a 25kA interrupt rating at 240V, and load side mechanical lug terminals. It is UL, CSA, NOM, IEC, CCC certified, and CE marked, designed for reliable circuit protection in commercial and industrial applications.

• Manufacturer: Schneider Electric
• Family: Powerpact B
• Poles: 1
• Amperage: 15A
• Voltage: 600Y/347VAC
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25kA @ 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Connection: Load side mechanical lug terminals
• Weight: Approximately 1.41 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA160155
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : B Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648115130
• GTIN : 03606481151308
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.838
• Standards : NEMA AB1, EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2, NMX J-266, UL 489, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
