BDA160205 - Schneider Electric PowerPact B 20A 1P 600V/347V AC Molded Case Circuit Breaker, Thermal Magnetic Trip, I-Line Plug-In Mount, UL 489, 14kA Interrupt

Save $51.52
SKU: BDA160205-New
Condition: New
Price:
$313.48 $365.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

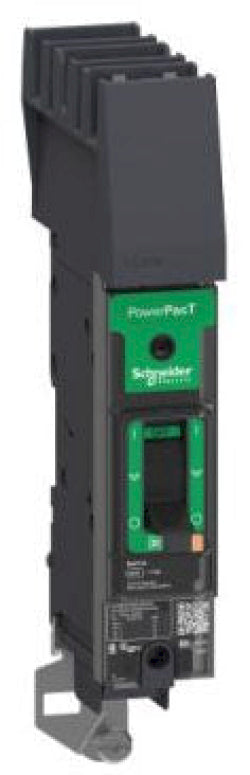

BDA160205 - Schneider Electric/ Square D I-Line Style Plug-In 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply

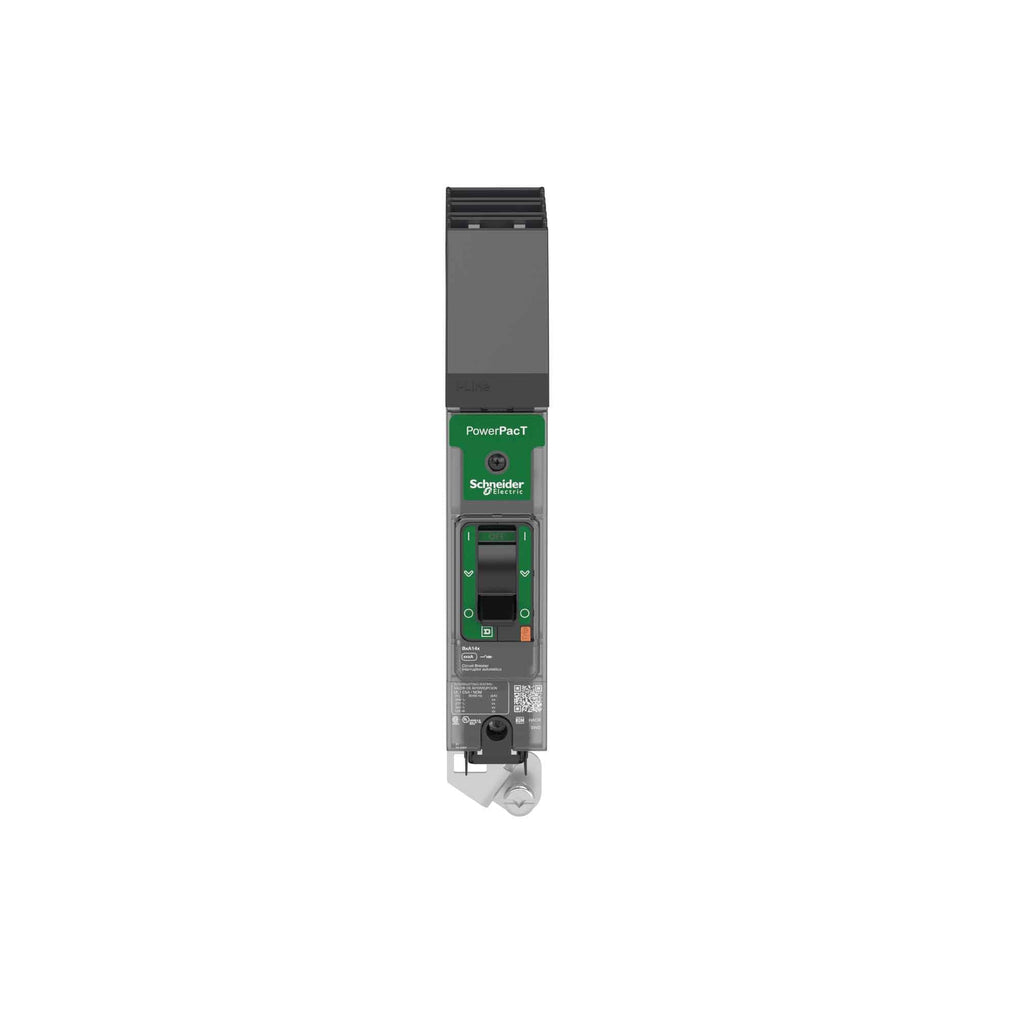

BDA160205 - Schneider Electric PowerPact B 20A 1P 600V/347V AC Molded Case Circuit Breaker, Thermal Magnetic Trip, I-Line Plug-In Mount, UL 489, 14kA Interrupt - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA160205 - Schneider Electric/ Square D I-Line Style Plug-In 20 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BDA160205 - Schneider Electric PowerPact B 20A 1P 600V/347V AC Molded Case Circuit Breaker, Thermal Magnetic Trip, I-Line Plug-In Mount, UL 489, 14kA Interrupt - Essential Electric Supply

Description

BDA160205


BDA160205 is a Schneider Electric PowerPact B series molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This 1-pole, 20A breaker features a thermal magnetic trip unit, I-Line style plug-in mounting, and is rated for 600Y/347V AC operation. It offers robust performance with a high interrupting capacity and meets multiple international safety standards.

    Key Specifications
  • Part Number: BDA160205
  • Manufacturer: Schneider Electric
  • Series/Frame: PowerPact B
  • Amperage: 20A
  • Voltage: 600Y/347V AC (also rated 240V AC, 480Y/277V AC, 208Y/120V AC)
  • Poles: 1
  • Mounting Type: I-Line Plug-In
  • Interrupt Rating: 14kA at 600Y/347V AC (25kA at 208Y/120V AC, 25kA at 240V AC, 18kA at 480Y/277V AC)
  • Trip Unit: Thermal Magnetic
  • Certifications: UL 489, IEC, CCC, EAC, CSA, NOM
  • Connection: Plug-In
  • Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: BDA160205
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 20
  • Phase : 1
  • Poles : 1
  • AIC rating : 25kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : D
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : C

Product Data

  • UPC : 060648115131
  • GTIN : 03606481151315
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.1
  • Standards : UL 489, NEMA AB1, NMX J-266, EN/IEC 60947-5-1, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
