BDA160801 - Schneider Electric PowerPact B 80A 1P 347V AC Circuit Breaker DIN Rail Mount 14kA Interrupt Rating

Save $2,545.42
SKU: BDA160801-New
Condition: New
Price:
$320.58 $2,866.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

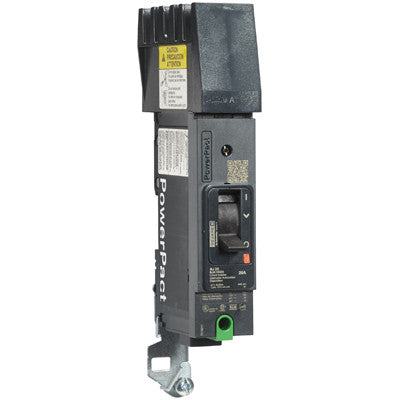

BDA160801 - Schneider Electric/ Square D I-Line Style Plug-In 80 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BDA160801 - Schneider Electric I-Line 600V 80A 1 pole circuit breaker 25kA@240V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA160801 - Schneider Electric/ Square D I-Line Style Plug-In 80 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BDA160801 - Schneider Electric I-Line 600V 80A 1 pole circuit breaker 25kA@240V - Essential Electric Supply

Description

BDA160801


BDA160801 is a Schneider Electric PowerPact B series circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This single-pole breaker features a continuous current rating of 80A and is suitable for use in 347V AC circuits with a breaking capacity of 14kA at 600Y/347V AC. The device is DIN rail mountable and utilizes a thermal magnetic trip unit for accurate overcurrent protection. The PowerPact B series offers robust construction and dependable performance for demanding electrical environments. This breaker is UL listed and designed for use in I-Line busway systems, making it ideal for panel builders and facility maintenance professionals.
  • Part Number: BDA160801
  • Manufacturer: Schneider Electric
  • Series: PowerPact B
  • Amperage: 80A
  • Poles: 1P
  • Voltage Rating: 347V AC
  • Interrupt Rating: 14kA at 600Y/347V AC
  • Mounting Type: DIN Rail
  • Trip Unit: Thermal Magnetic
  • Certification: UL Listed
  • Application: I-Line Busway
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA160801
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 80
  • Phase : 1
  • Poles : 1
  • AIC rating : 25kA@240V
  • Connection : I-Line
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : A

Product Data

  • UPC : 785901031383
  • GTIN : 03606481151100
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.1
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, CSA C22.2 No 5, UL 489, NMX J-266
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
