BDA160403 - Schneider Electric 40A 1 Pole 600V I-Line Molded Case Circuit Breaker B Frame 25kA Interrupt Rating

BDA160403

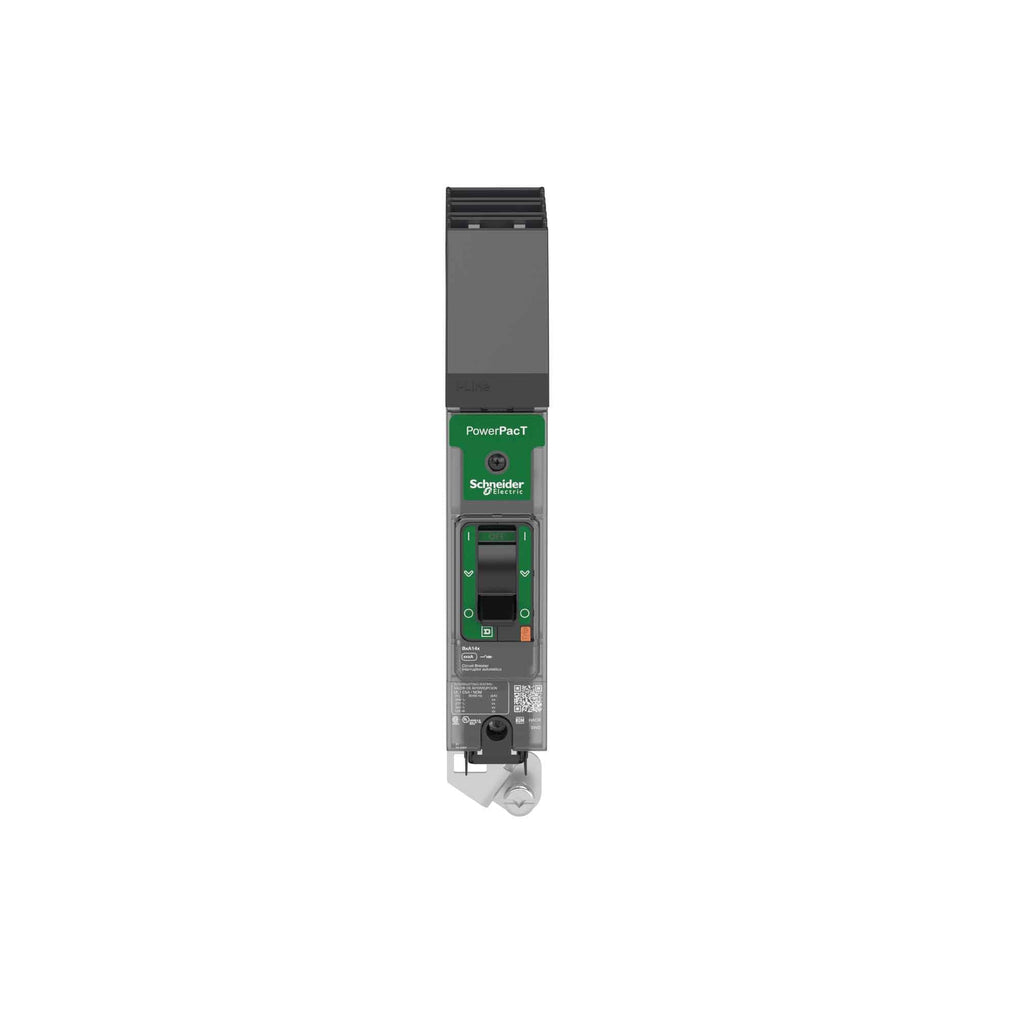

BDA160403 is a Schneider Electric 40 amp, 1 pole molded case circuit breaker designed for I-Line mounting with a 600 Volt rating and B frame size.This circuit breaker features a 25kA interrupt rating at 240V AC, suitable for reliable protection in commercial and industrial electrical systems. It is UL 489 listed and supports dual AC/DC ratings with multiple interrupt capacities for various voltages. The breaker is designed for plug-in I-Line style connection and offers long-time and instantaneous trip functions.

• Amperage: 40 Amps
• Voltage Rating: 600 Volts AC
• Poles: 1 Pole
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kA at 240V AC
• Frame Type: B Frame
• UL Listed: UL 489
• Trip Unit: Long-time and Instantaneous
• Manufacturer: Schneider Electric (Square D)
• Series: PowerPact B
• Dual AC/DC Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA160403
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : D
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : B

Product Data

• UPC : 060648115120
• GTIN : 03606481151209
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.1
• Standards : UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
