BDA160401 - Schneider Electric 40A 1 Pole 600V I-Line PowerPact B Circuit Breaker 25kA@240V UL

BDA160401

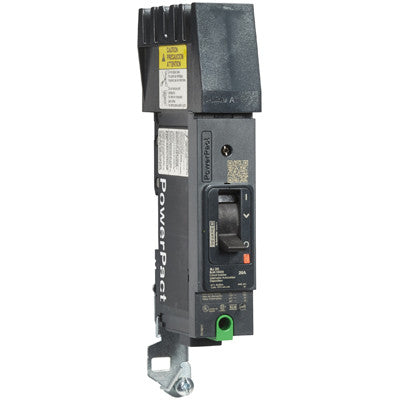

BDA160401 is a Schneider Electric PowerPact B circuit breaker rated for 40 amps, 1 pole, and 600 volts with I-Line mounting and a 25kA interrupt rating at 240V.This molded case circuit breaker features thermal magnetic trip units, UL 489 listing, and dual AC/DC ratings with multiple interrupt capacities depending on voltage. It supports 1 pole I-Line mounting and is designed for reliable circuit protection in industrial and commercial applications.

• Amperage: 40 Amps
• Voltage Rating: 600V AC maximum
• Poles: 1 Pole
• Mounting Type: I-Line
• Interrupt Rating: 25kA at 240V, 18kA at 480Y/277V, 14kA at 125V, 10kA at 600/347V
• Frame Type: PowerPact B Frame
• Trip Unit: Thermal Magnetic
• UL Listed to UL 489
• Dual Rated AC/DC
• Continuous Current Rating: 80%
• Manufacturer: Schneider Electric (Square D)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA160401
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 785901031383
• GTIN : 03606481151056
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.1
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, EN/IEC 60947-5-1, NEMA AB1, UL 489, GB 14048.2, NMX J-266, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
