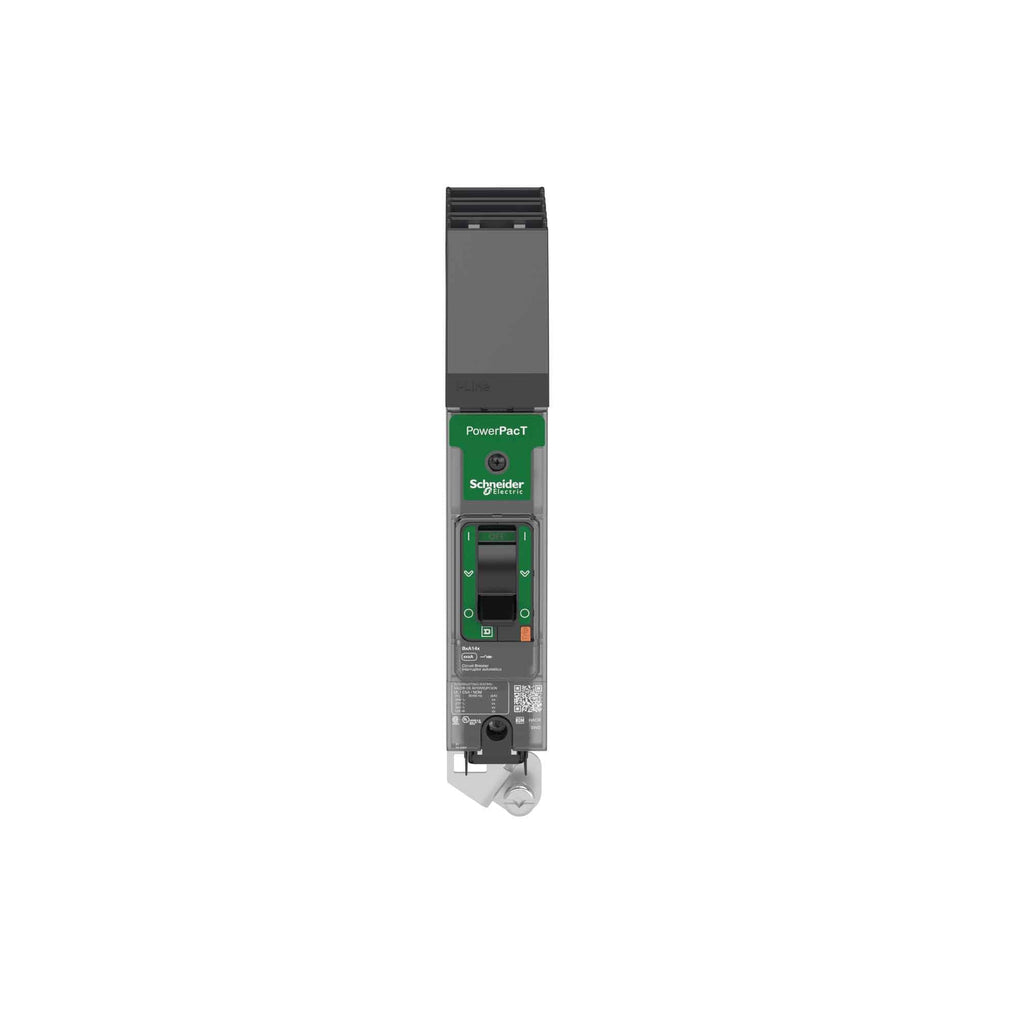

BDA160355 - Schneider Electric 35A 1-Pole PowerPact B Molded Case Circuit Breaker 600V AC

BDA160355

BDA160355 is a Schneider Electric PowerPact B molded case circuit breaker designed for reliable circuit protection.BDA160355 features a 35 ampere thermal magnetic trip unit with a single pole configuration. It is rated for use at voltages up to 600 volts AC and provides a breaking capacity of 14kA at 600Y/347 VAC. This breaker is suitable for industrial and commercial applications requiring robust overcurrent protection.

Key Specifications
• Amperage: 35A
• Voltage Rating: 600V AC
• Number of Poles: 1
• Breaker Type: Thermal Magnetic
• Series/Frame: PowerPact B
• Interrupt Rating: 14kA at 600Y/347 VAC
• Mounting Type: Molded Case
• Actuator Type: Toggle
• Phase: Single

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA160355
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 35
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Frame Size : B Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 060648115134
• GTIN : 03606481151346
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.1
• Standards : EN/IEC 60947-5-1, NEMA AB1, EN/IEC 60947-2, UL 489, CSA C22.2 No 5, NMX J-266, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
