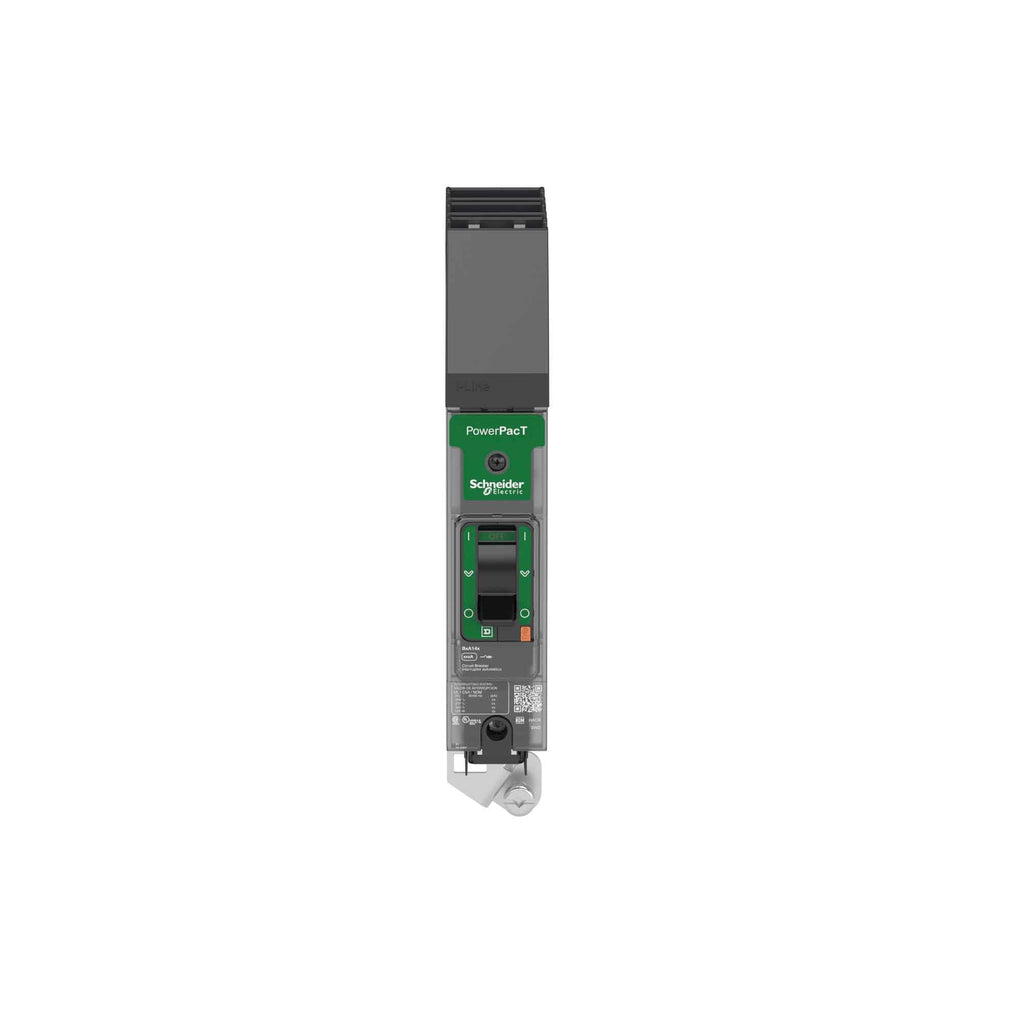

BDA160353 - Schneider Electric 35A 600Y/347VAC 1 Pole I-Line Style Plug-In Circuit Breaker

BDA160353

BDA160353 is a 1 pole, 35 amp, 600Y/347VAC rated circuit breaker from Schneider Electric designed for I-Line style plug-in mounting.BDA160353 features a thermal-magnetic trip unit providing reliable overload and short circuit protection. It has a 25kA interrupting rating at 240V and complies with IEC 60947-2 standards. This molded case circuit breaker is suitable for single-phase applications requiring robust protection and easy installation with I-Line plug-in connection.

• Manufacturer: Schneider Electric
• Amperage: 35 Amps
• Voltage Rating: 600Y/347VAC
• Poles: 1 Pole
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 25kA at 240V
• Trip Unit: Thermal-Magnetic
• Standards: IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA160353
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 35
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Frame Size : B Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• GTIN : 00606481151196
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.1
• Standards : UL 489, GB 14048.2, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, NMX J-266, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
