BDA160351 - Schneider Electric PowerPact B Circuit Breaker 35A 1P 600Y/347VAC 14kA I-Line Thermal Magnetic

Save $702.72
SKU: BDA160351-New
Condition: New
Price:
$479.28 $1,182.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

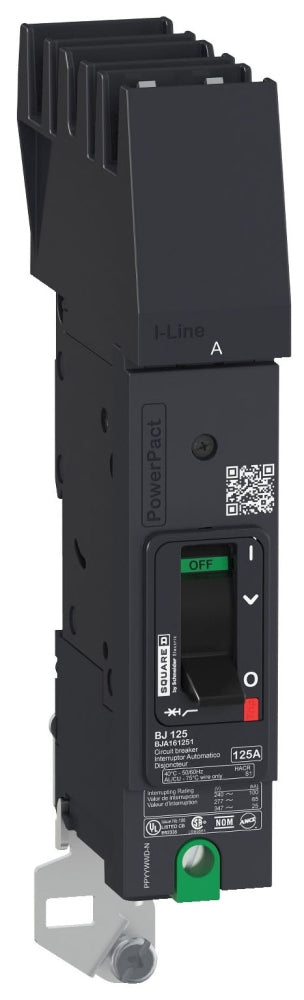

BDA160351 - Schneider Electric/ Square D I-Line Style Plug-In 35 Amp 1 Pole Circuit Breaker - Essential Electric Supply

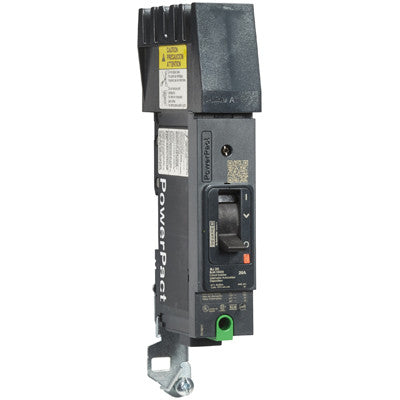

BDA160351 - Schneider Electric I-Line Style Plug-In 600V 35A 1 pole circuit breaker 25kA@240V - Essential Electric Supply

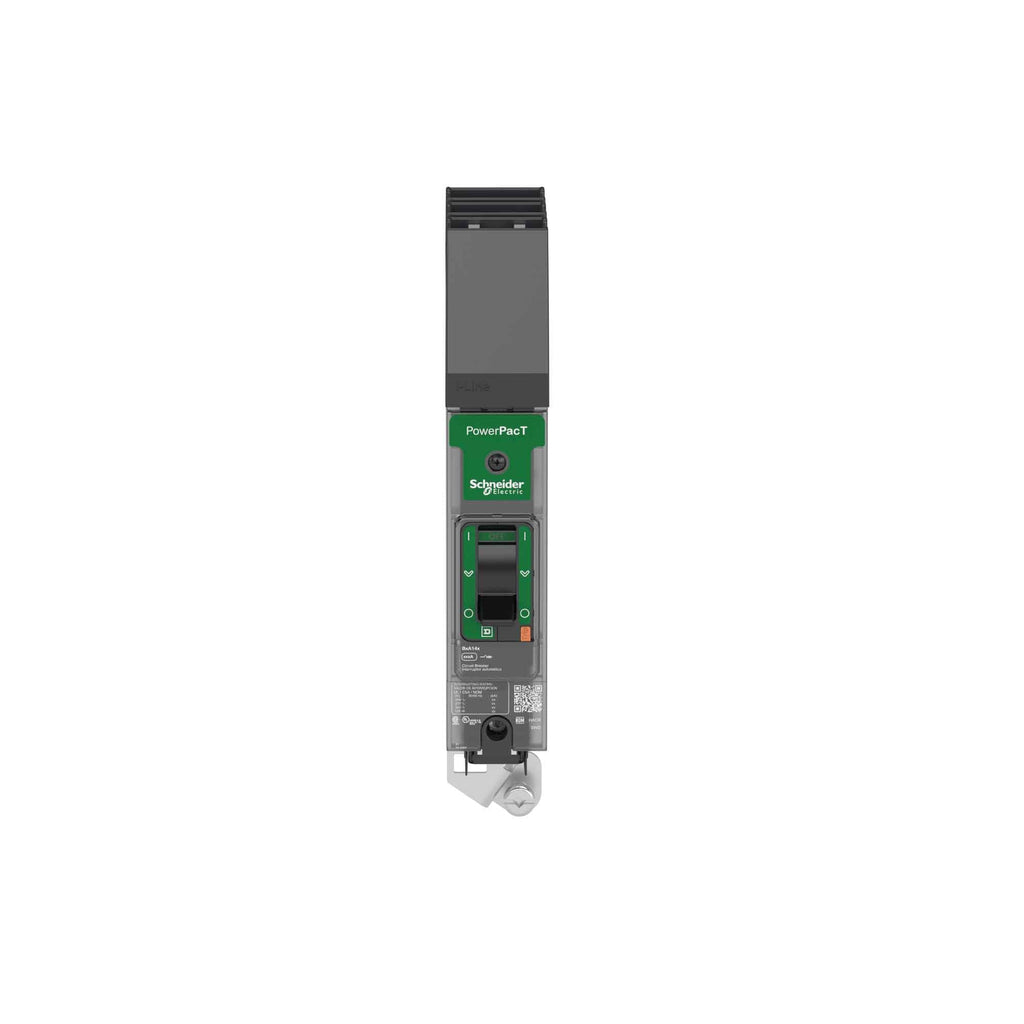

BDA160351 - Schneider Electric PowerPact B Circuit Breaker 35A 1P 600Y/347VAC 14kA I-Line Thermal Magnetic - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA160351 - Schneider Electric/ Square D I-Line Style Plug-In 35 Amp 1 Pole Circuit Breaker - Essential Electric Supply
BDA160351 - Schneider Electric I-Line Style Plug-In 600V 35A 1 pole circuit breaker 25kA@240V - Essential Electric Supply
BDA160351 - Schneider Electric PowerPact B Circuit Breaker 35A 1P 600Y/347VAC 14kA I-Line Thermal Magnetic - Essential Electric Supply

Description

BDA160351


BDA160351 is a single-pole, 35A PowerPact B circuit breaker designed for reliable protection in commercial and industrial applications. This breaker features a thermal magnetic trip unit and is rated for 600Y/347VAC with an interrupt rating of 14kA at 600Y/347VAC, making it suitable for demanding electrical environments.Engineered for I-Line plug-in mounting, the BDA160351 offers dual AC/DC compatibility and is part of the PowerPact B series, known for durability and performance. The breaker is designed for use in systems requiring high reliability and compliance with industry standards.
  • 35A Amperage
  • Single Pole
  • 600Y/347VAC Voltage Rating
  • I-Line Plug-In Mounting
  • 14kA Interrupt Rating at 600Y/347VAC
  • PowerPact B Series
  • Thermal Magnetic Trip Unit
  • UL 489 Listed
  • IEC 60947-2 Compliant
  • Category A
  • 20,000 Electrical Cycles
  • 10,000 Mechanical Cycles
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA160351
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 35
  • Phase : 1
  • Poles : 1
  • AIC rating : 25kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : A

Product Data

  • UPC : 785901031383
  • GTIN : 03606481151049
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.1
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-2, GB 14048.2, NMX J-266, UL 489, EN/IEC 60947-5-1, NEMA AB1, CSA C22.2 No 5
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
