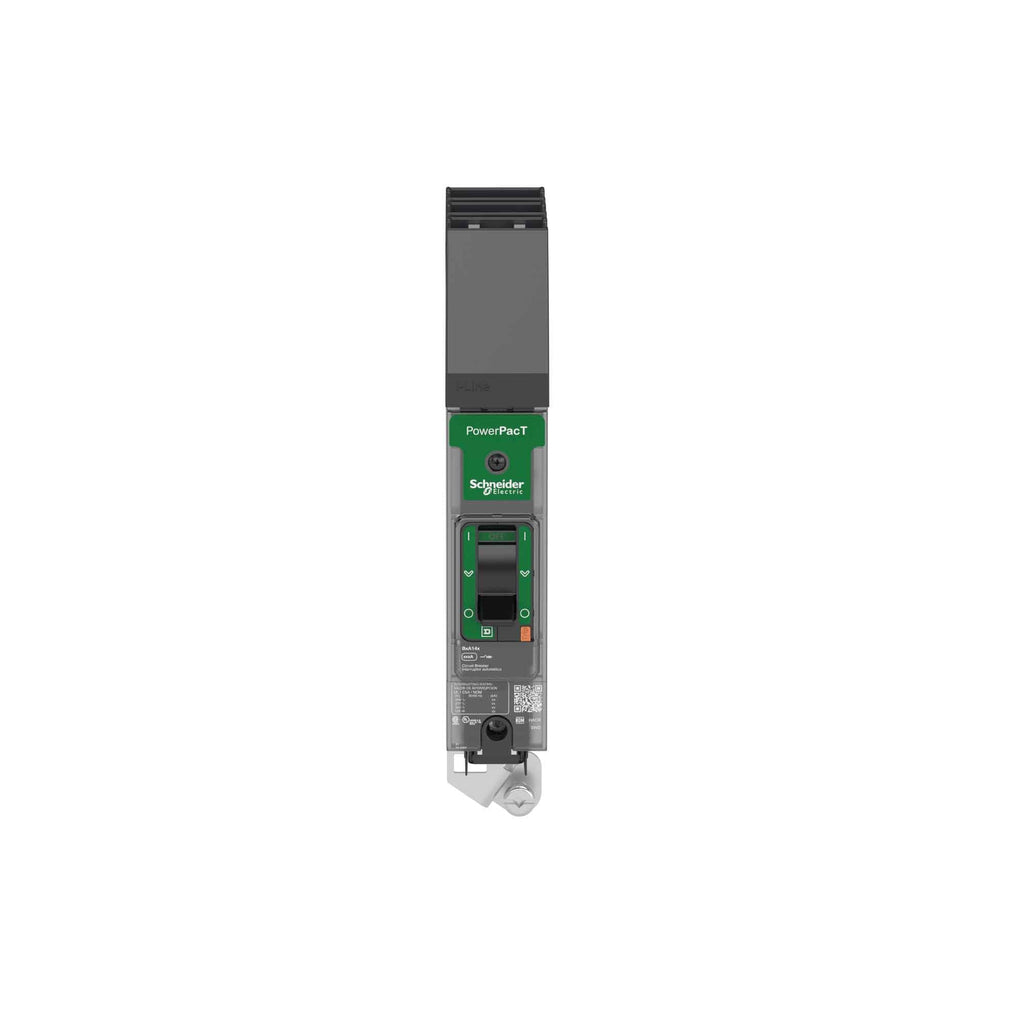

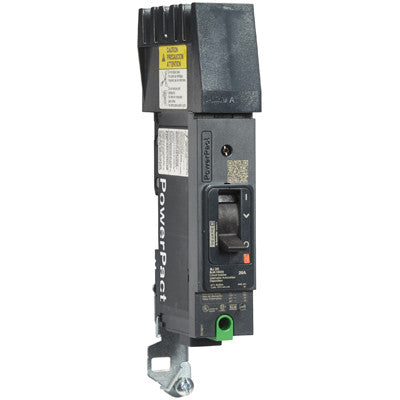

BDA160301 - Schneider Electric 30A 600V 1 Pole I-Line Circuit Breaker PowerPact B Frame

BDA160301

BDA160301 is a Schneider Electric 1 pole, 30 amp, 600 Volt I-Line circuit breaker from the PowerPact B Frame series.This thermal magnetic circuit breaker provides reliable protection with a 14kA interrupt rating at 600Y/347VAC. It features I-Line mounting and is UL, CSA, NOM, IEC, CCC certified and CE marked. Designed for single-phase applications, it supports dual AC/DC ratings and offers robust breaking capacity for industrial and commercial electrical systems.

• Amperage: 30A
• Voltage: 600V
• Poles: 1
• Mounting Type: I-Line
• Interrupt Rating: 14kA at 600Y/347VAC
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Phase: Single-phase
• Breaking Capacity: Dual rated AC/DC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDA160301
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 25kA@240V
• Connection : I-Line
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 785901031383
• GTIN : 03606481151032
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 1.781
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, NEMA AB1, GB 14048.2, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
