BDA160153 - Schneider Electric 15A 600Y/347VAC 1 Pole PowerPact B Circuit Breaker I-Line

Save $16.02
SKU: BDA160153-New
Condition: New
Price:
$347.98 $364.00
Stock:
1 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

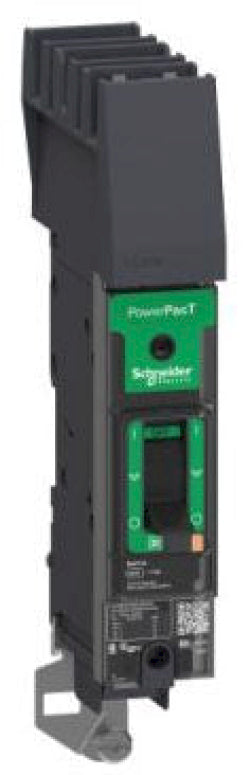

BDA160153 - Schneider Electric/ Square D I-Line Style Plug-In 15 Amp 1 Pole Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDA160153 - Schneider Electric/ Square D I-Line Style Plug-In 15 Amp 1 Pole Circuit Breaker - Essential Electric Supply

Description

BDA160153


BDA160153 is a Schneider Electric 1 pole PowerPact B molded case circuit breaker rated for 15 amps and 600Y/347VAC voltage with I-Line mounting.BDA160153 features thermal magnetic protection with a 25kA interrupting rating at 240VAC and 18kA at 480Y/277VAC. It includes a non-interchangeable trip unit with long-time and instantaneous trip functions and load side mechanical lug terminals compatible with AWG 14 to 2/0 aluminum or copper wire. This breaker meets UL, CSA, CE, IEC, NOM, and other international certifications.
    Key Specifications
    • Amperage: 15A
    • Voltage: 600Y/347VAC
    • Poles: 1
    • Series/Frame: PowerPact B
    • Mounting Type: I-Line Style Plug-In
    • Interrupting Rating: 25kA at 240VAC, 18kA at 480Y/277VAC
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
    • Terminal Connection: Load Side Mechanical Lug
    • Wire Gauge: AWG 14 to 2/0 Aluminum/Copper
    • Certifications: UL, CSA, CE, IEC, NOM, CCC, EAC, RoHS, REACh
    • Temperature Rating: -25 to 70 °C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDA160153
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDA
  • Voltage : 600
  • Amperage : 15
  • Phase : 1
  • Poles : 1
  • AIC rating : 25kA@240V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Frame Size : B Frame
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 060648115115
  • GTIN : 03606481151155
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 1.769
  • Standards : GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-2, UL 489, NMX J-266, EN/IEC 60947-5-1, NEMA AB1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
