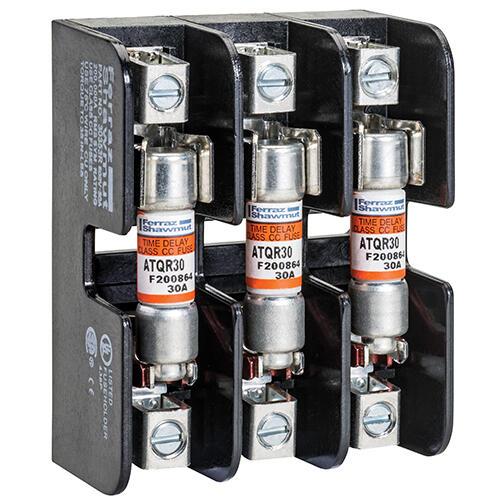

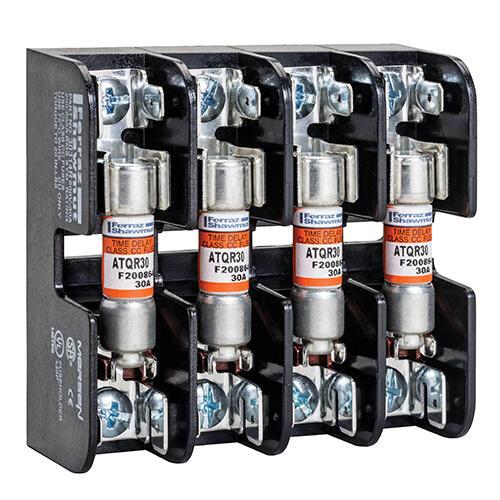

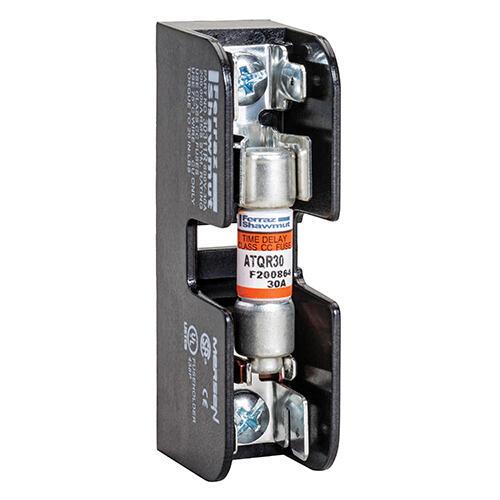

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Mersen
- Sub-Category
- Low Voltage Fuse
- Series
- Amp-Trap 2000
- Frame
- ATQR
- Rated current
- 9
- Voltage
- 600V
- Interrupting rating
- 200kA@600V
- Class rating
- CC
- Barrels
- 1
- Diameter
- 0.41 in
- Country of origin
- Mexico
- UPC
- 782001906658
- GTIN
- 00782001906658
- Dimensions
- x 1-1/2 in x
Show all specifications (2 more)
- Weight
- 0.02
- Certification
- UL/CSA
Product description & additional details

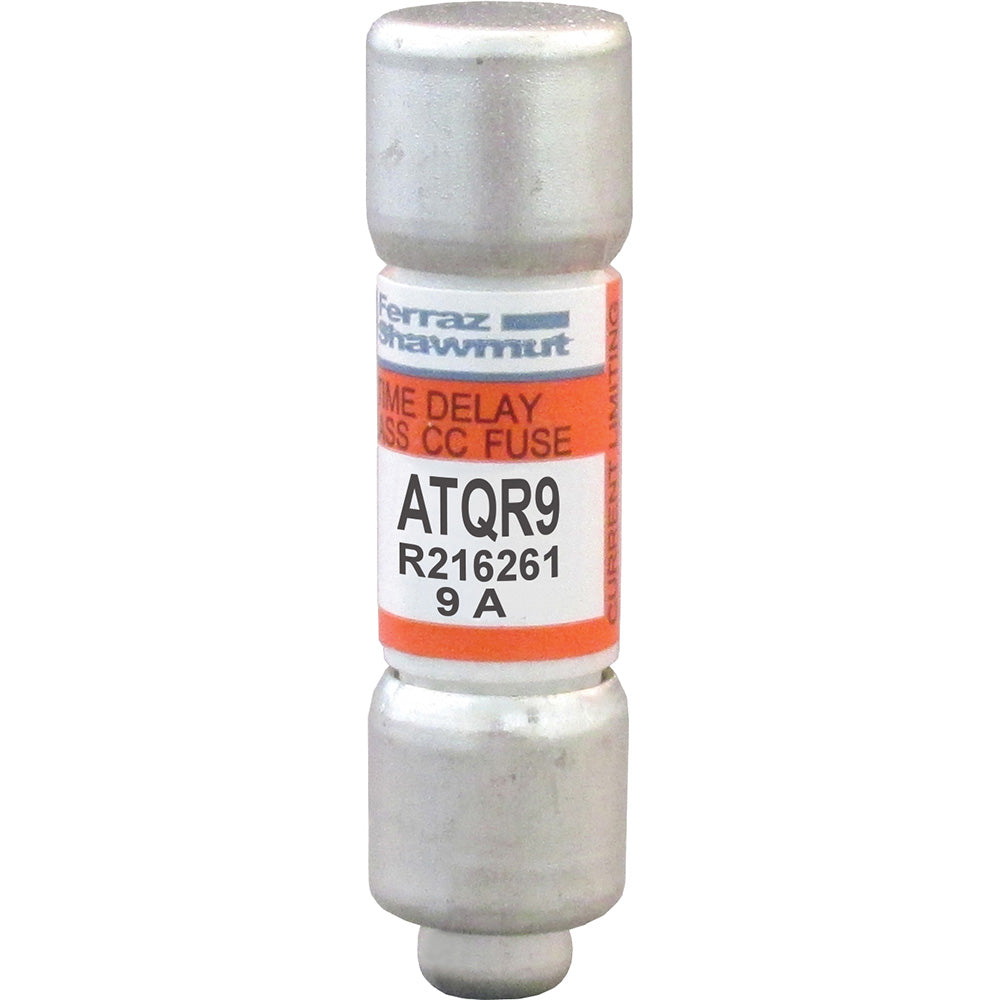

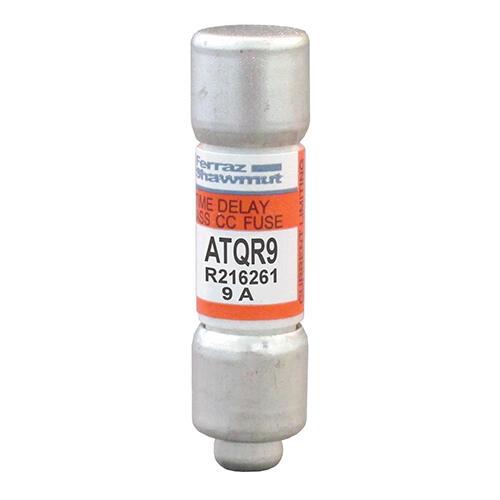

ATQR9
ATQR9 is a 9 Amp, 600 Volt Class CC time delay fuse from Mersen designed for reliable circuit protection.This fuse features a glass melamine laminated body with a clip mounting type, providing transformer duty performance and high interrupt rating of 200 kA. It is UL, CSA, and RoHS certified, suitable for low voltage applications requiring time delay characteristics and rejection style design.
- Key Specifications
- Amperage: 9 Amps
- Voltage Rating AC: 600 Volts
- Voltage Rating DC: 300 Volts
- Fuse Class: Class CC
- Speed/Characteristic: Time Delay
- Mounting Type: Clip
- Interrupt Rating: 200 kA
- Approvals: UL, CSA, RoHS
- Physical Size: 13/32" x 1 1/2"
- Transformer Duty
- Rejection Style Design
Specifications
- Part Number: ATQR9
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : ATQR
- Voltage : 600
- Amperage : 9
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001906658
- GTIN : 00782001906658
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 0.02
- Certification : UL/CSA
