Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

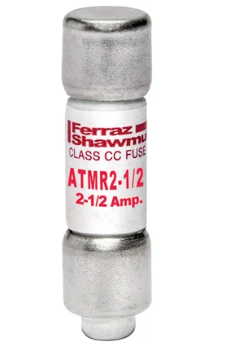

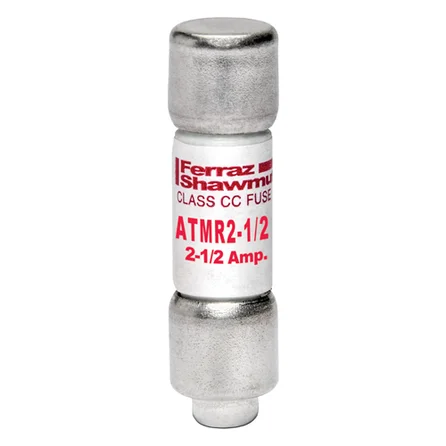

ATMR2-1/2
ATMR2-1/2 is a Mersen fast-acting Class CC fuse rated for 2.5 amperes and 600 volts AC.ATMR2-1/2 provides reliable branch circuit protection with a compact 13/32 inch by 1 1/2 inch size and a high interrupting rating. It features a rejection design to prevent installation in incompatible fuse holders and offers current limiting characteristics for enhanced safety.
- Amperage: 2.5 A
- Voltage: 600 V AC
- Fuse Class: CC
- Fast-Acting Type
- Dimensions: 13/32 in x 1 1/2 in
- Interrupting Rating: 200,000 AIC
- Non-Indicating
- Rejection Design
- Current Limiting
- Mounting: Fuse Holder
- Series: ATMR
Specifications
- Part Number: ATMR2-1/2
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : ATMR
- Voltage : 600
- Amperage : 2
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 782001903855
- GTIN : 00782001903855
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL/CSA
