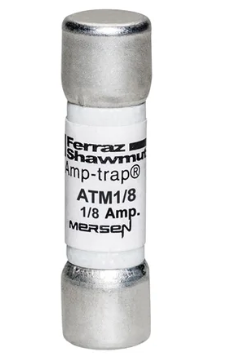

ATM1/8 - Mersen 0.125A 600V Midget Fast-Acting Fuse for Supplemental Protection

ATM1/8

ATM1/8 is a Mersen 0.125A 600V midget fast-acting fuse designed for supplemental protection of small motors, transformers, and circuits with high inrush currents. This cylindrical fuse features a 13/32" diameter and 1-1/2" length, making it suitable for a wide range of industrial and commercial applications. The ATM1/8 fuse is rated for 600V AC/DC and offers a 100,000A interrupting rating, ensuring reliable protection in demanding environments. It is UL listed to standard 248-14 and CSA certified to standard C22.2 No. 248.14, meeting the highest safety and performance requirements.

• Amperage Rating: 0.125A
• Voltage Rating: 600V AC/DC
• Poles: 1
• Mounting Type: Cylindrical
• Interrupt Rating: 100,000A
• Series/Frame: ATM
• Physical Size: 13/32" x 1-1/2"
• UL Listed: Yes (248-14)
• CSA Certified: Yes (C22.2 No. 248.14)
• Application: Supplemental protection for small motors, transformers, capacitors
• Special Features: Fast-acting, high inrush current protection
• Not for branch circuit protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATM1/8
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : ATM
• Voltage : 600
• Amperage : 1
• AIC rating : 100kA@600V
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1

Product Data

• UPC : 782001900632
• GTIN : 00782001900632
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 5
• Certification : CE
