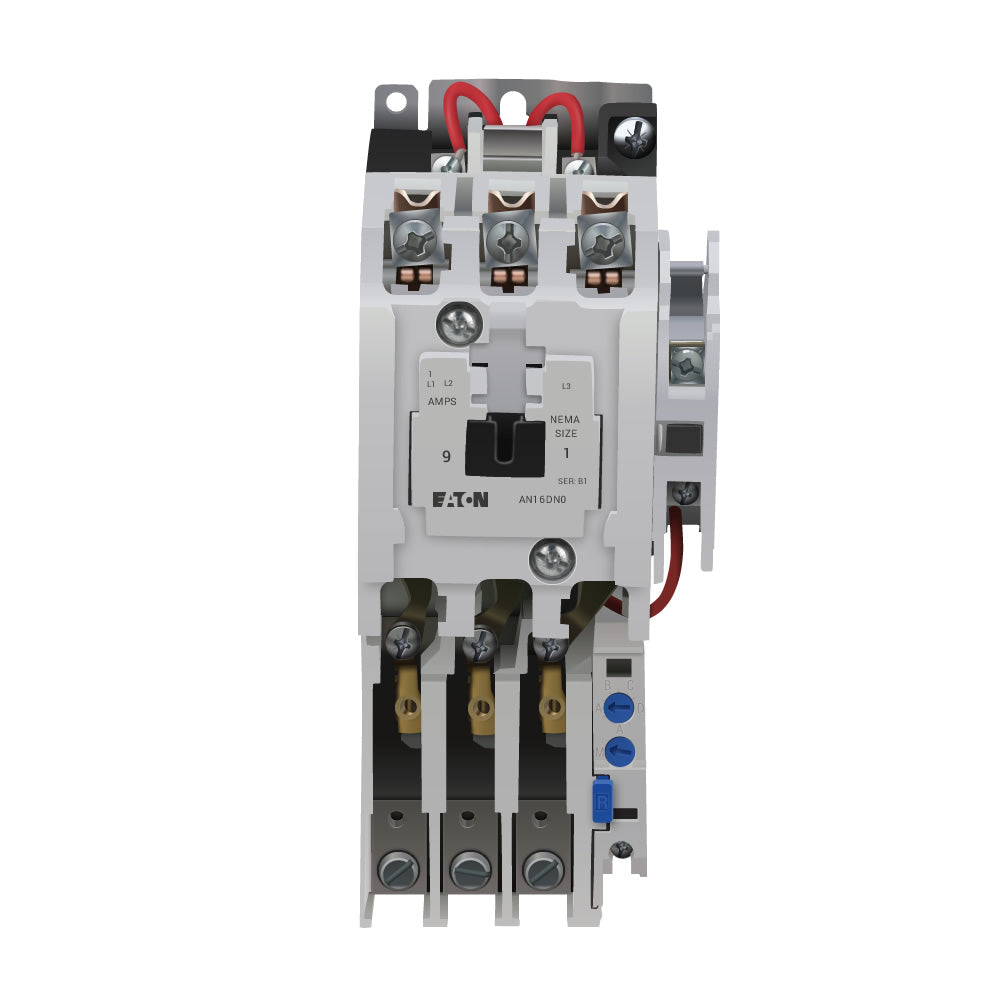

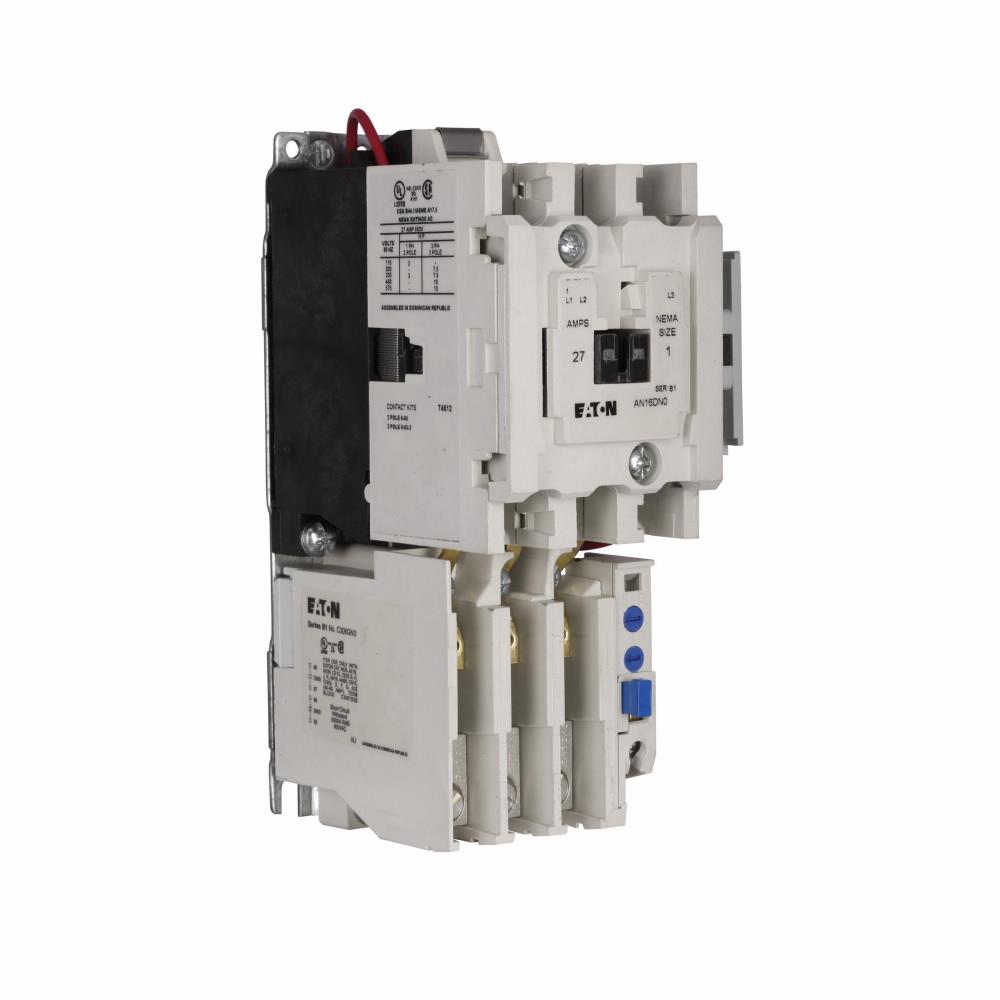

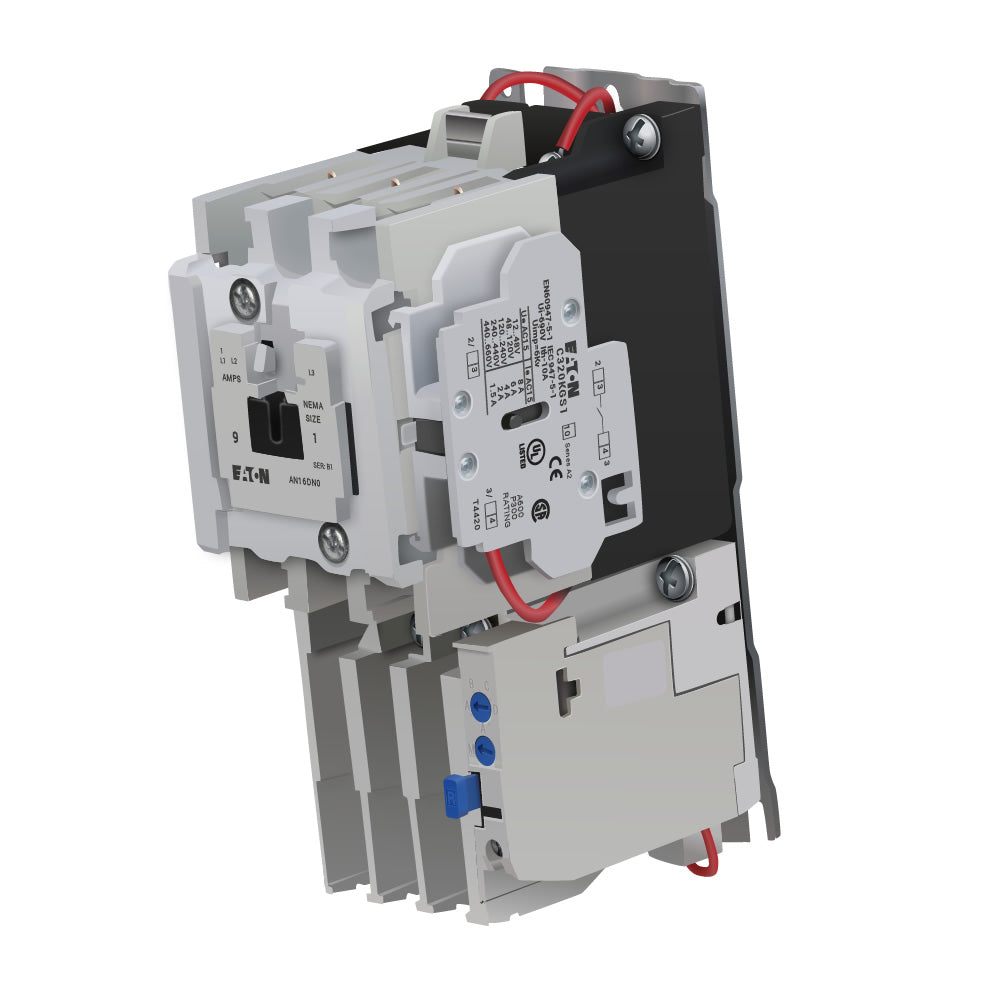

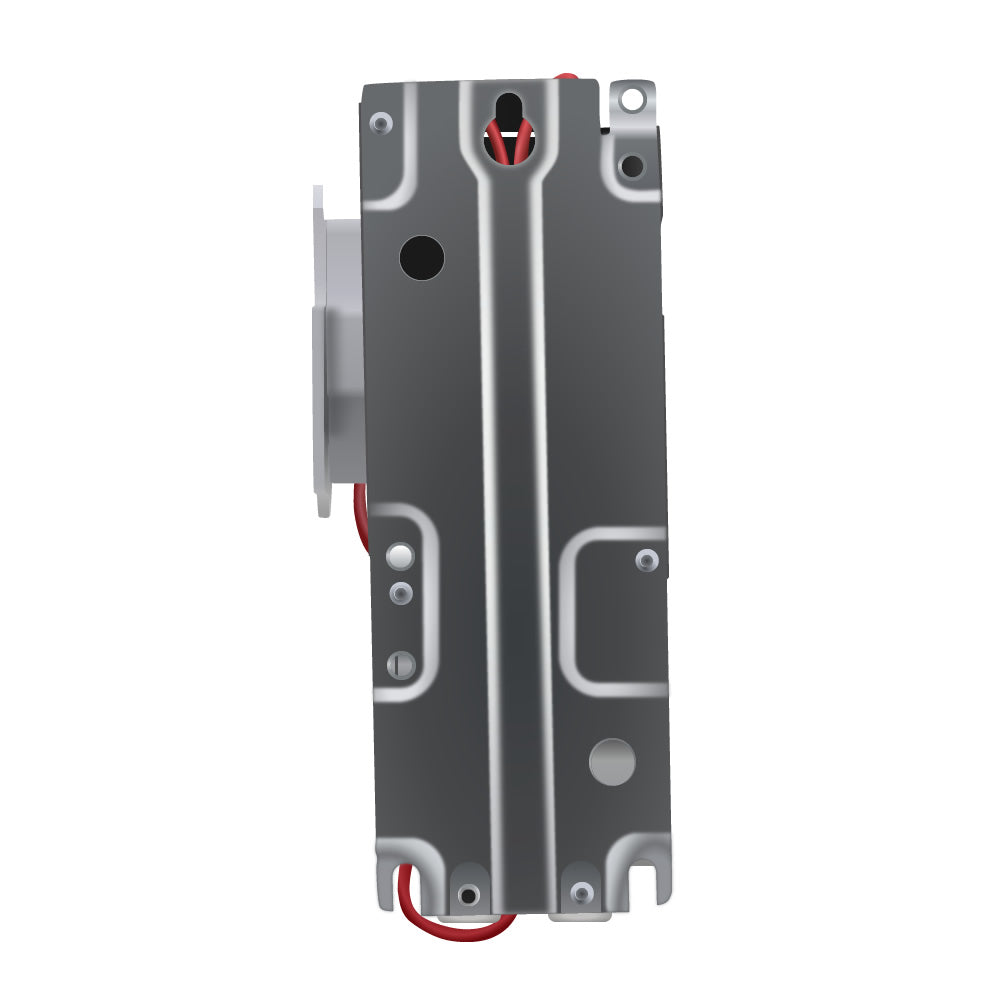

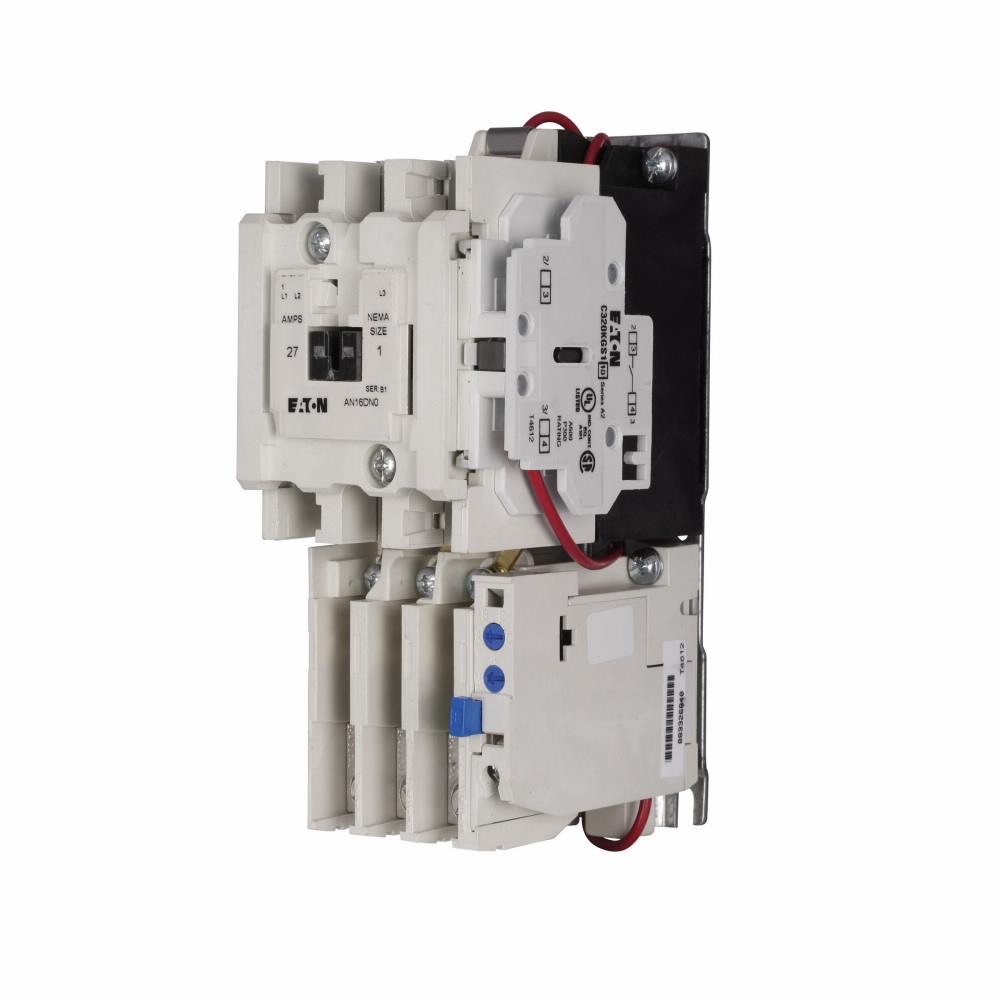

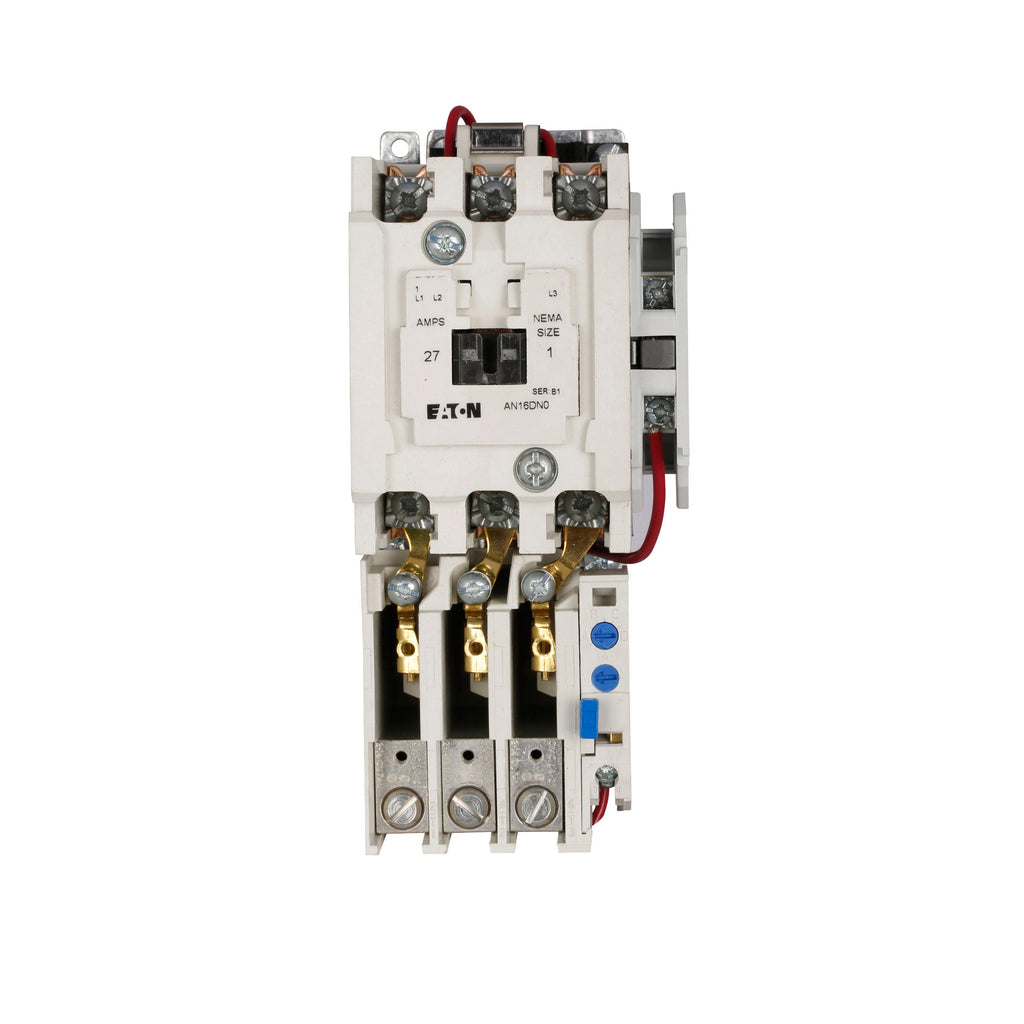

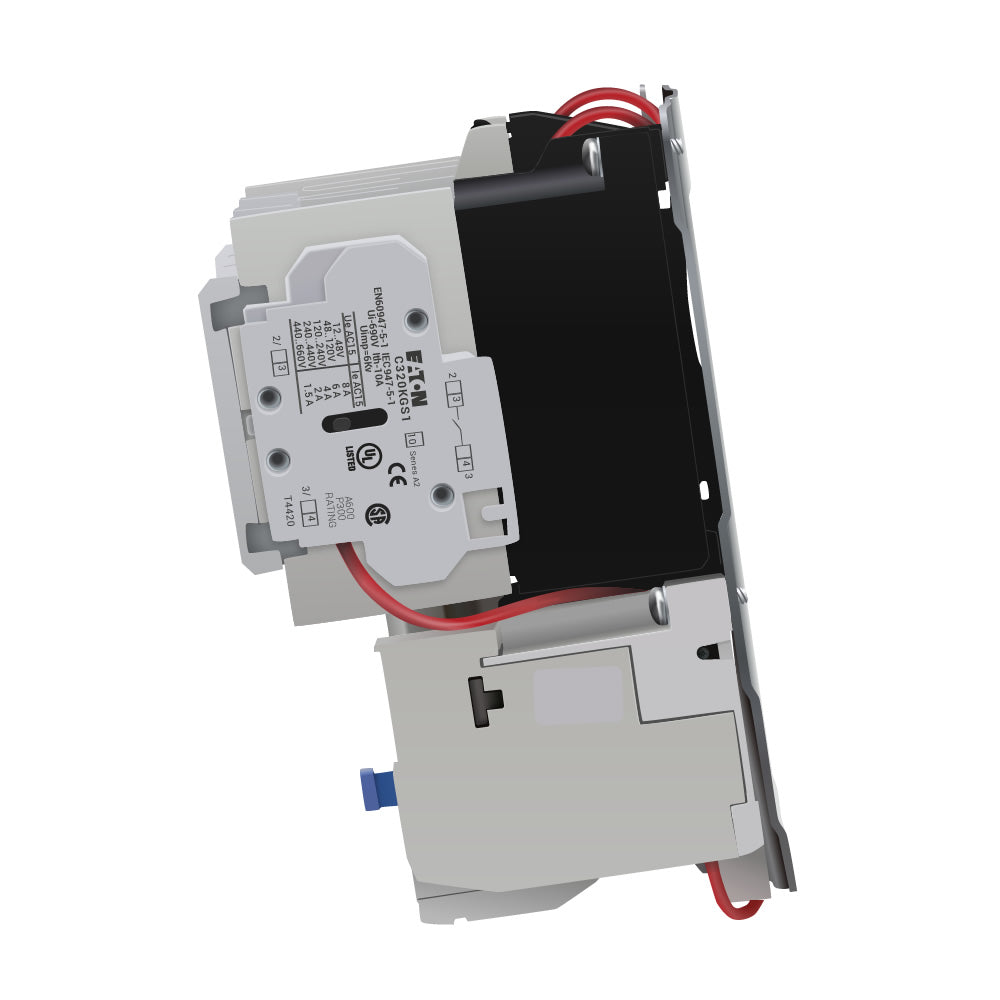

AN16DN0AB - Cutler Hammer 27A 3-Pole Freedom Series Motor Control Starter NEMA 1 Horizontal Mount

AN16DN0AB

AN16DN0AB is a Cutler Hammer Freedom Series motor control starter designed for non-reversing reset applications with a 27 amp rating.This Eaton Freedom NEMA motor control starter features a three-pole, size 1 design with horizontal mounting. It supports motor horsepower ratings of 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208/240V, and 10 hp at 480/600V. The coil voltage is 120V/60 Hz or 110V/50 Hz. It includes a C306 bi-metal overload relay and is CSA certified and UL listed. Heater packs are sold separately.

Key Specifications
• Amperage: 27A
• Voltage: 120V coil, supports up to 600V motor voltage
• Poles: 3
• Mounting Type: Horizontal
• Interrupt Rating: Standard for Freedom Series
• Series/Frame: Freedom Series, Size 1
• Trip Unit: C306 bi-metal overload relay
• Certifications: CSA Certified, UL Listed
• Enclosure: Open type, NEMA 1
• Weight: 2.6 lbs
• Dimensions (HxWxD): 3.31 x 4.38 x 4.61 inches
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: AN16DN0AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : Freedom Series
• Type : AN16
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Nema Rating : 1



Product Data

• UPC : 782113971704
• GTIN : 00782113971704
• Country of Origin : Dominican Republic
• Dimensions : 4.61 in x 3.31 in x 4.38 in (Length/Depth x Height x Width)
• Weight : 2.6 lb
• Certification : CSA Certified,UL Listed
