AL900MA - Square D 1000A Mechanical Lug Kit for MA, ME, MH, MX Circuit Breakers, Aluminum, 3/0 to 500 kcmil

AL900MA

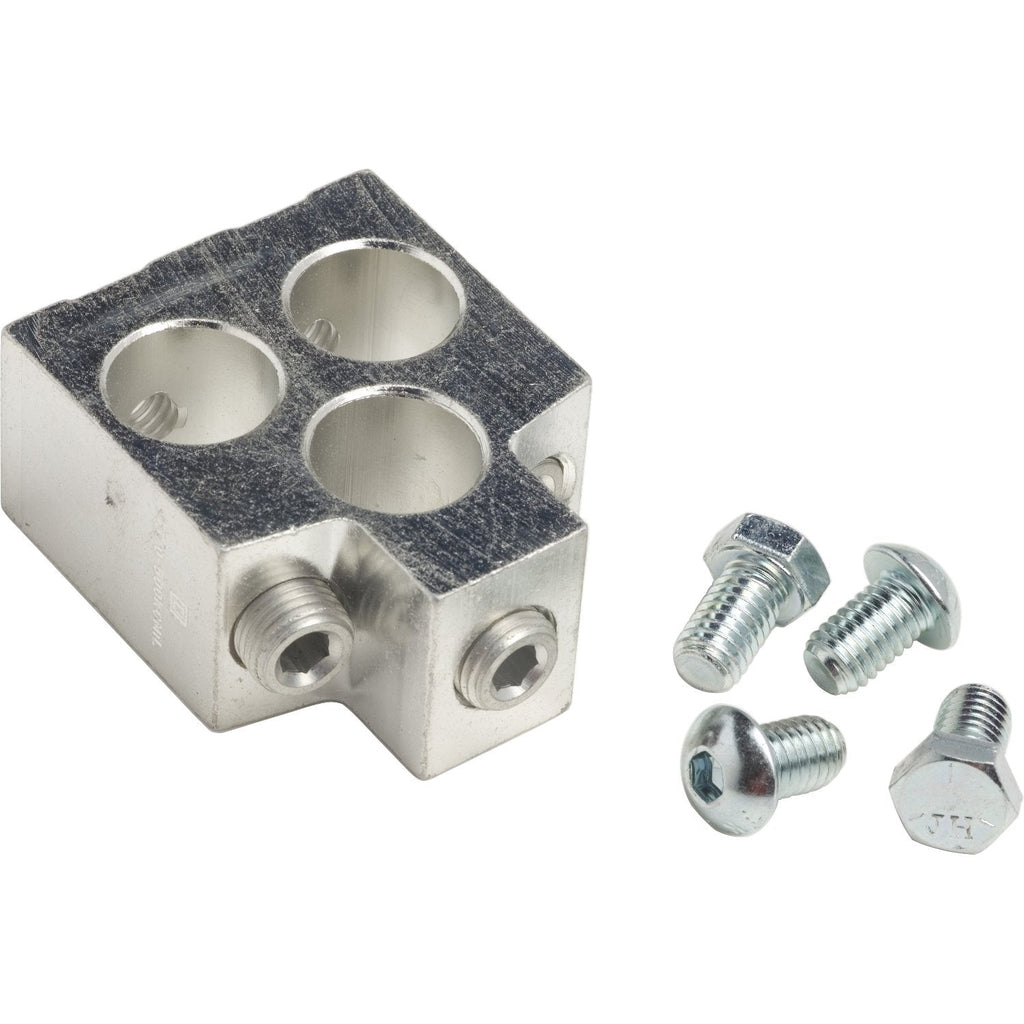

AL900MA is a Square D mechanical lug kit designed for use with MA, ME, MH, and MX series molded case circuit breakers rated up to 1000 Amps.This lug kit features tin-plated aluminum lugs compatible with both aluminum and copper conductors, supporting conductor sizes from 3/0 AWG to 500 kcmil. It is UL Listed and CSA certified, suitable for line and load side connections on unit mount circuit breakers. The kit includes one lug per package and is made in the USA.

• Manufacturer: Square D
• Part Number: AL900MA
• Amperage Rating: 1000 Amps
• Compatible Series: MA, ME, MH, MX
• Conductor Size Range: 3/0 AWG to 500 kcmil
• Conductor Material: Aluminum and Copper
• Lug Material: Tin-plated Aluminum
• Certifications: UL Listed, CSA Certified, RoHS Compliant
• Mounting Type: Mechanical lug kit for molded case circuit breakers
• Country of Origin: USA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: AL900MA
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Lug Terminal Kit
• Family : M Frame
• Type : AL
• Voltage : 600VAC
• Amperage : 1000
• MCM Size : 500
• Barrels : 3
• Metal Type : Aluminum
• Compatible Frames : MAL, MHL, MXL, MEL

Product Data

• UPC : 785901368755
• GTIN : 00785901368755
• Country of Origin : United States
• Dimensions : Depth 5.38 in (136.65 mm) x Width 5.64 in (143.26 mm)
• Weight : 0.7
• Wire Size : 3x AWG 3/0 to 500KCmil, Aluminum/Copper
