Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- ABB
- Sub-Category
- Contactor
- Series
- A-Line
- Frame
- AF09
- Rated current
- 25
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 250–500 V
- Auxiliary contacts
- 1 NO
- Coil Voltage Maximum
- 500
- Coil Voltage Minimum
- 250
- UPC
- 47152311004
- GTIN
- 03471523110045
Show all specifications (2 more)
- Dimensions
- Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight
- 0.68
Product description & additional details

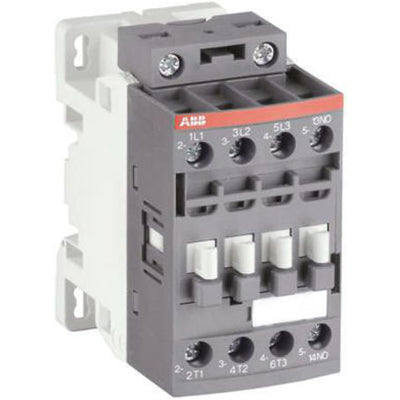

AF09-30-10-14
AF09-30-10-14 is a 3-pole motor contactor from ABB designed for controlling motors up to 4 kW at 400 V with a 9 A rated current and 690 V AC operational voltage.This contactor features a 3NO contact configuration with 1 auxiliary contact, screw terminals, and an IP20 enclosure rating. It supports coil voltages of 250 VAC and 500 VDC, operates at 50/60 Hz frequency, and is suitable for DIN rail mounting. The device is non-reversing with a thermal current rating of 16 A and an operating temperature range from -60 to 80 degrees Celsius. It is built for 3600 operating cycles and complies with IEC standards.
- Key Specifications
- Rated Current: 9 A
- Operational Voltage: 690 V AC
- Coil Voltage: 250 VAC / 500 VDC
- Number of Poles: 3
- Contact Configuration: 3NO + 1 Auxiliary Contact
- Mounting Type: DIN Rail
- Enclosure Rating: IP20
- Operating Frequency: 50/60 Hz
- Thermal Current: 16 A
- Operating Temperature: -60 to 80 °C
- Contact Type: Non-Reversing
- Dimensions: 86 mm H x 45 mm W x 77 mm D
Additional Information
This includes a 380 VDC coil.
Specifications
- Part Number: AF09-30-10-14
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF09
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 500
- Coil Voltage Minimum : 250
Product Data
- UPC : 47152311004
- GTIN : 03471523110045
- Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight : 0.68
