Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- ABB
- Sub-Category
- Contactor
- Series
- A-Line
- Frame
- AF09
- Rated current
- 25
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 48–130 V
- Auxiliary contacts
- 1 NO
- Country of origin
- France
- Coil Voltage Maximum
- 130
- Coil Voltage Minimum
- 48
- UPC
- 47152311002
Show all specifications (3 more)
- GTIN
- 03471523110021
- Dimensions
- Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight
- 0.6
Product description & additional details

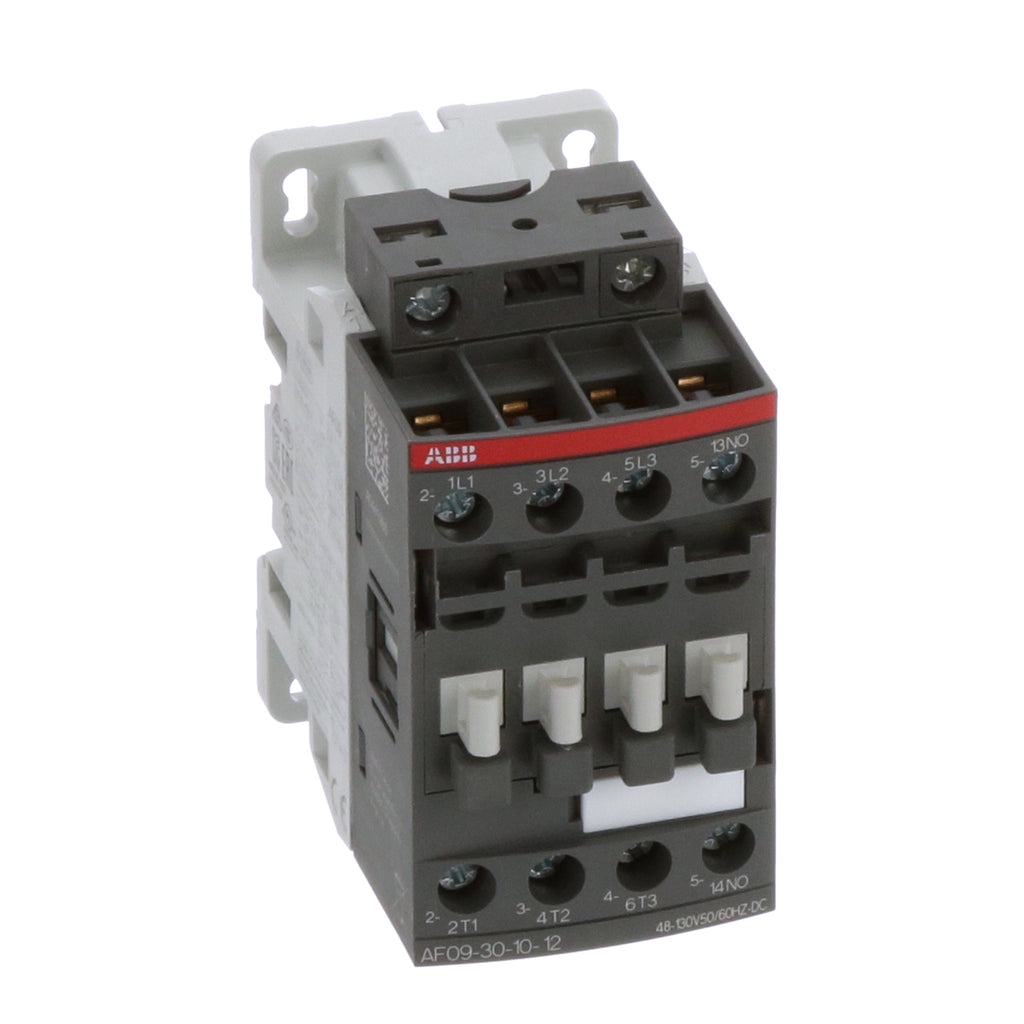

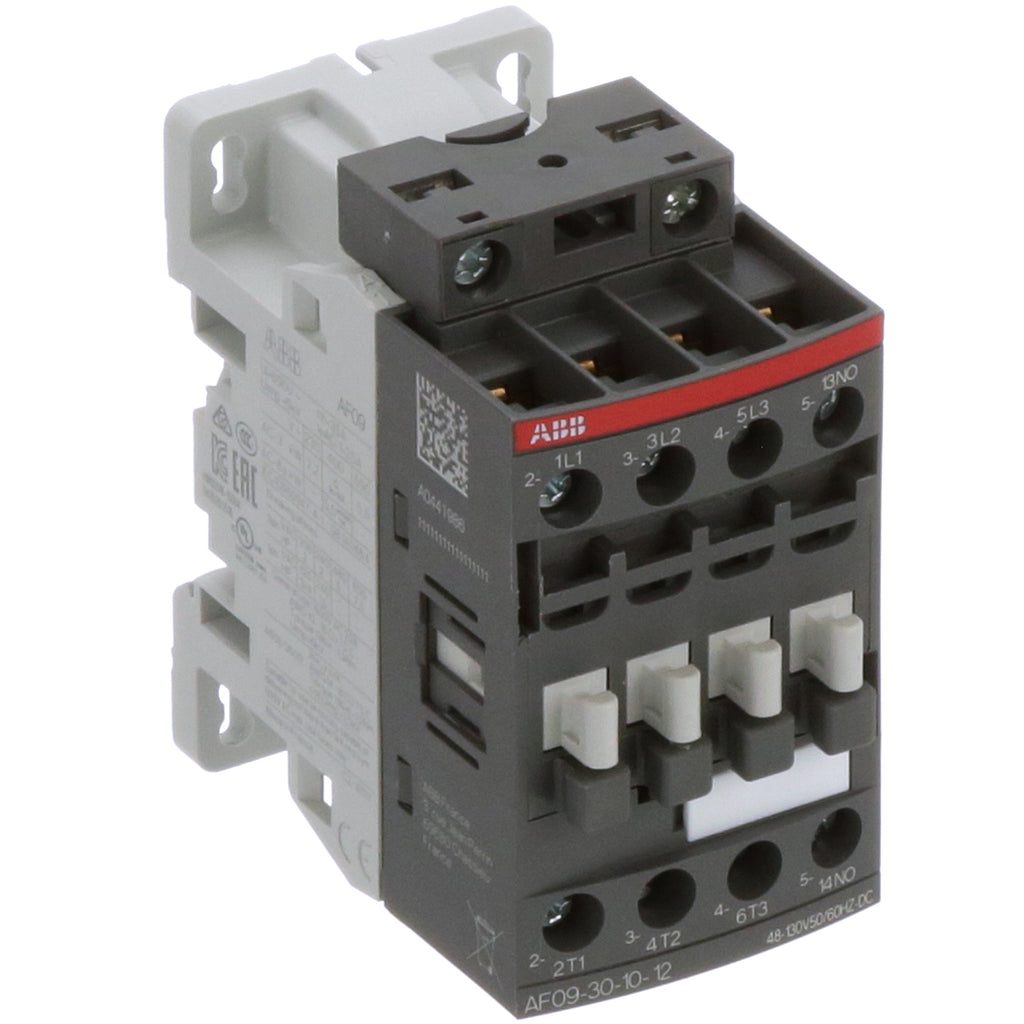

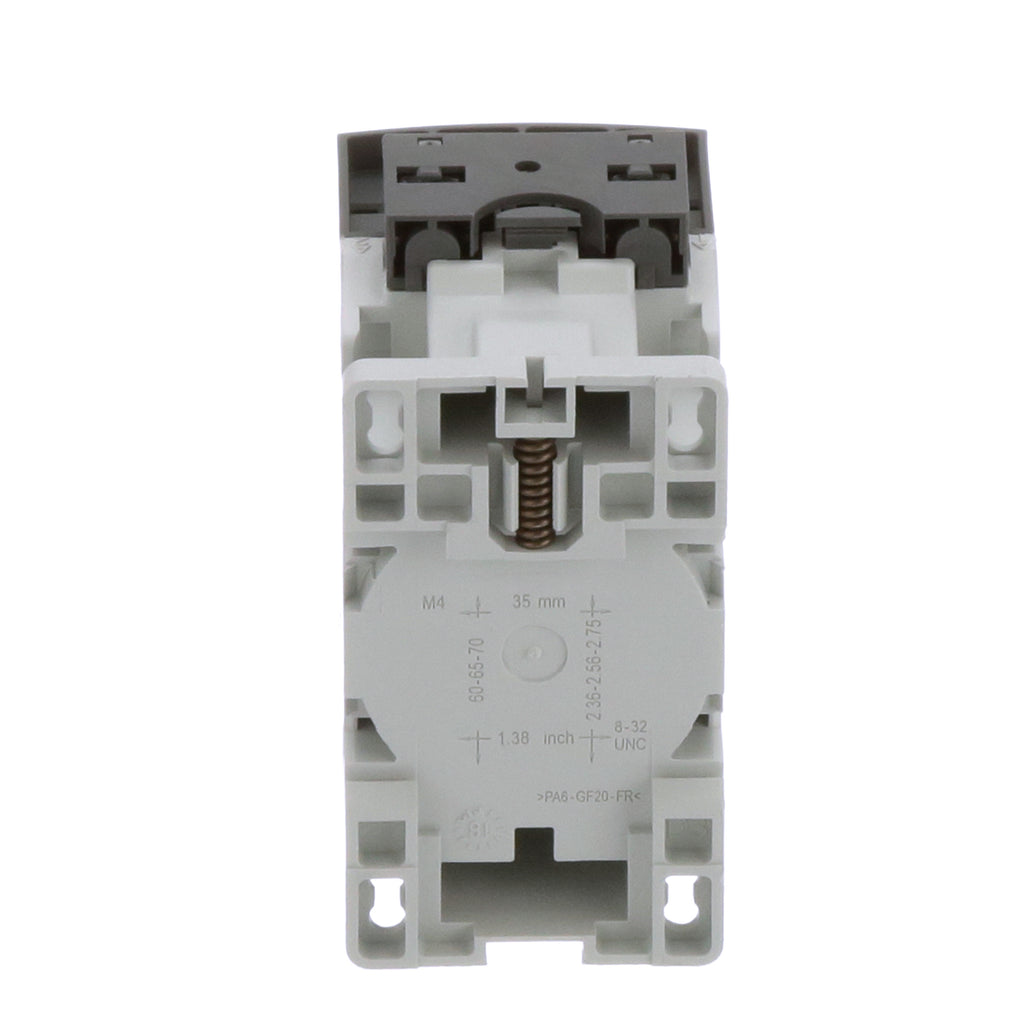

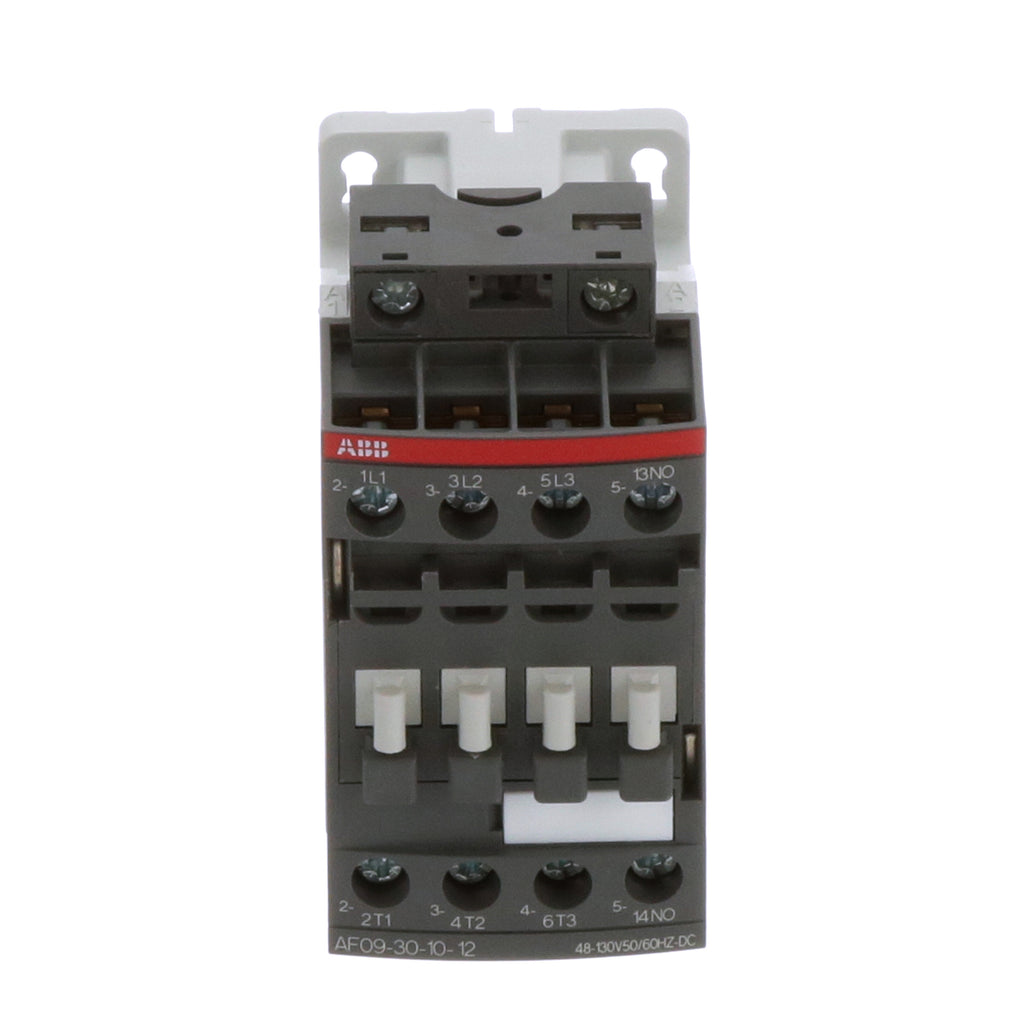

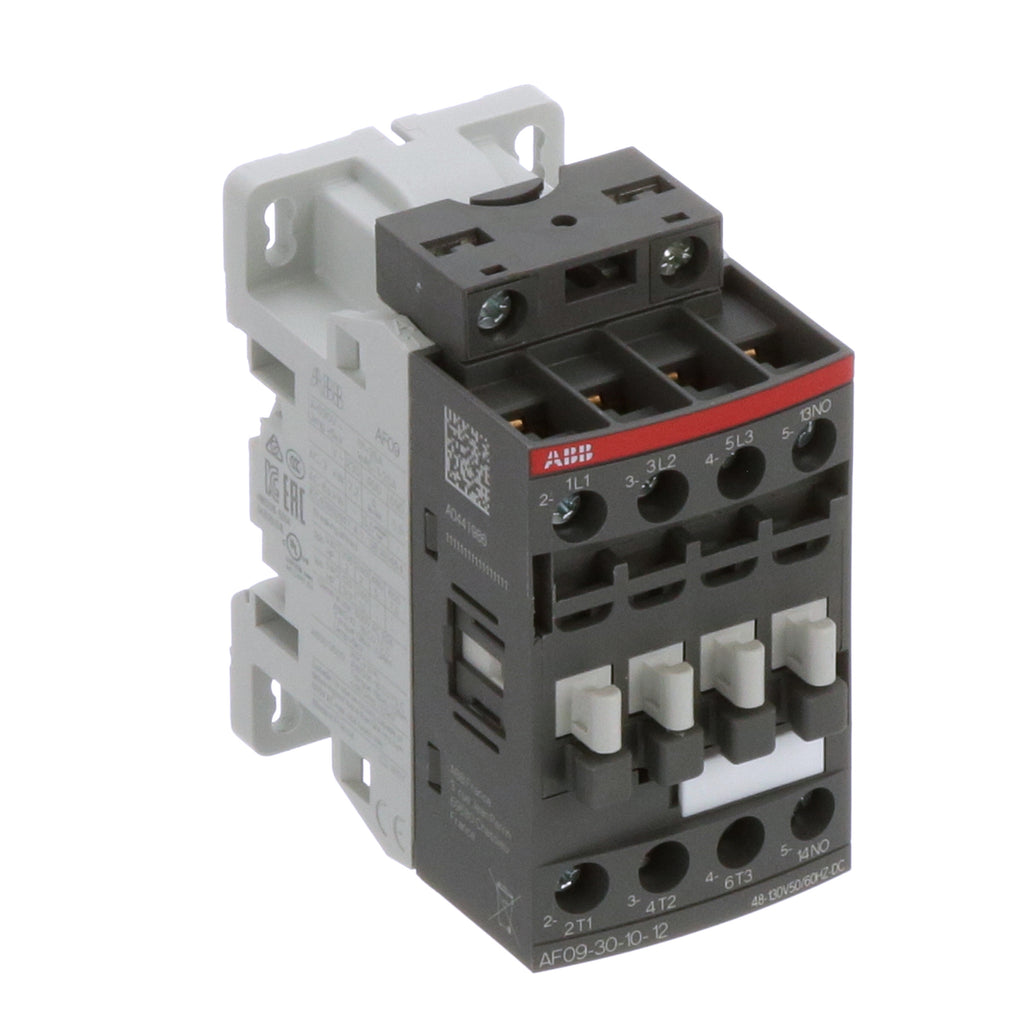

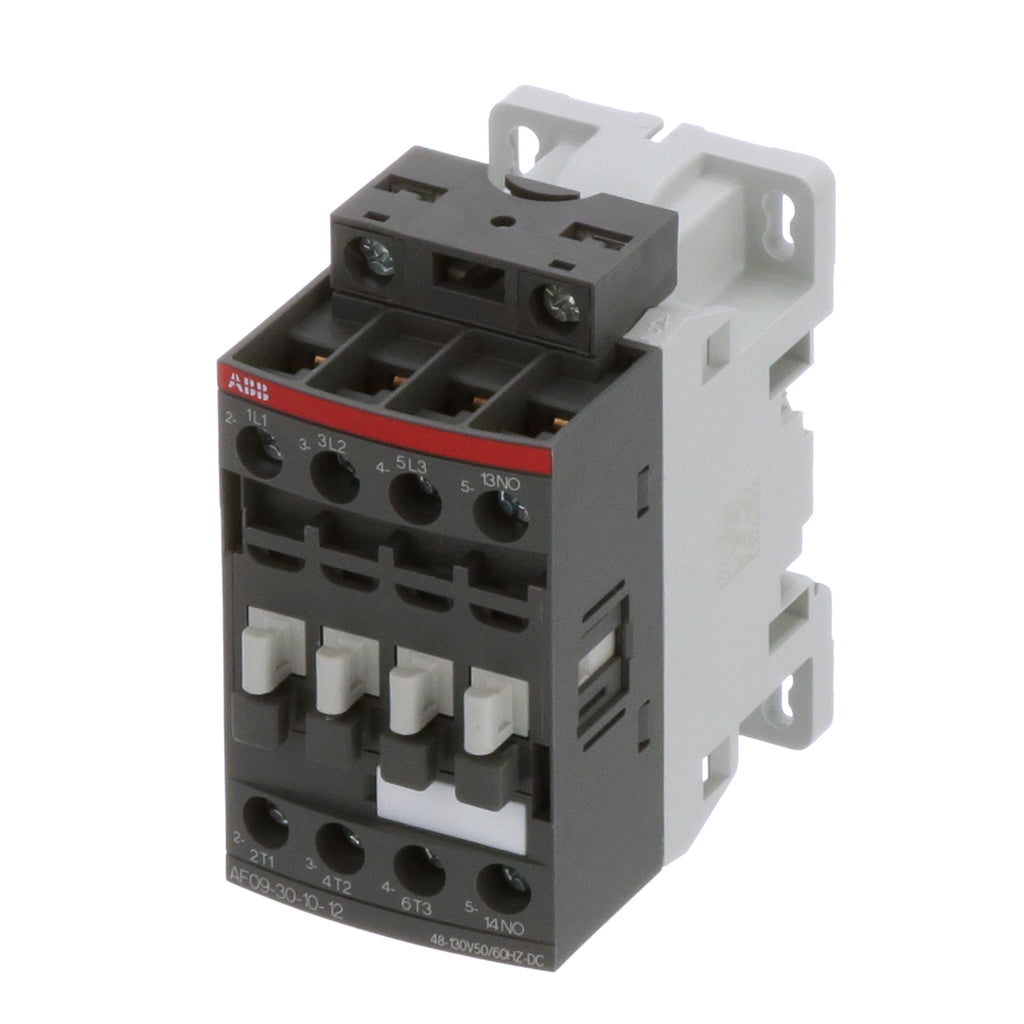

AF09-30-10-12
AF09-30-10-12 is a 3-pole motor contactor from ABB designed for controlling motors and power circuits up to 690 V AC with a 25 A current rating and 1 normally open auxiliary contact.This compact contactor features screw terminals and supports controlling 3-phase motors up to 4 kW at 400 V. It offers a reduced coil energy consumption for efficient operation and is suitable for industrial motor control applications requiring reliable switching.
- 3 poles with 1 NO auxiliary contact
- Rated current: 25 A
- Rated operational voltage: 690 V AC
- Suitable for 3-phase motor control
- Screw terminal connections
- Compact design with reduced coil power consumption
- Controls motors up to 4 kW at 400 V
- IEC and UL compliant
- Non-reversing contactor type
- Energy efficient coil design
Additional Information
This includes a 60 VAC coil.
Specifications
- Part Number: AF09-30-10-12
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF09
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 130
- Coil Voltage Minimum : 48
Product Data
- UPC : 47152311002
- GTIN : 03471523110021
- Country of Origin : France
- Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight : 0.6
