Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- ABB
- Sub-Category
- Contactor
- Series
- A-Line
- Frame
- AF09
- Rated current
- 25
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 100–250 V
- Auxiliary contacts
- 1 NO
- Country of origin
- France
- Coil Voltage Maximum
- 250
- Coil Voltage Minimum
- 100
- UPC
- 471523110031
Show all specifications (3 more)
- Dimensions
- 45 mm x 86 mm
- Weight
- 0.6
- Certification
- IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
Product description & additional details
AF09-30-10-13

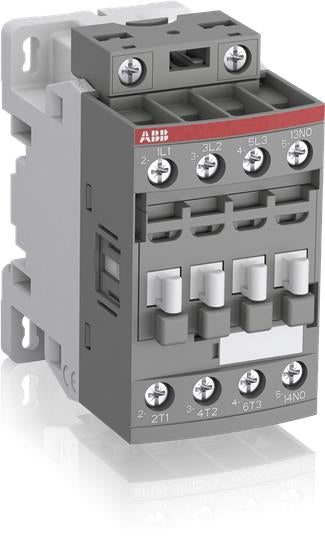

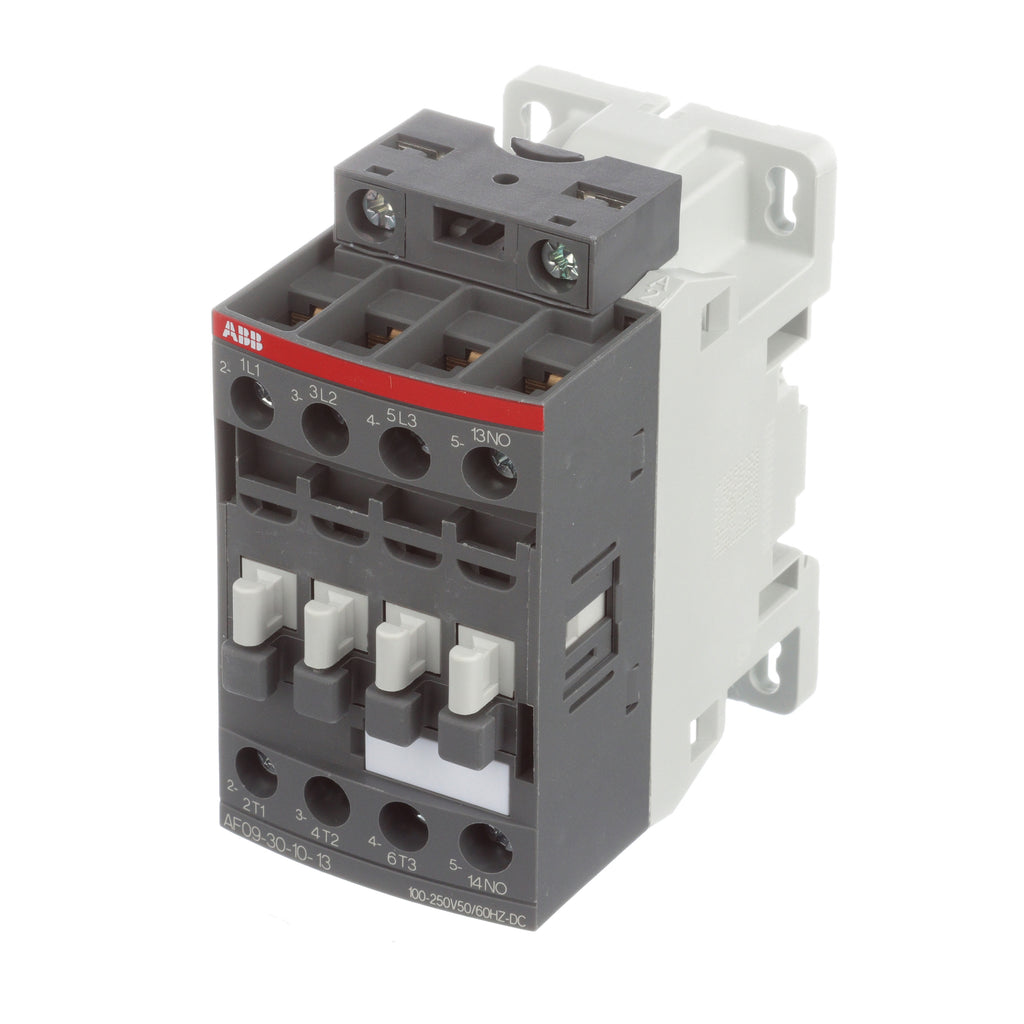

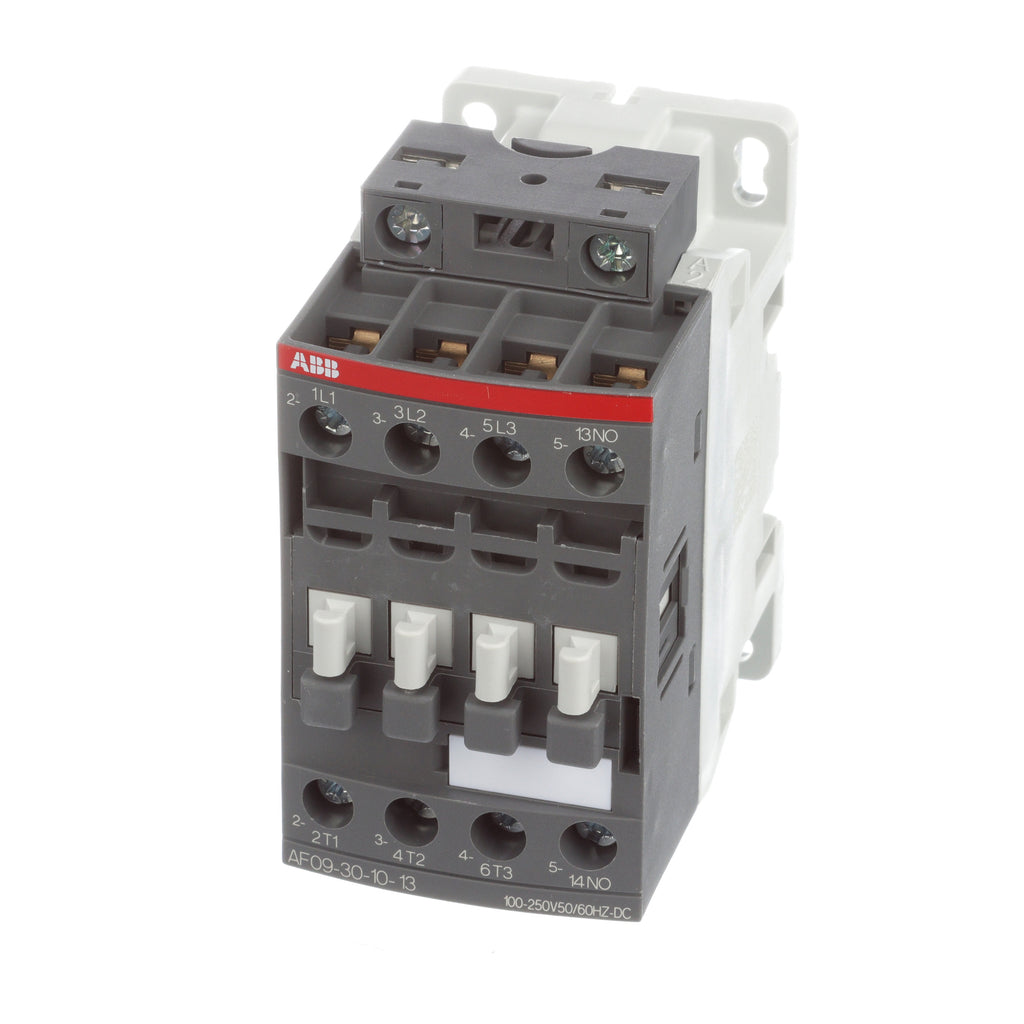

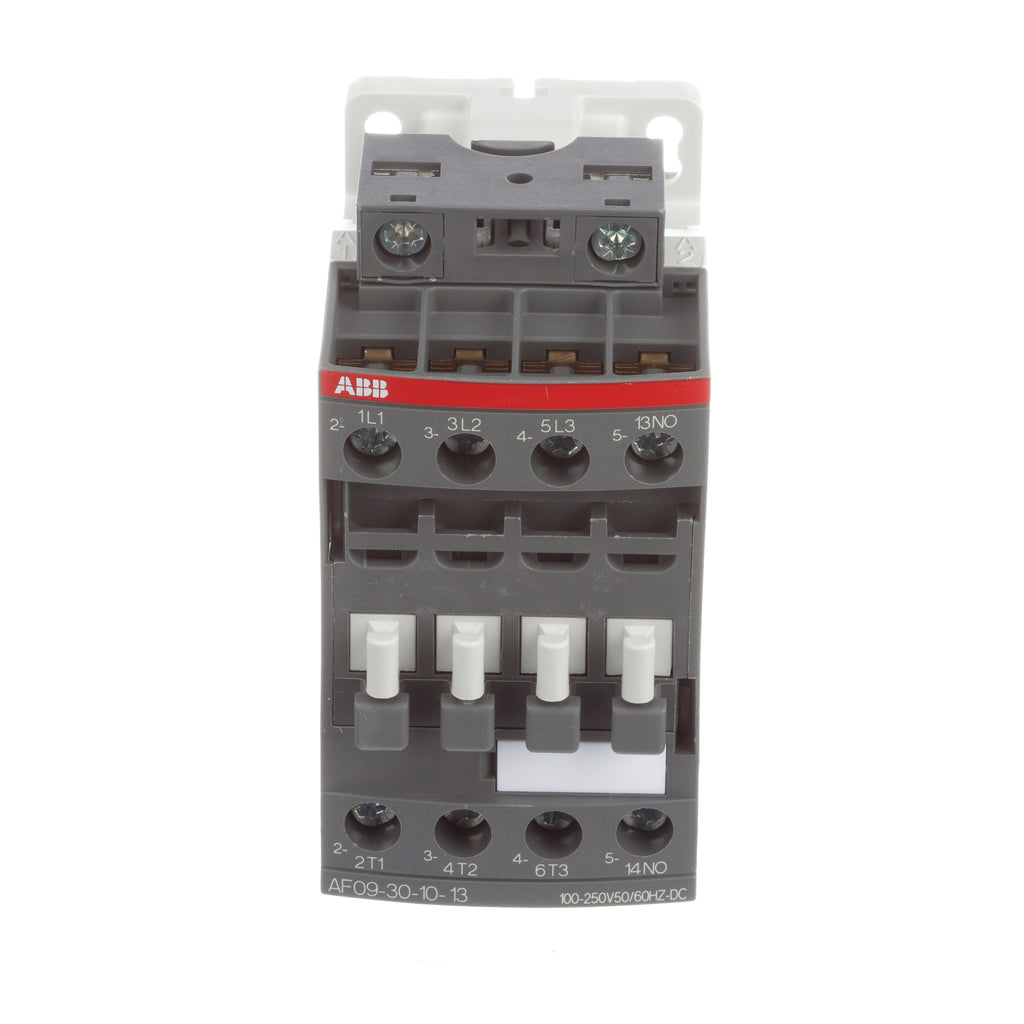

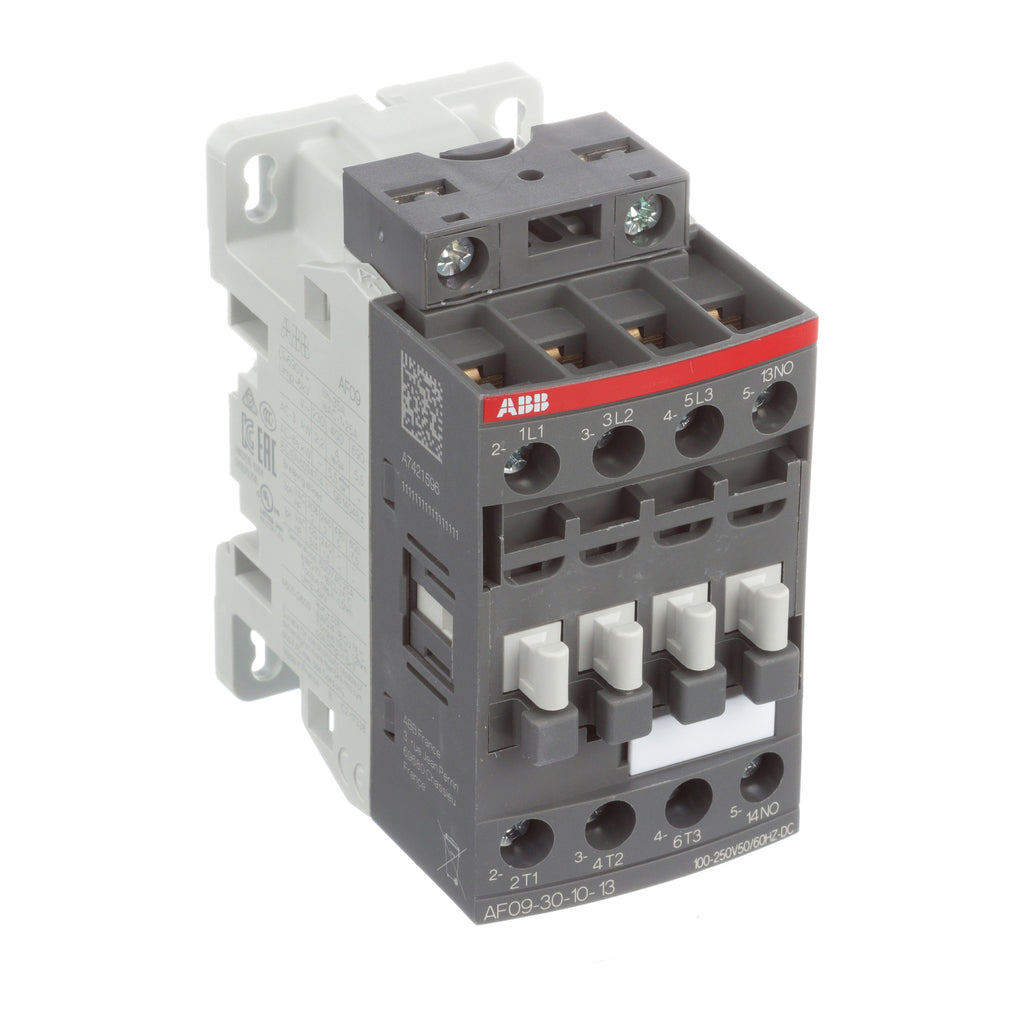

AF09-30-10-13 is a 3-pole motor contactor from ABB designed for controlling power circuits up to 690 V AC with a 25 A maximum load current and DIN rail mounting.This contactor features a 100-250 V AC/DC electronic coil, 3 normally open (3NO) main contacts, and 1 normally open (1NO) auxiliary contact. It supports motor control applications up to 4 kW at 400 V and is rated for 3600 operating cycles per hour. The device includes screw terminals, an IP20 enclosure, and operates reliably in temperatures from -60 to 80 degrees Celsius. It complies with IEC 60947-4-1 and UL/CSA standards.
- Brand: ABB
- Part Number: AF09-30-10-13
- Maximum Load Current: 25 A
- Rated Voltage: 690 V AC
- Poles: 3 (3NO)
- Auxiliary Contacts: 1NO
- Coil Voltage: 100-250 V AC/DC
- Mounting Type: DIN Rail
- Enclosure Type: IP20
- Terminal Type: Screw
- Operating Temperature: -60 to 80 °C
- Operating Cycles: 3600 per hour
- Certifications: cULus, IEC 60947-4-1
Additional Information
This includes a 250 VDC coil.
Specifications
- Part Number: AF09-30-10-13
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF09
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 250
- Coil Voltage Minimum : 100
Product Data
- UPC : 471523110031
- Country of Origin : France
- Dimensions : 45 mm x 86 mm
- Weight : 0.6
- Certification : IEC 60947-1/60947-4-1, EN 60947-1/60947-4-1, UL 508, CSA C22.2
