Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- ABB
- Sub-Category
- Contactor
- Series
- A-Line
- Frame
- AF09
- Rated current
- 25
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 250–500 V
- Auxiliary contacts
- 1 NC
- Coil Voltage Maximum
- 500
- Coil Voltage Minimum
- 250
- UPC
- 47152311014
- GTIN
- 03471523110144
Show all specifications (2 more)
- Dimensions
- Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight
- 0.68
Product description & additional details

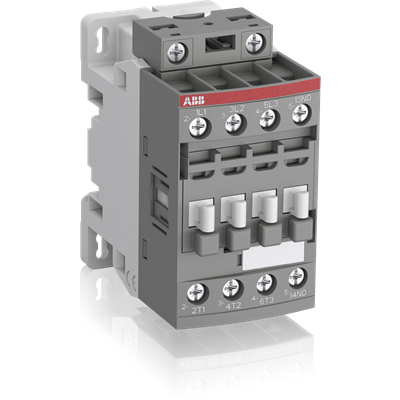

AF09-30-01-14
AF09-30-01-14 is a 3 pole IEC contactor from ABB designed for motor control applications with a 25 ampere rating and 690V AC coil voltage.This ABB AF09 series contactor features a non-reversing design suitable for controlling 3-phase motors up to 4 kW at 400V. It operates with a coil voltage range of 250 to 690 VAC/VDC, supports 3 normally open contacts plus 1 normally closed auxiliary contact, and includes screw terminal connections. The device is compact with IP20 enclosure rating and is rated for up to 10 million mechanical operating cycles.
- Key Specifications
- Amperage: 25 A maximum load current
- Voltage: Up to 690 V AC coil voltage
- Poles: 3 poles
- Contact Configuration: 3NO + 1NC auxiliary contact
- Mounting Type: Screw terminal connection
- Interrupt Rating: Suitable for motor control up to 4 kW / 7.5 hp
- Series/Frame: AF09 Series
- Trip Unit: Non-reversing contactor
- Enclosure Rating: IP20
- Operating Cycles: 10,000,000 mechanical cycles
- Operating Temperature: -60 to 80 °C
- Certifications: IEC compliant
Additional Information
This includes a 380 VDC coil.
Specifications
- Part Number: AF09-30-01-14
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF09
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NC
- Coil Voltage Maximum : 500
- Coil Voltage Minimum : 250
Product Data
- UPC : 47152311014
- GTIN : 03471523110144
- Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight : 0.68
