Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- ABB
- Sub-Category
- Contactor
- Series
- DP Series
- Frame
- DP
- Rated current
- 40
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 120 V
- Auxiliary contacts
- 3 NO
- Country of origin
- China
- Section
- Definite Purpose Contactor
- Horse Power
- 20
- Coil Voltage Maximum
- 120
Show all specifications (7 more)
- Full Load Amps
- Full Load Amps-Inductive 40A Full Load Amps-Resistive (600VAC)50A
- Frequency
- 50 Hz
- UPC
- 66201974945
- GTIN
- 00662019749457
- Dimensions
- 60.3 mm x 92 mm
- Weight
- 0.99
- Certification
- IEC 60947-4-1UL 508
Product description & additional details

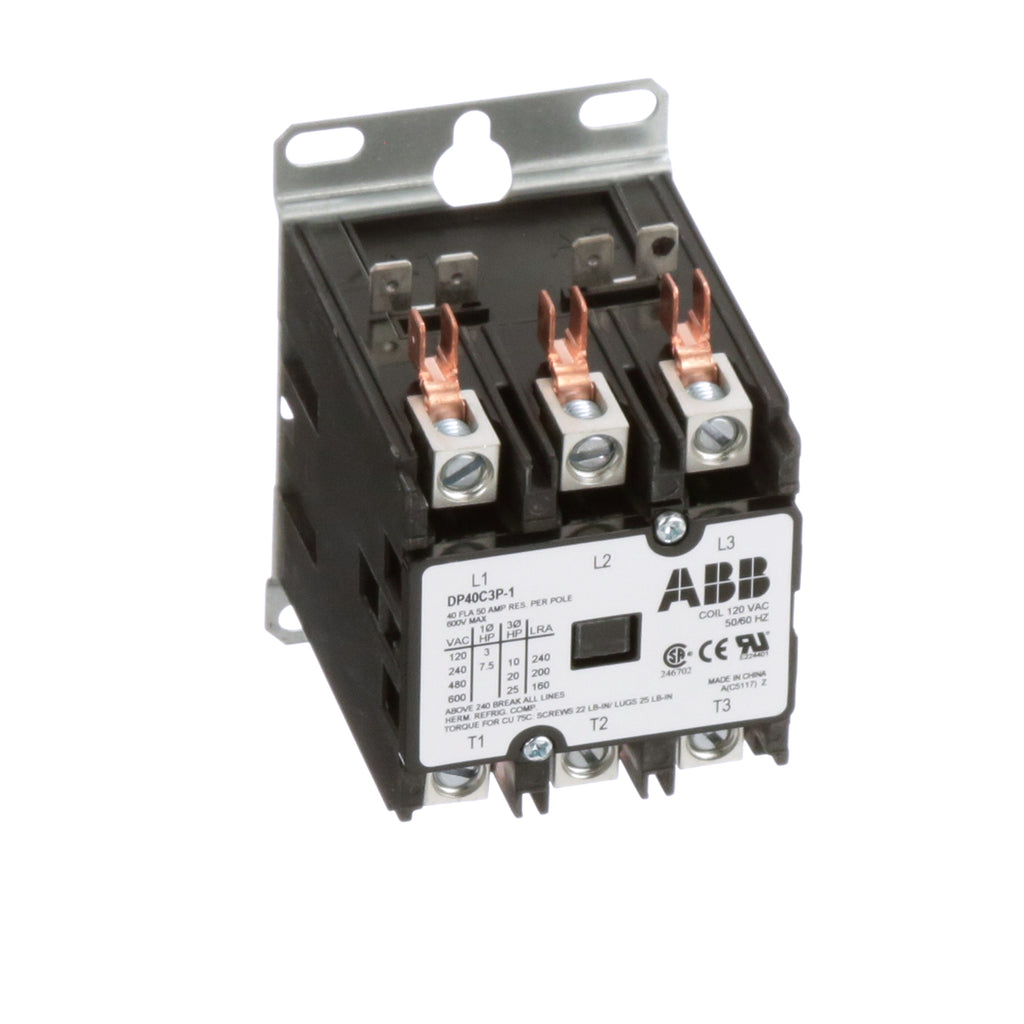

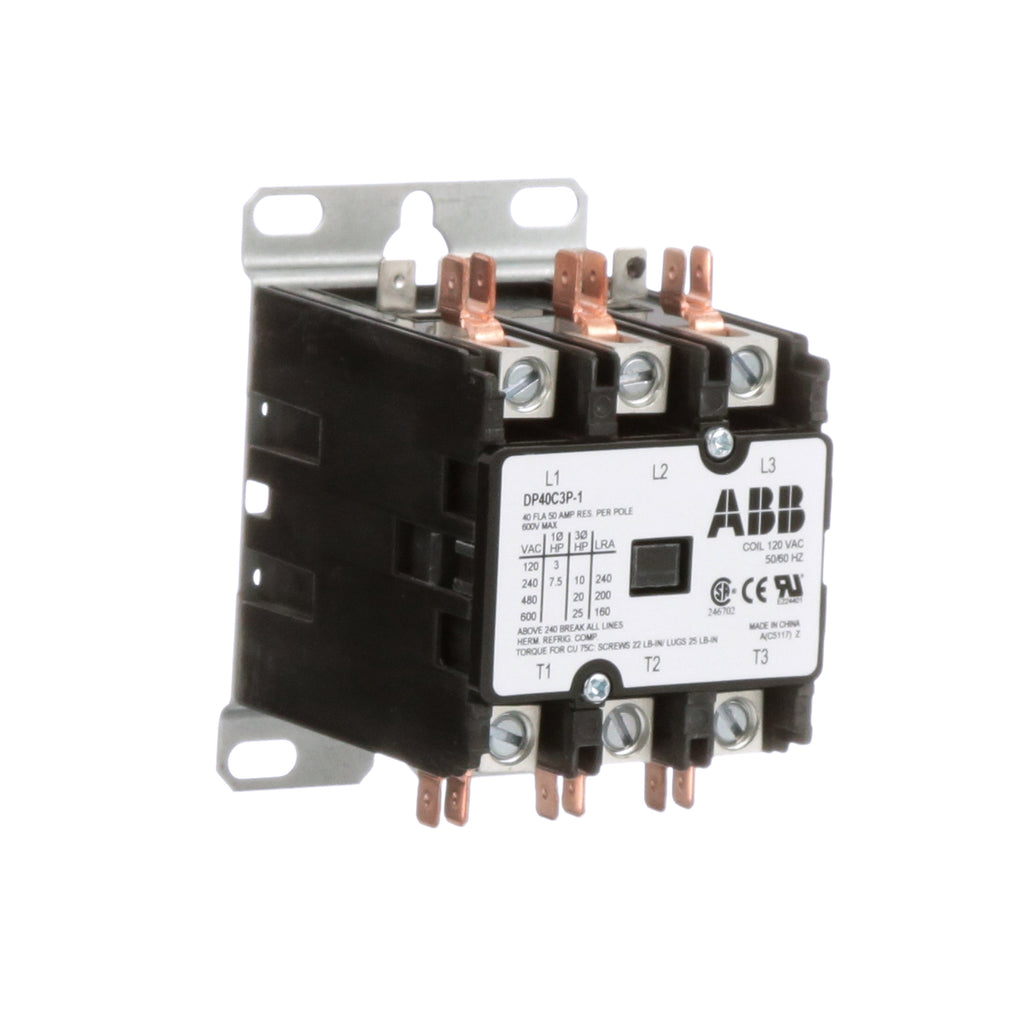

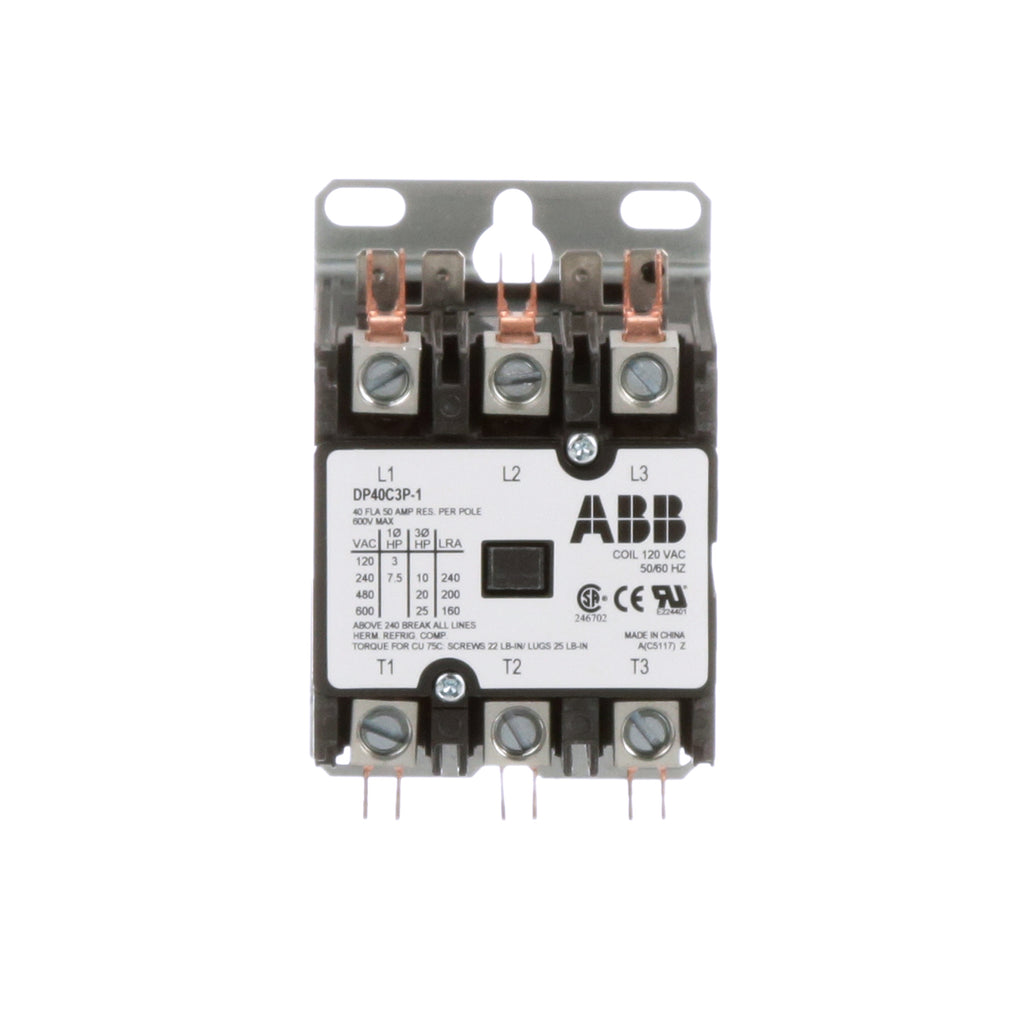

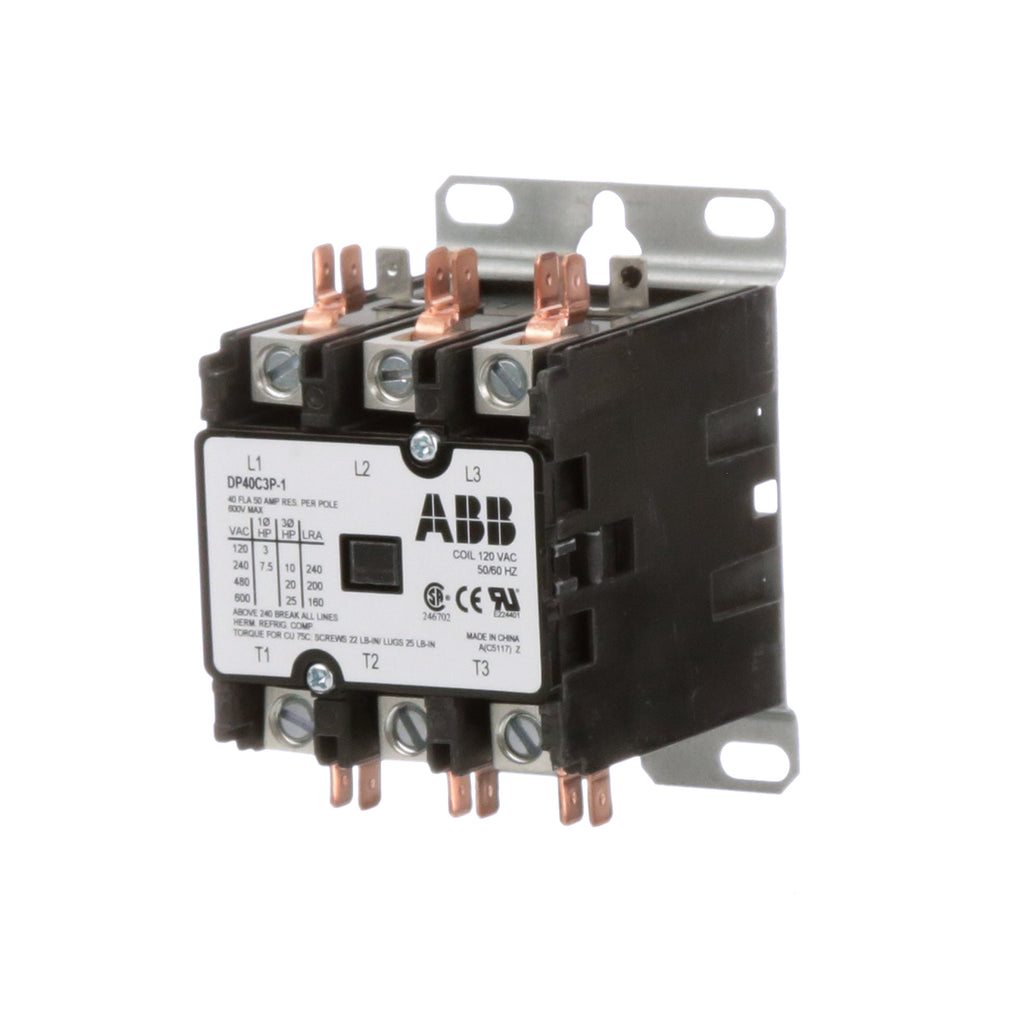

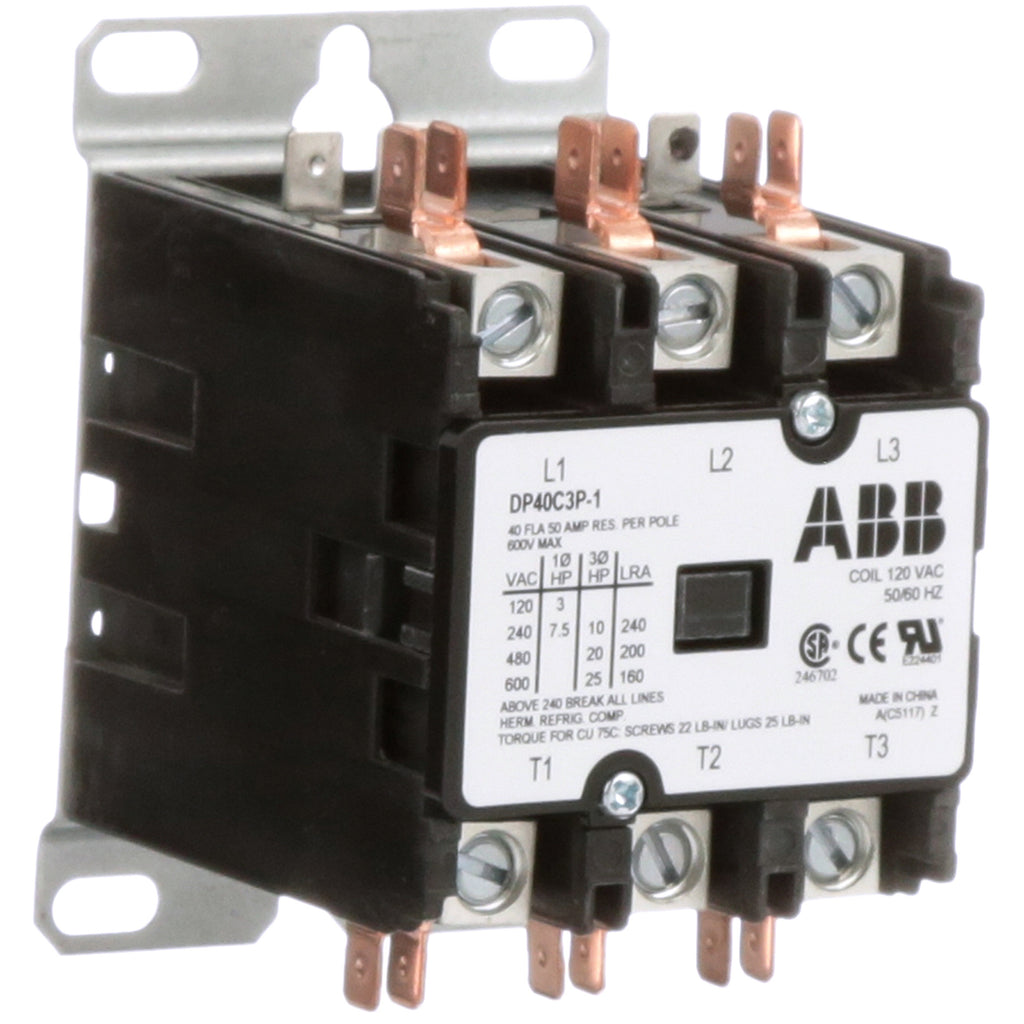

DP40C3P-1
DP40C3P-1 is a 40 amp, 3-pole definite purpose contactor with a 120V AC coil designed for reliable motor control applications.This ABB contactor features a 40 amp frame, three normally open poles, and supports conductor sizes from 16 to 8 AWG. It is suitable for HVAC, refrigeration, and other equipment requiring dependable switching. The device is UL/cUL certified (E224401) and designed for operating temperatures from -40 to +65 degrees Celsius. It includes #14-4 AWG lug terminations with dual quick connectors for easy installation.
- Amperage: 40 A
- Poles: 3 Pole (3 NO)
- Coil Voltage: 120 V AC
- Conductor Size: 16-8 AWG
- UL/cUL Certification: E224401
- Operating Temperature: -40 to +65 °C
- Insulation Class: 130 °C Class B
- Termination: #14-4 AWG lug with dual quick connectors
- Dimensions: 3.622" L x 2.37" W x 2.91" H
- Weight: 1 lb
Additional Information
This includes a 120 VAC coil.
Specifications
- Part Number: DP40C3P-1
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Section : Definite Purpose Contactor
- Family : DP Series
- Type : DP
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- Horse Power : 20
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 120
- Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive (600VAC)50A
- Frequency : 50 Hz
Product Data
- UPC : 66201974945
- GTIN : 00662019749457
- Country of Origin : China
- Dimensions : 60.3 mm x 92 mm
- Weight : 0.99
- Certification : IEC 60947-4-1UL 508
