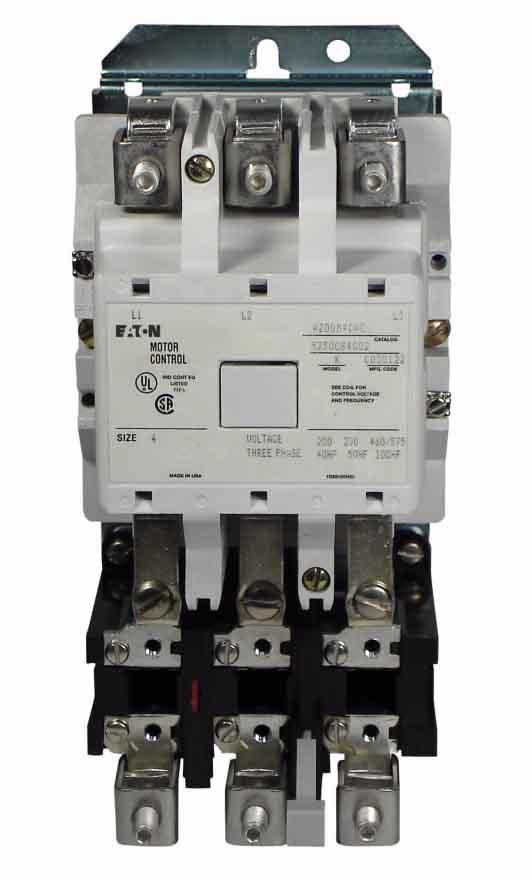

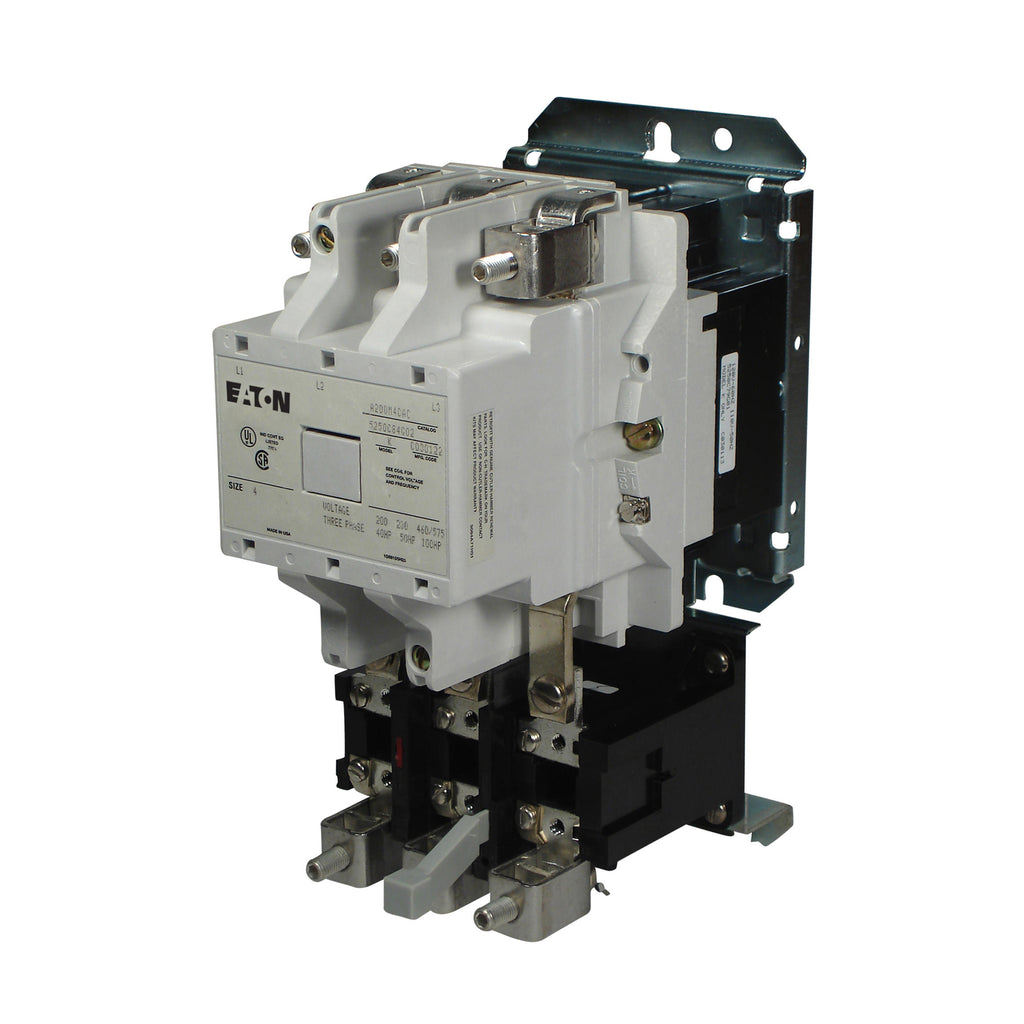

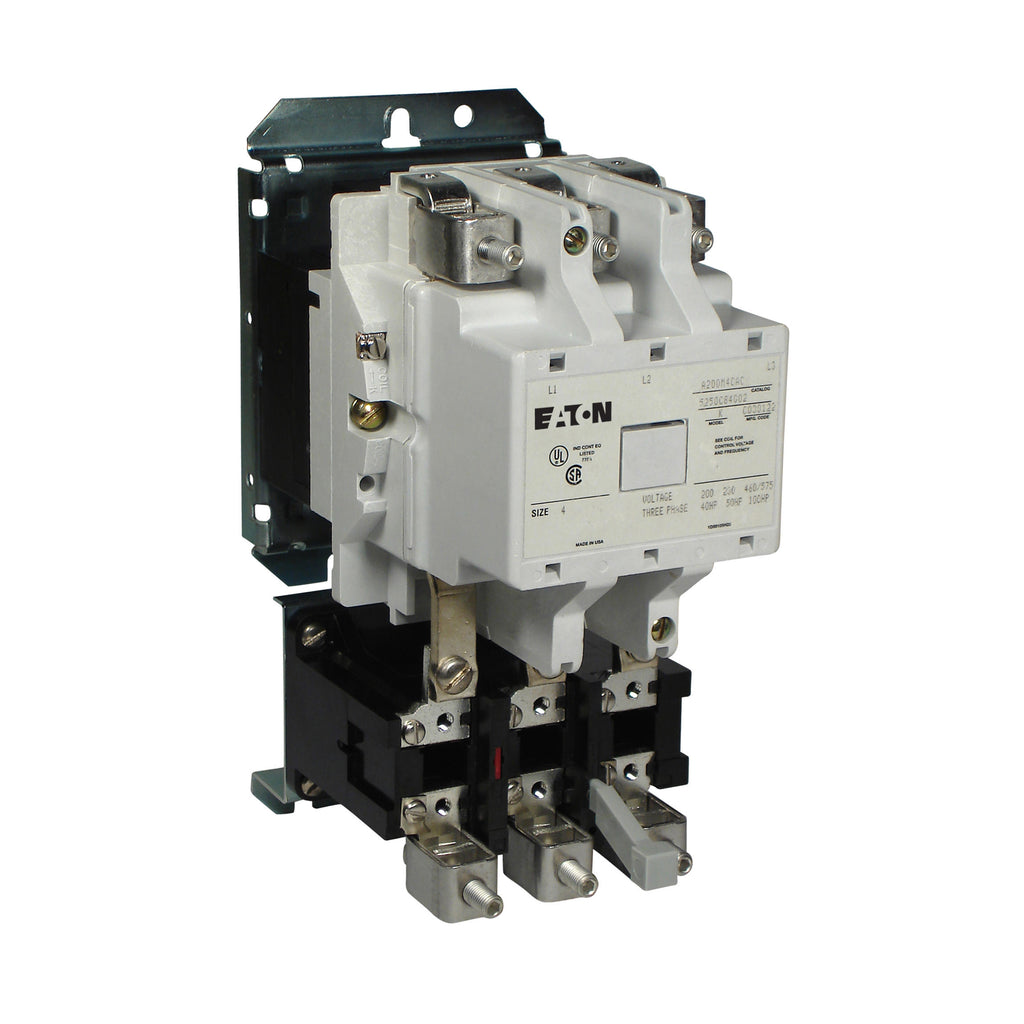

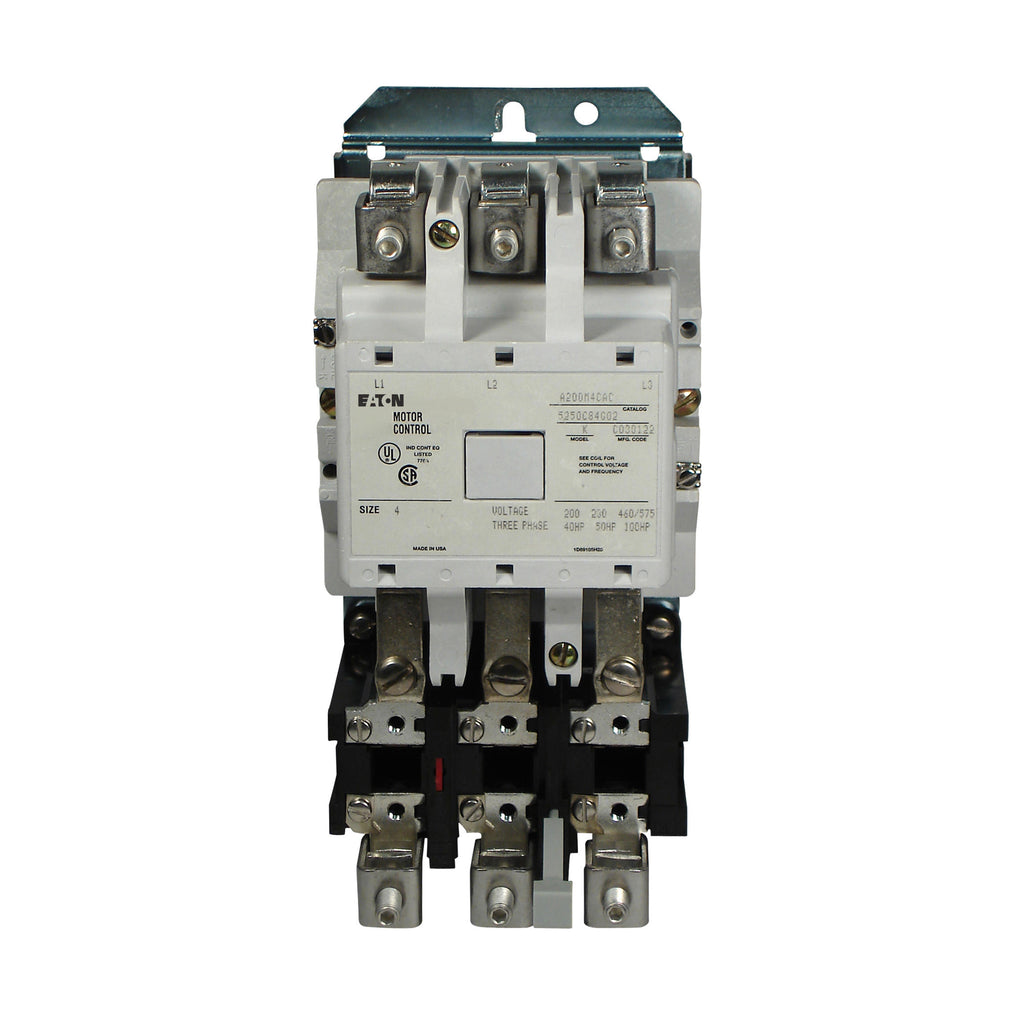

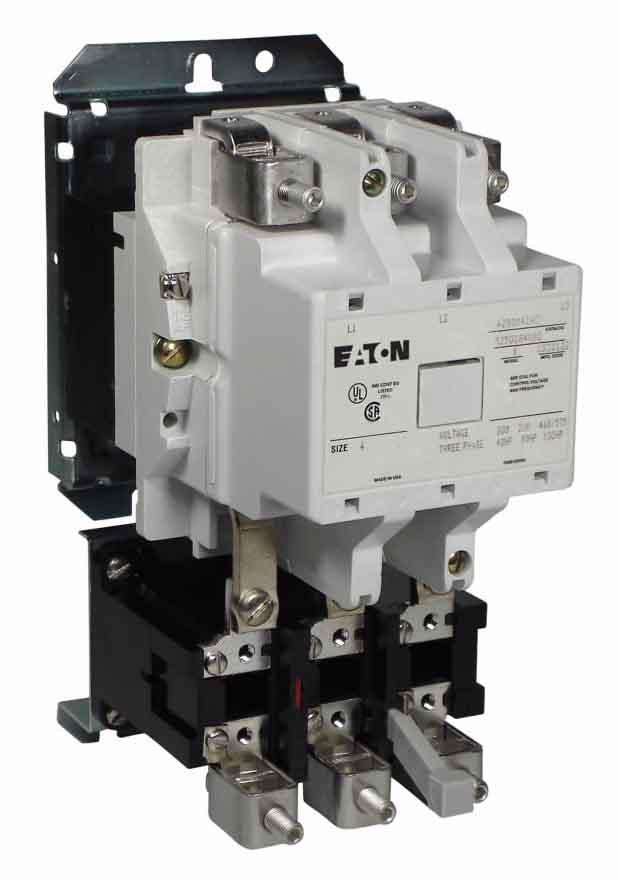

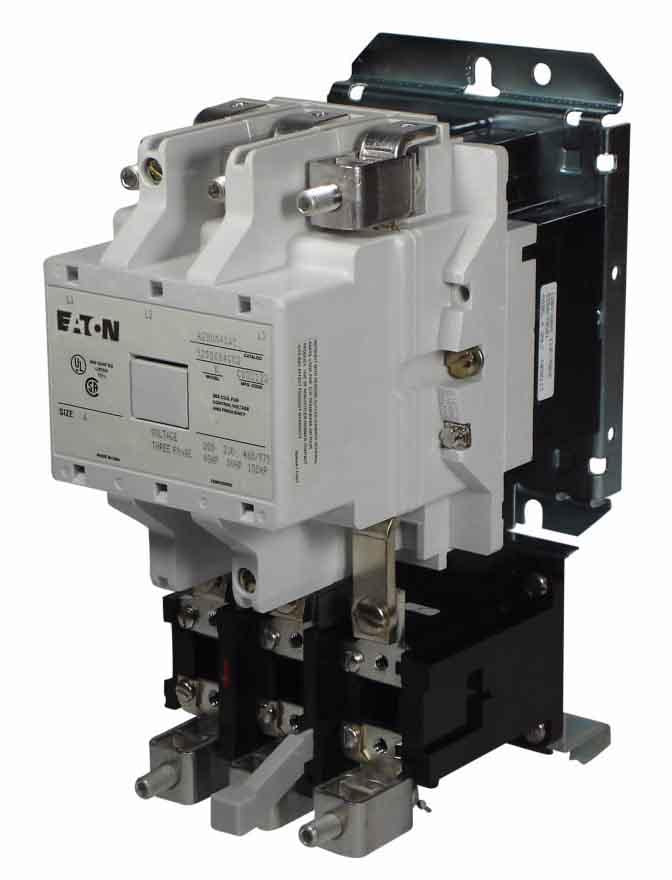

A200M4CB - Cutler Hammer 135A 600V 3 Pole Motor Starter A200 Series NEMA 4 Frame

A200M4CB

A200M4CB is a Cutler Hammer A200 Series motor starter designed for reliable motor control applications.This non-reversing motor starter features a 135 amp rating, 600V maximum voltage, and a 3-pole configuration with a 200-208V coil voltage. It is built on a Size 4 frame and supports up to 40 HP at 208V, 50 HP at 240V, and 100 HP at 480/600V. The starter complies with NEMA standards and is UL Listed and CSA Certified for safety and performance.

Key Specifications
• Manufacturer: Cutler Hammer
• Part Number: A200M4CB
• Amperage: 135A
• Voltage: 600V max
• Coil Voltage: 200-208V AC, 60 Hz
• Poles: 3
• Frame Size: 4 (A200 Series)
• Type: Non-Reversing Motor Starter
• Phase: 3-phase
• Mounting: NEMA 4
• Certifications: UL Listed, CSA Certified
• Horsepower Ratings: 40 HP at 208V, 50 HP at 240V, 100 HP at 480/600V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A200M4CB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Motor Starter
• Family : A200 Series
• Type : A200
• Voltage : 600
• Amperage : 135
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 208
• Coil Voltage Minimum : 200
• Nema Rating : 4

Product Data

• UPC : 786678048291
• GTIN : 00786678048291
• Country of Origin : Dominican Republic
• Dimensions : 6.75 in x 4.63 in x 6.63 in (Length/Depth x Height x Width)
• Weight : 9.3 lb
• Certification : CSA Certified,UL Listed
