9999SA2

9999SA2

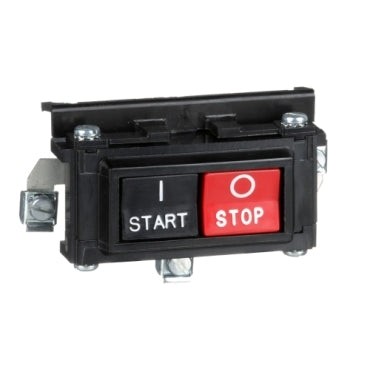

9999SA2 is a Schneider Electric start-stop push button kit designed for motor control applications with NEMA Size 00 starters and contactors.9999SA2 features a panel-mounted design compatible with Type S contactors and starters in NEMA sizes 00 to 4. It supports a 30 Amp rating and operates up to 600 Volts maximum. The kit includes a push button unit, wire harness, warning label, and wire clip for hinged-door enclosures. It meets UL 508 standards for inductive control circuits and is UL and CSA listed.

• Amperage: 30 Amp
• Voltage: Up to 600 V maximum
• Poles: NEMA Size 00 to 4 compatibility
• Mounting Type: Panel-mounted
• Interrupt Rating: 3 A at 120 V AC inductive control circuit
• Series/Frame: Type S, Class 9999
• Trip Unit: Start-Stop push button
• Certifications: UL 508, UL Listed, CSA Certified
• Includes wire harness, warning label, and wire clip
• Designed for NEMA 1 enclosures
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9999SA2
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Pushbuttons
• Family : Class 9999
• Type : 9999
• Amperage : 30
• Nema Starter Size : 0

Product Data

• UPC : 785901867234
• GTIN : 00785901867234
• Country of Origin : Mexico
• Dimensions : 1.02 in (25.8 mm) x 2.6 in (65.5 mm) x 24.0 in (609.6 mm) (Height x Width x Depth)
• Weight : 0.38
• Certification : UL, CSA
