8910DPA43V02

8910DPA43V02

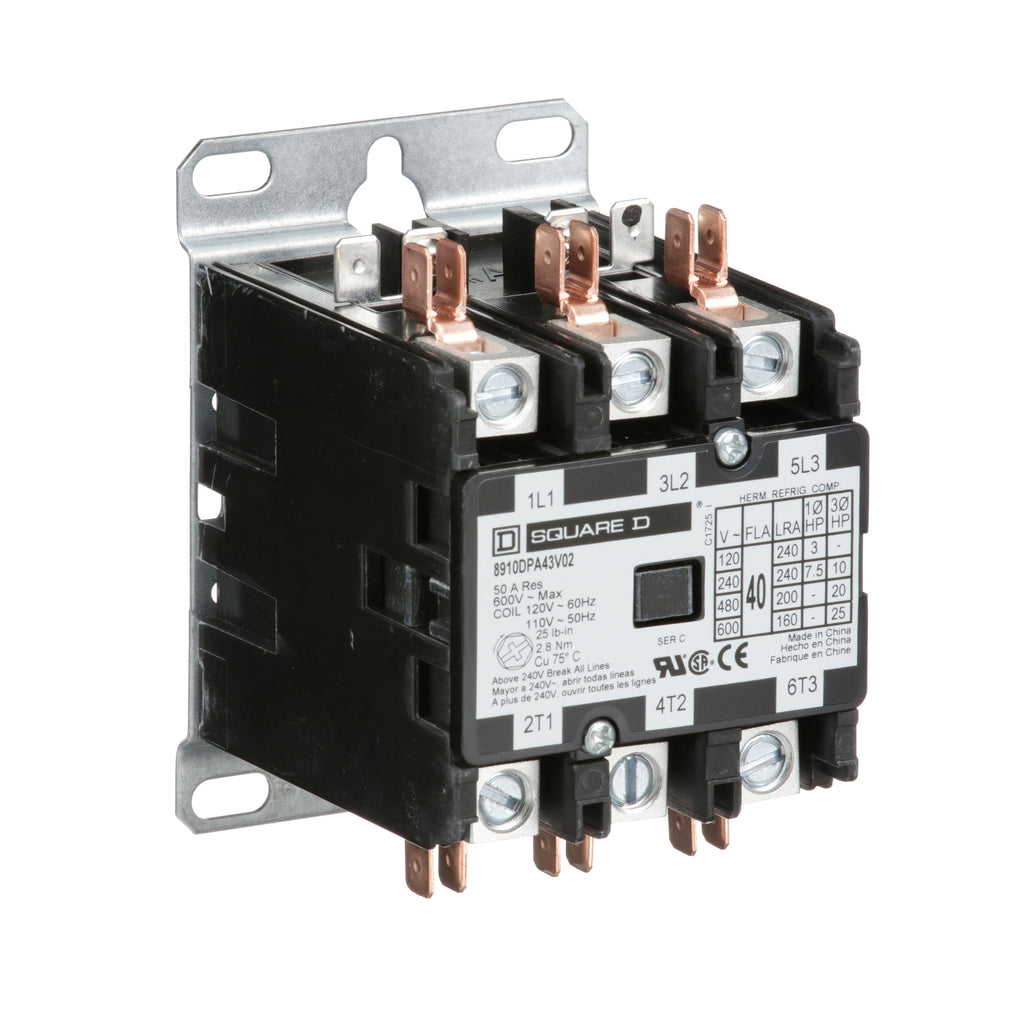

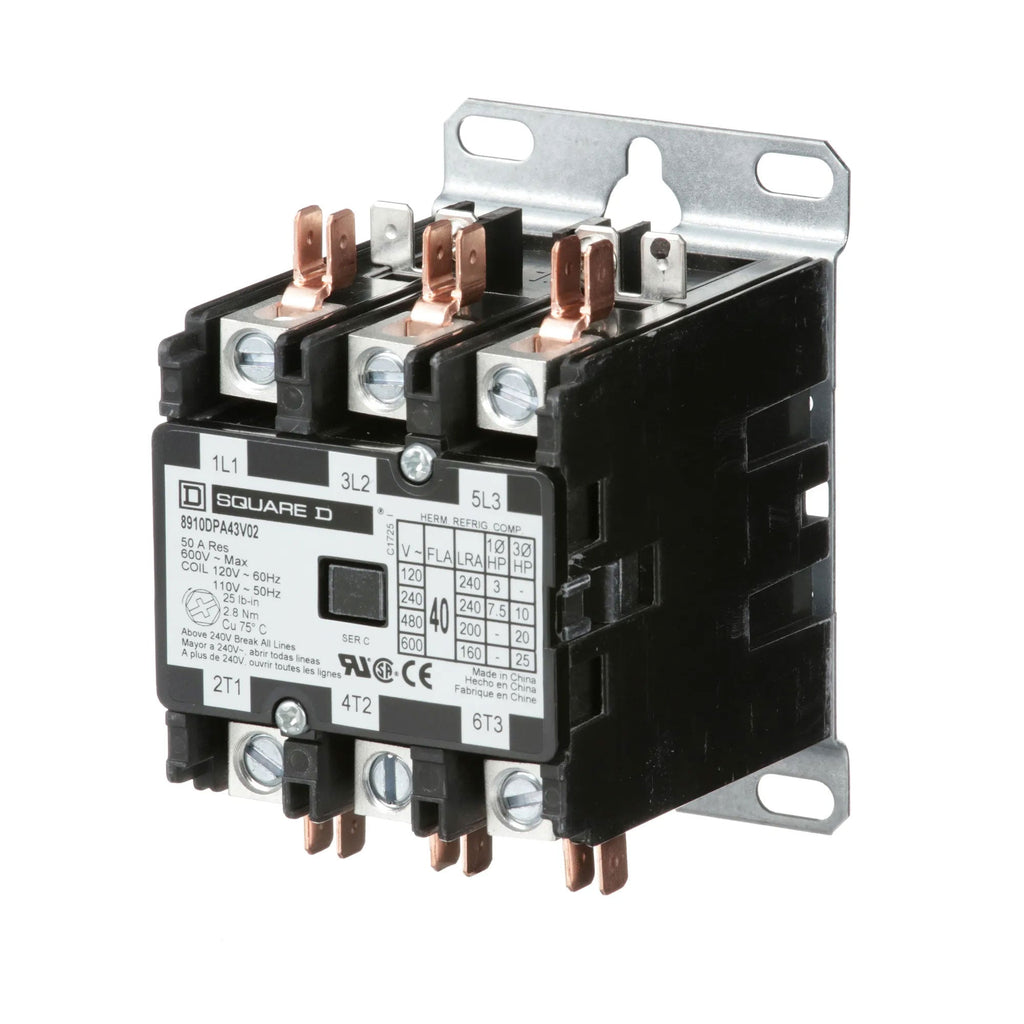

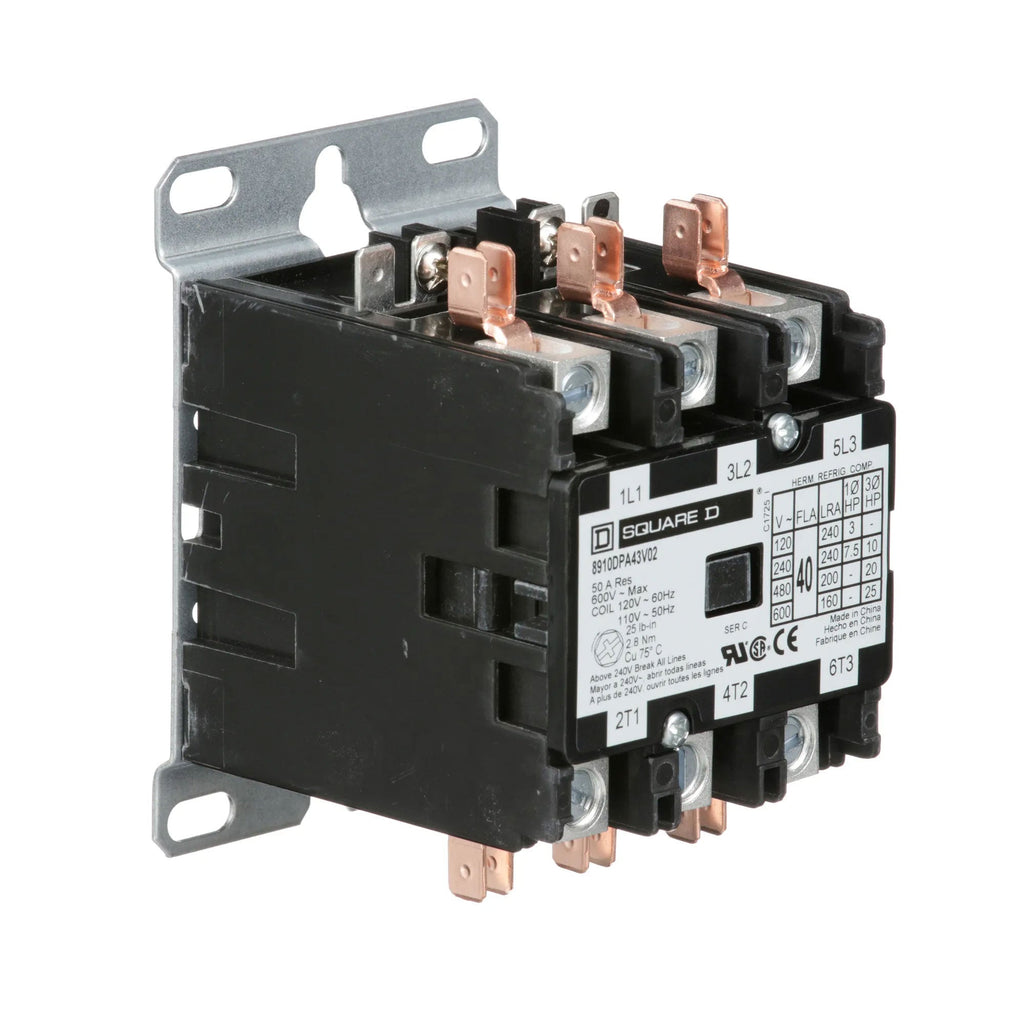

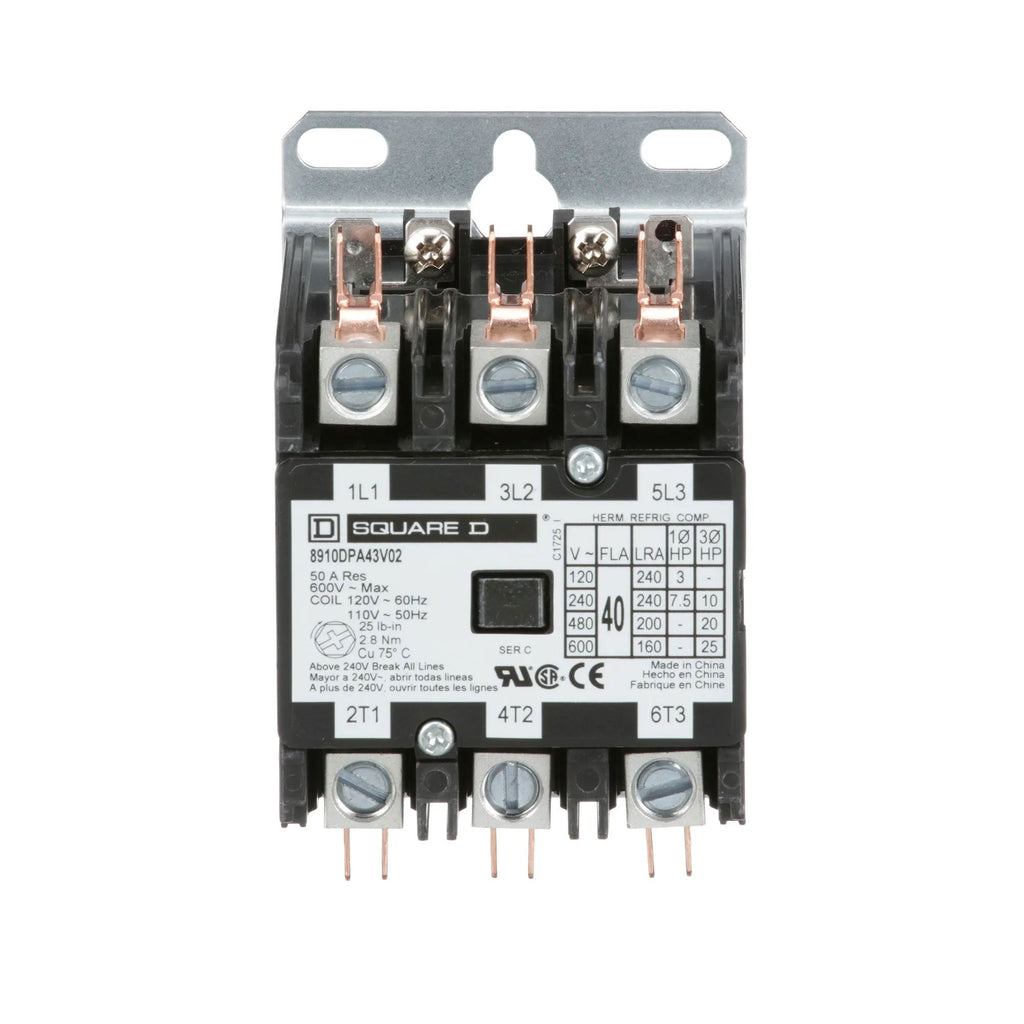

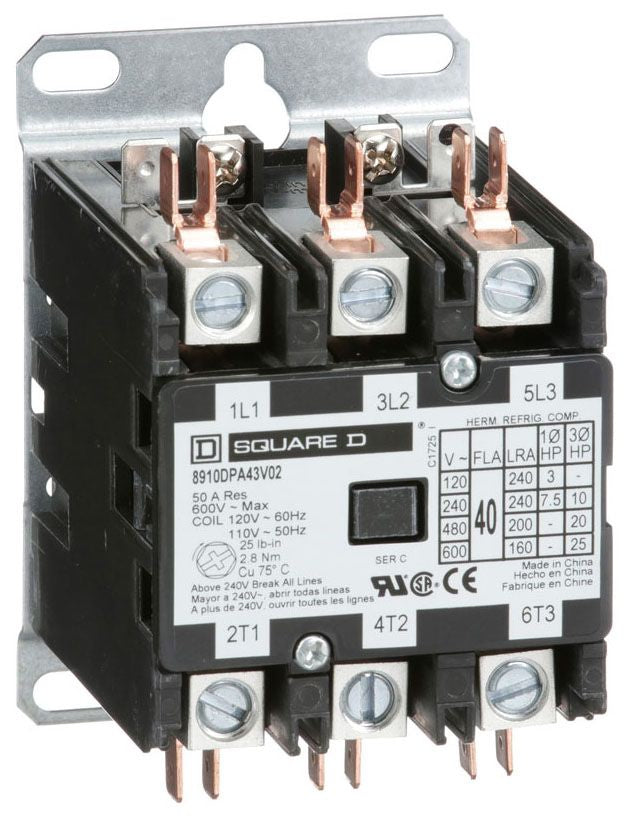

8910DPA43V02 is a Square D definite purpose contactor rated for 40 amps with a 110/120V coil and 3 poles designed for panel mounting.This contactor supports 10 HP at 230V and 20 HP at 460V three-phase motors, featuring double quick connect terminals and a metal base plate for secure mounting. It includes double break contacts, low coil VA, and straight-through wiring for efficient operation. The device is UL Recognized and CSA Certified, suitable for heating, air conditioning, refrigeration, data processing, and food service equipment.

Key Specifications
• Amperage: 40A (50A resistive)
• Voltage: 110/120V AC coil
• Poles: 3
• Horsepower Rating: 10 HP @ 230V, 20 HP @ 460V (3-phase)

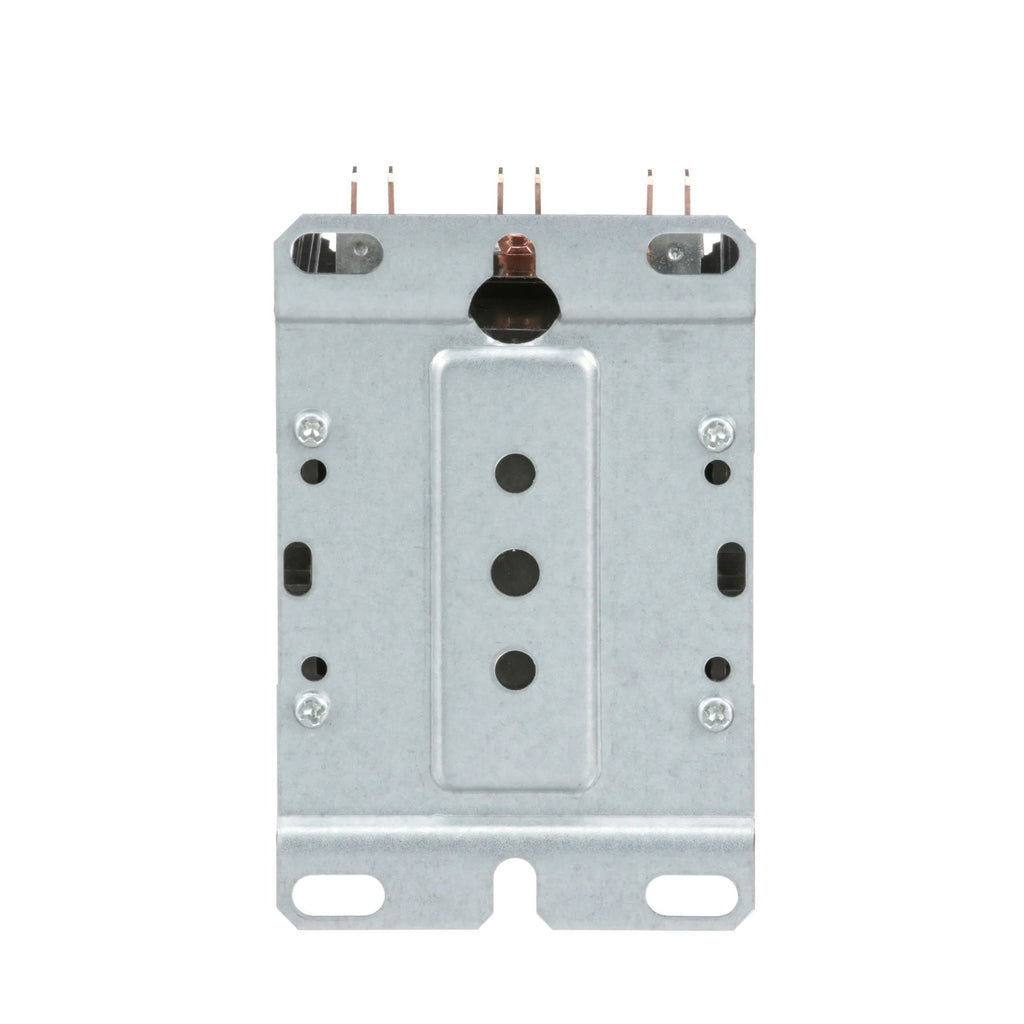

• Mounting Type: Panel mount with metal base plate
• Terminals: Double quick connect
• Interrupt Rating: Not explicitly stated
• Series/Frame: DPA
• Trip Unit: Definite purpose contactor (no trip unit)
• Certifications: UL Recognized, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.

Specifications

• Part Number: 8910DPA43V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 120V
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
• Coil Voltage Minimum : 110V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901073444
• GTIN : 00785901073444
• Country of Origin : China

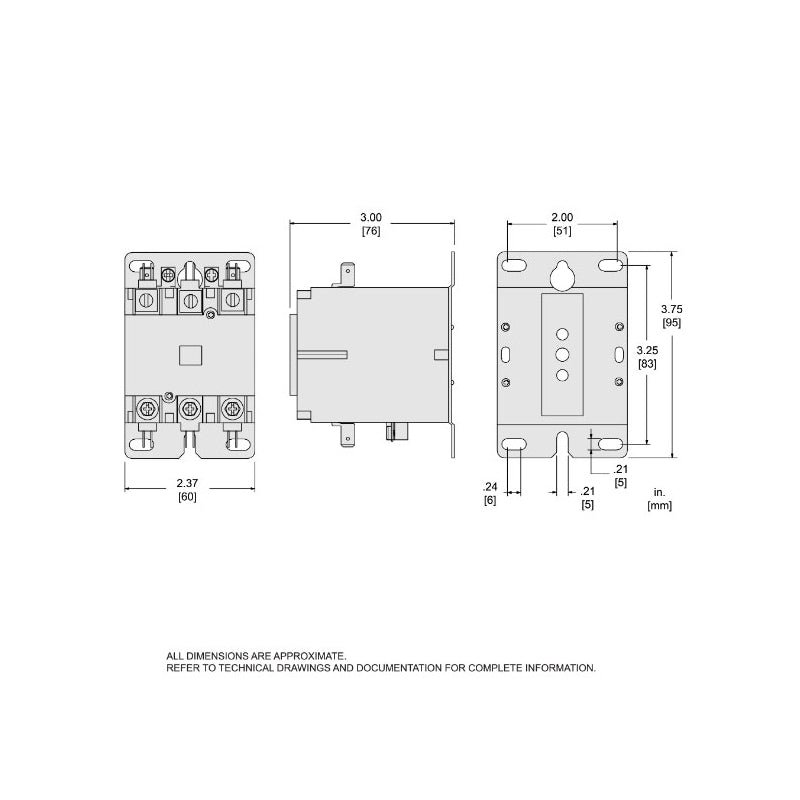

• Dimensions : 2.31 in x 2.37 in x 2.90 in (Height x Width x Depth)
• Weight : 1.046
• Certification : CSA, RoHS, UL Listed
