8910DPA43V09

8910DPA43V09

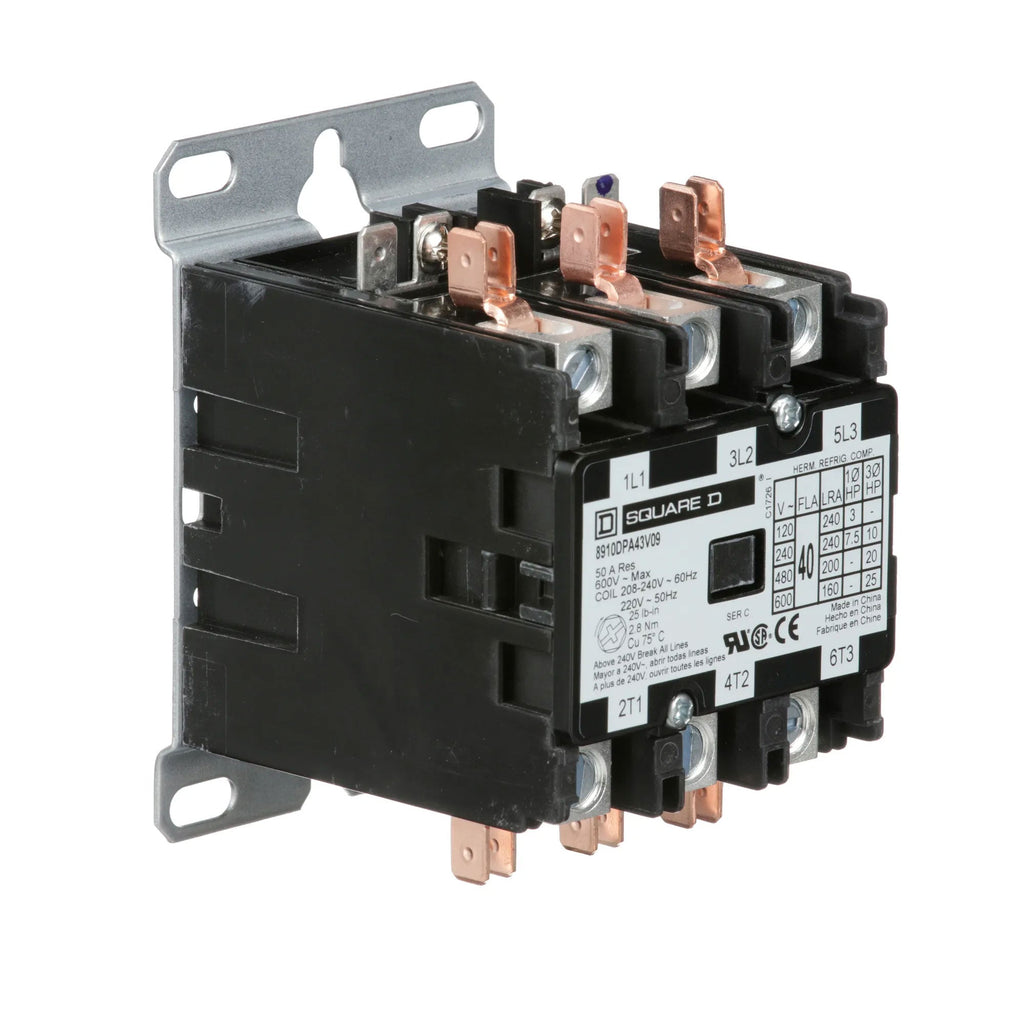

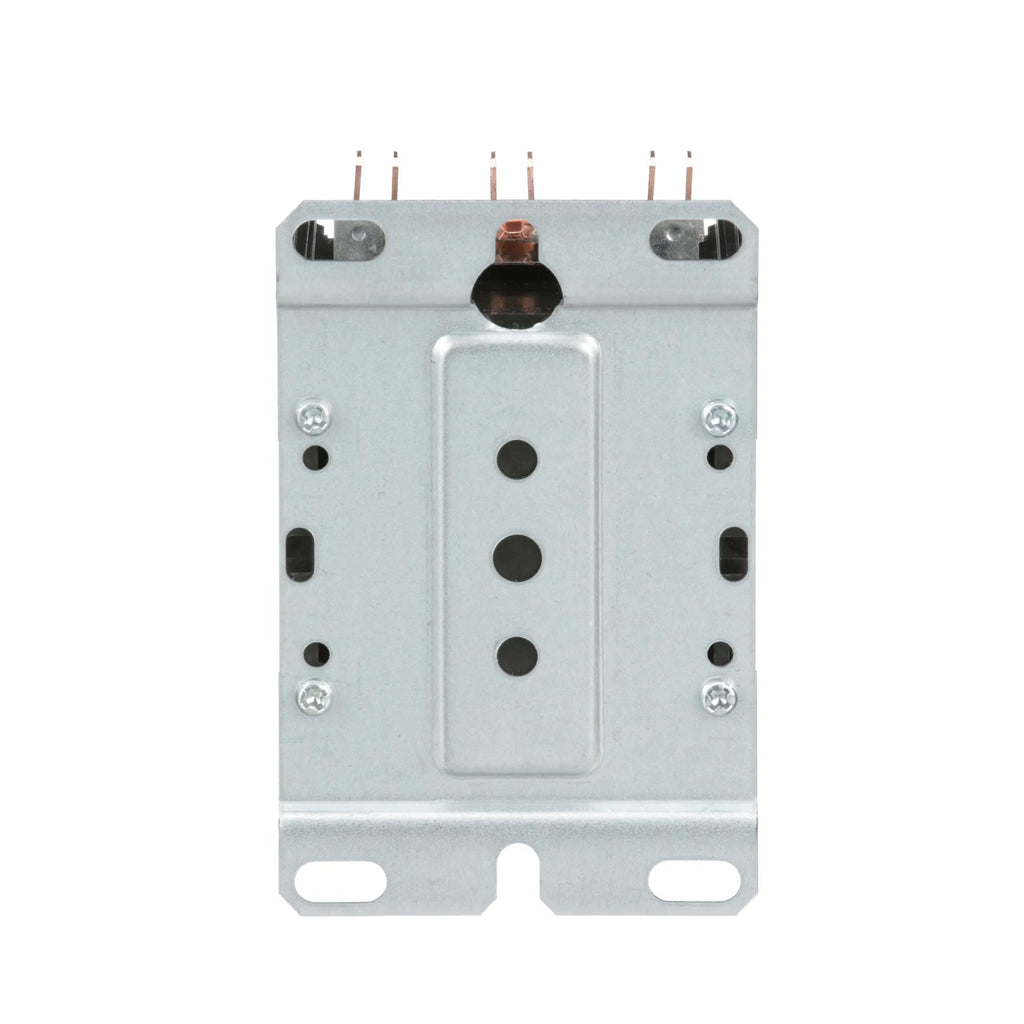

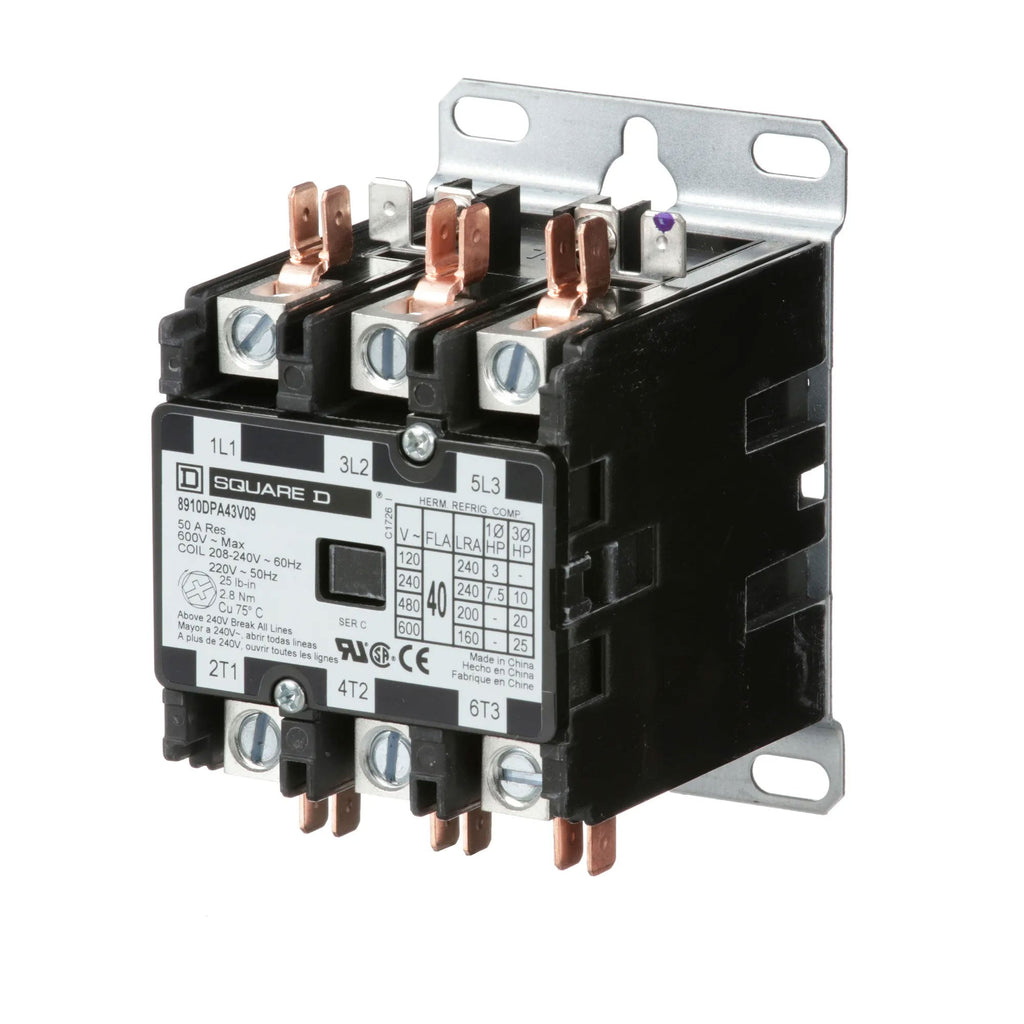

8910DPA43V09 is a Square D definite purpose contactor designed for motor control applications.This 3-pole contactor features a 40 ampere current rating with a coil voltage of 208-240 VAC at 60 Hz and 220 VAC at 50 Hz. It supports a resistive current rating of 50 amps and is suitable for panel mounting. The contactor is UL Recognized and CSA Certified, ideal for heating, air conditioning, refrigeration, data processing, and food service equipment. It includes quick connect binder head screw terminals for easy wiring.

• Amperage: 40A
• Voltage: 208-240 VAC 60Hz / 220 VAC 50Hz coil
• Poles: 3
• Mounting Type: Panel mount
• Contact Configuration: 3 Normally Open (3NO)
• Resistive Current Rating: 50A
• Series: DPA
• Certifications: UL Recognized, CSA Certified
• Application: Motor control, HVAC, refrigeration, data processing
• Phase: 3-phase
• Open enclosure type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 8910DPA43V09
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• Horse Power : 3 hp 115 V AC, 1 phase-7.5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-20 hp 460 V AC, 3 phases-25 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 40A Full Load Amps-Resistive 50A
• Coil Voltage Minimum : 220V
• Frequency : 50 Hz

Product Data

• UPC : 785901073437
• GTIN : 00785901073437
• Country of Origin : China
• Dimensions : 2.5 in x 4 in
• Weight : 8.541
• Certification : CSA, RoHS, UL Listed
