8910DPA33V02

8910DPA33V02

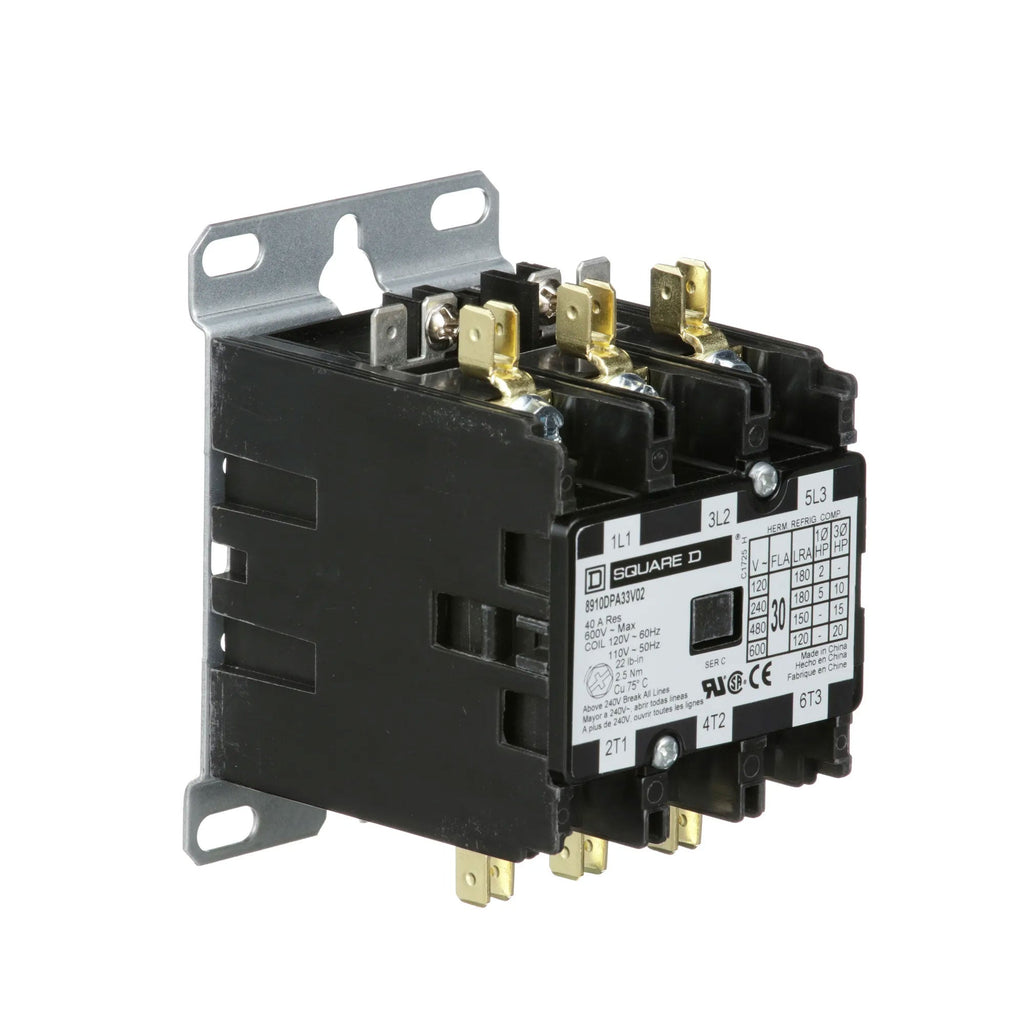

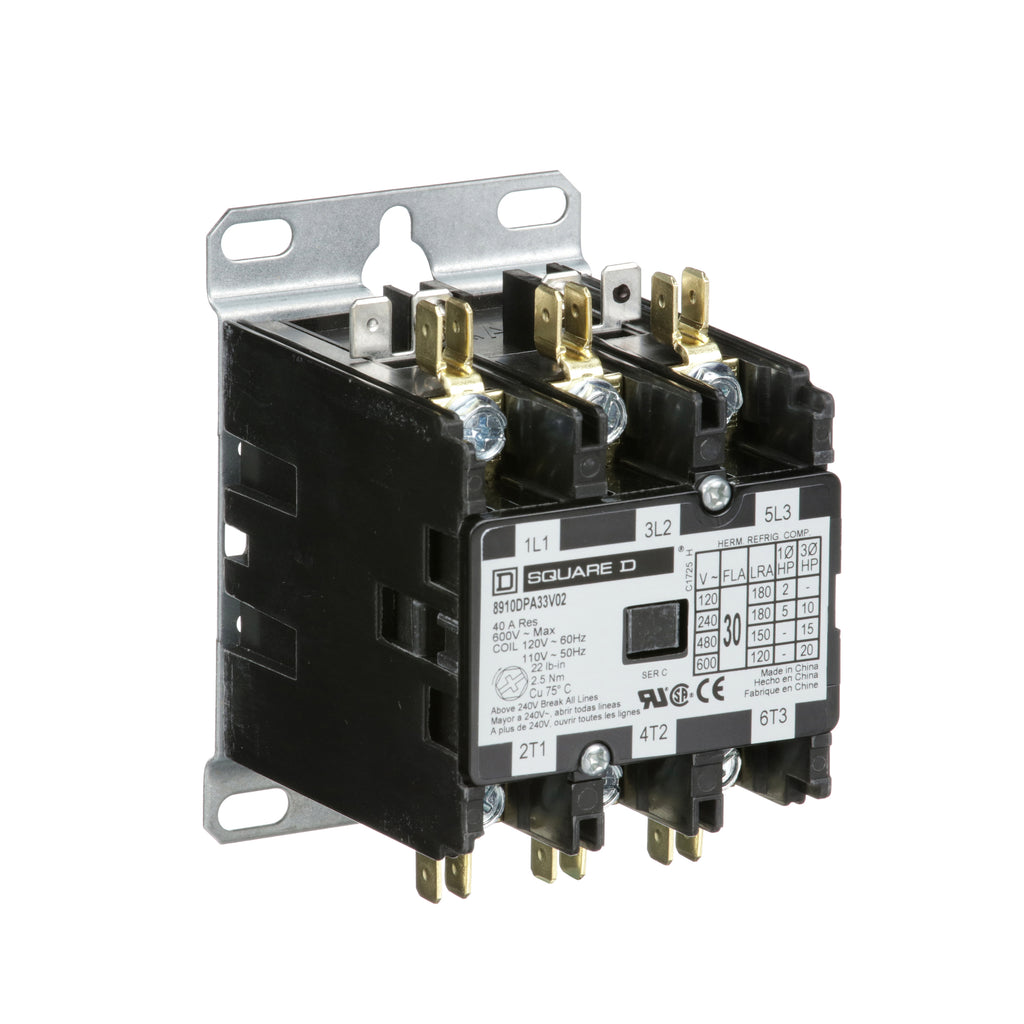

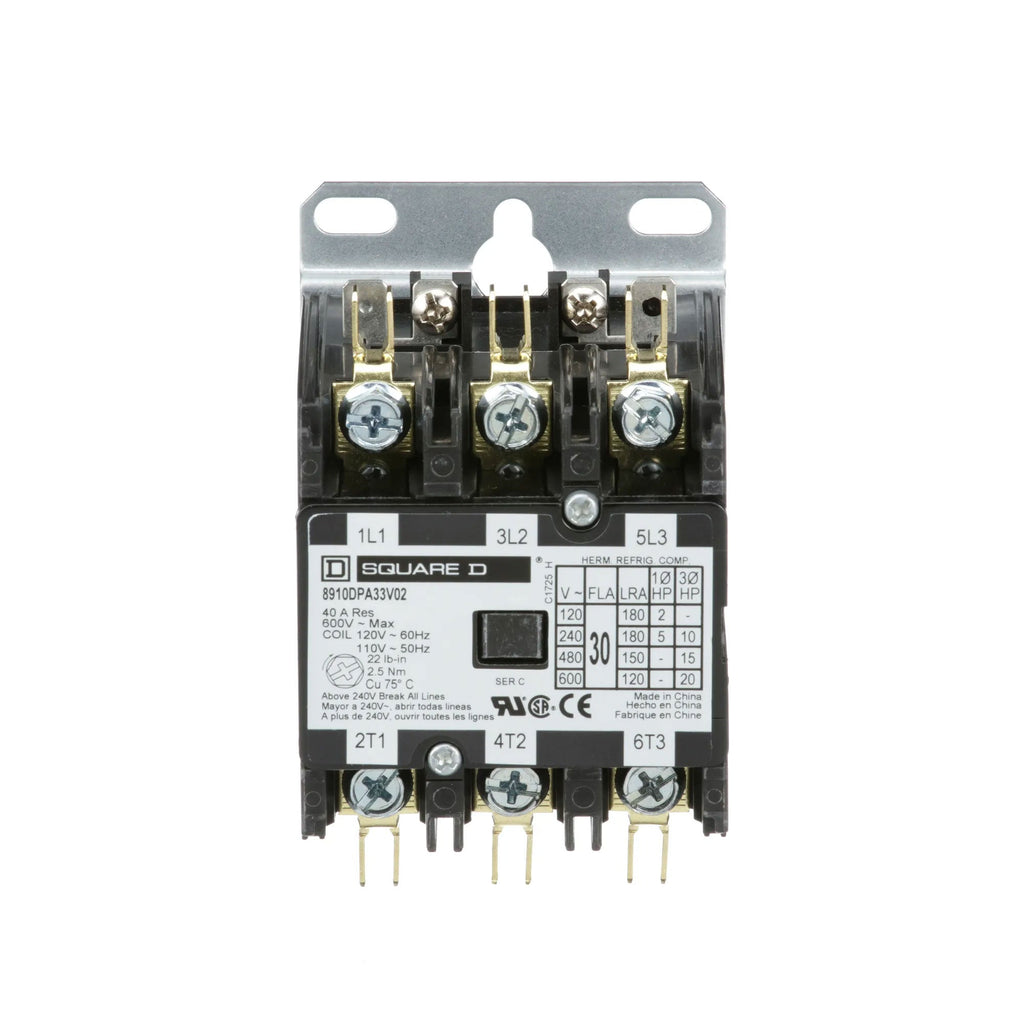

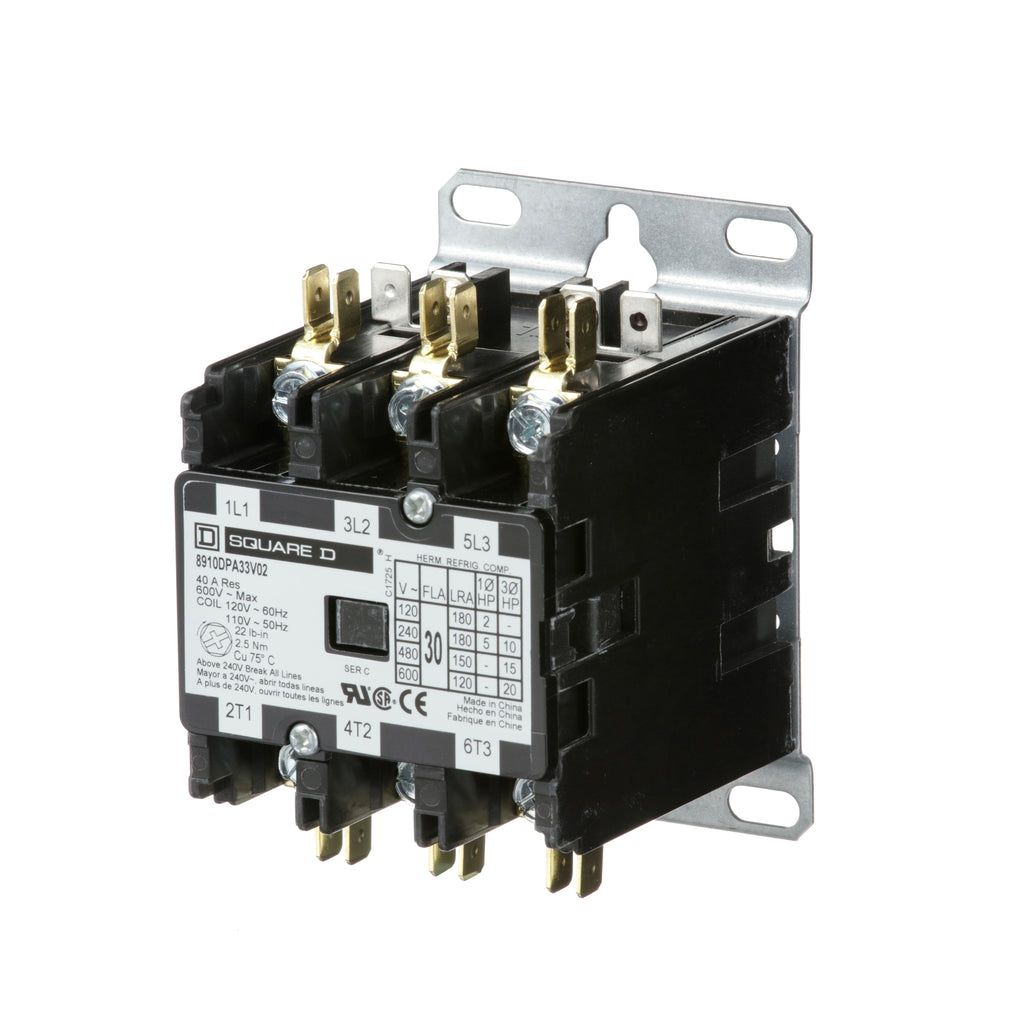

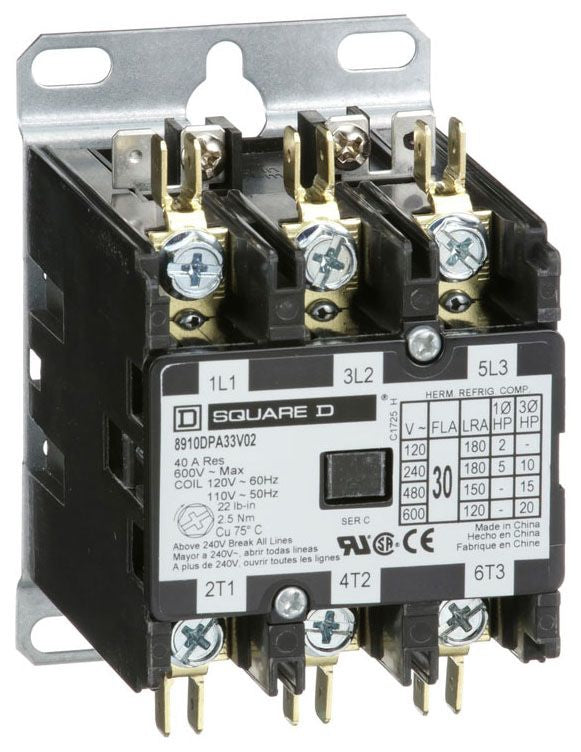

8910DPA33V02 is a Square D definite purpose contactor designed for motor control applications.This contactor features a 30 ampere full load rating with a 120V AC coil voltage and 3 poles for three-phase operation. It is panel mountable and suitable for use in heating, air compressors, refrigeration, and food service equipment. The device supports a system voltage up to 600 VAC and is UL recognized and CSA certified. It has normally open contacts (3 NO) and is part of the DPA series.

Key Specifications
• Amperage: 30A
• Voltage: 120V AC coil
• Poles: 3
• Phase: 3

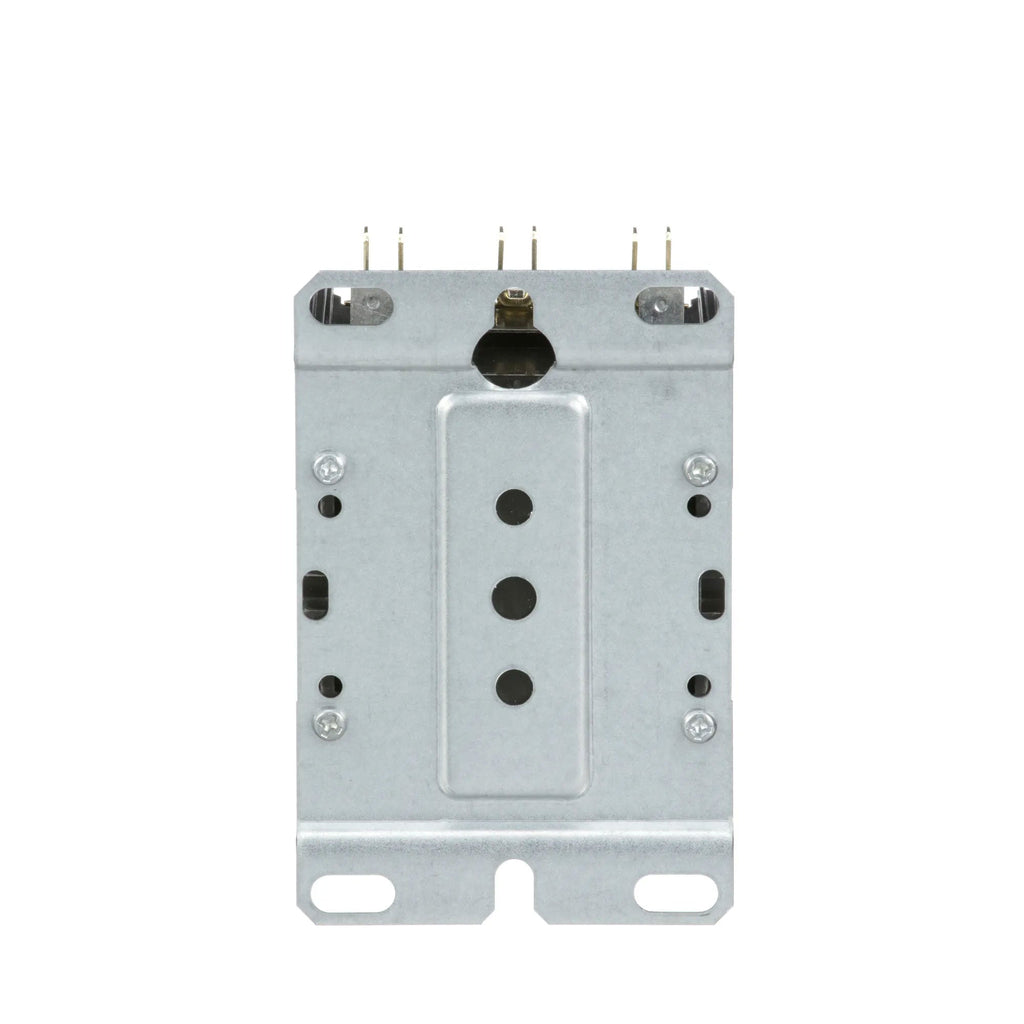

• Mounting Type: Panel mount
• Contactor Type: Definite Purpose
• System Voltage: 600 VAC
• Contact Configuration: 3 Normally Open (3 NO)
• Series: DPA
• Certifications: UL recognized, CSA certified
• Horsepower Ratings: 10 HP @ 230V, 15 HP @ 460/575V
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This Definite Purpose Contactor includes a 110 VAC coil.




Specifications

• Part Number: 8910DPA33V02
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 120V
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 110V
• Frequency : 50/60 Hz



Product Data

• UPC : 785901073536
• GTIN : 00785901073536
• Country of Origin : China

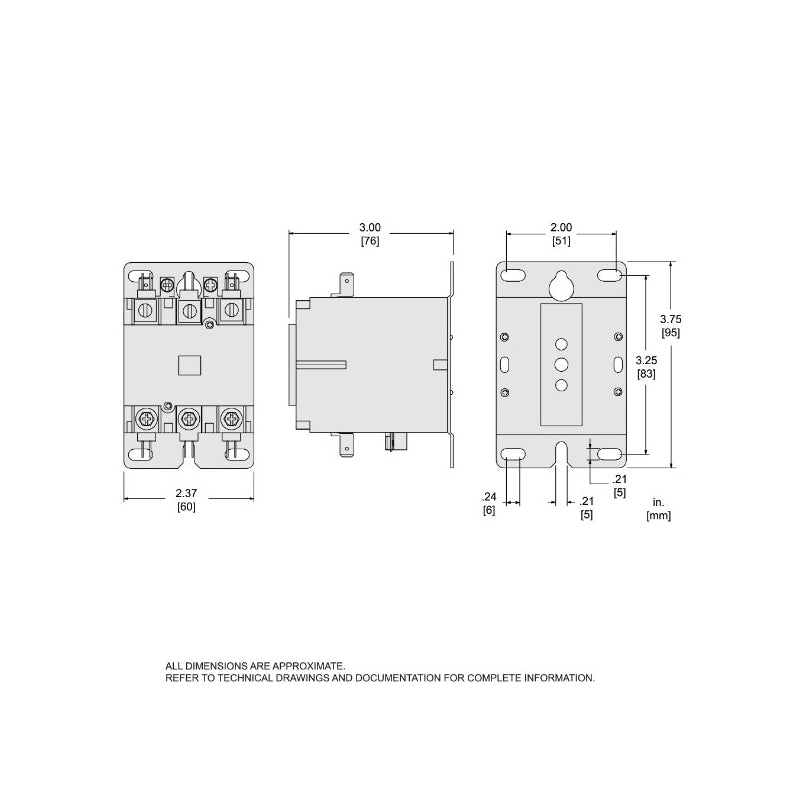

• Dimensions : 2.31 in x 2.37 in x 2.90 in (Height x Width x Depth)
• Weight : 1.03
• Certification : CSA, RoHS, UL Listed
