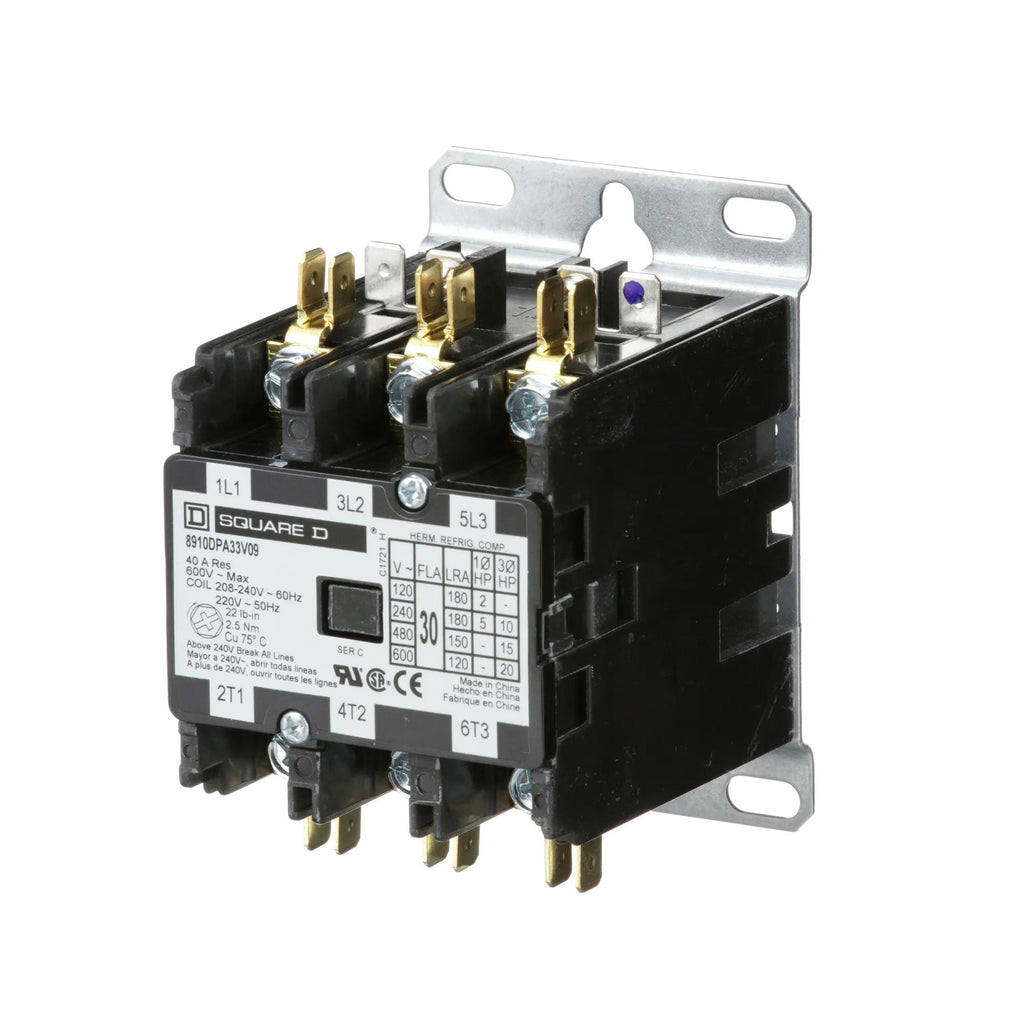

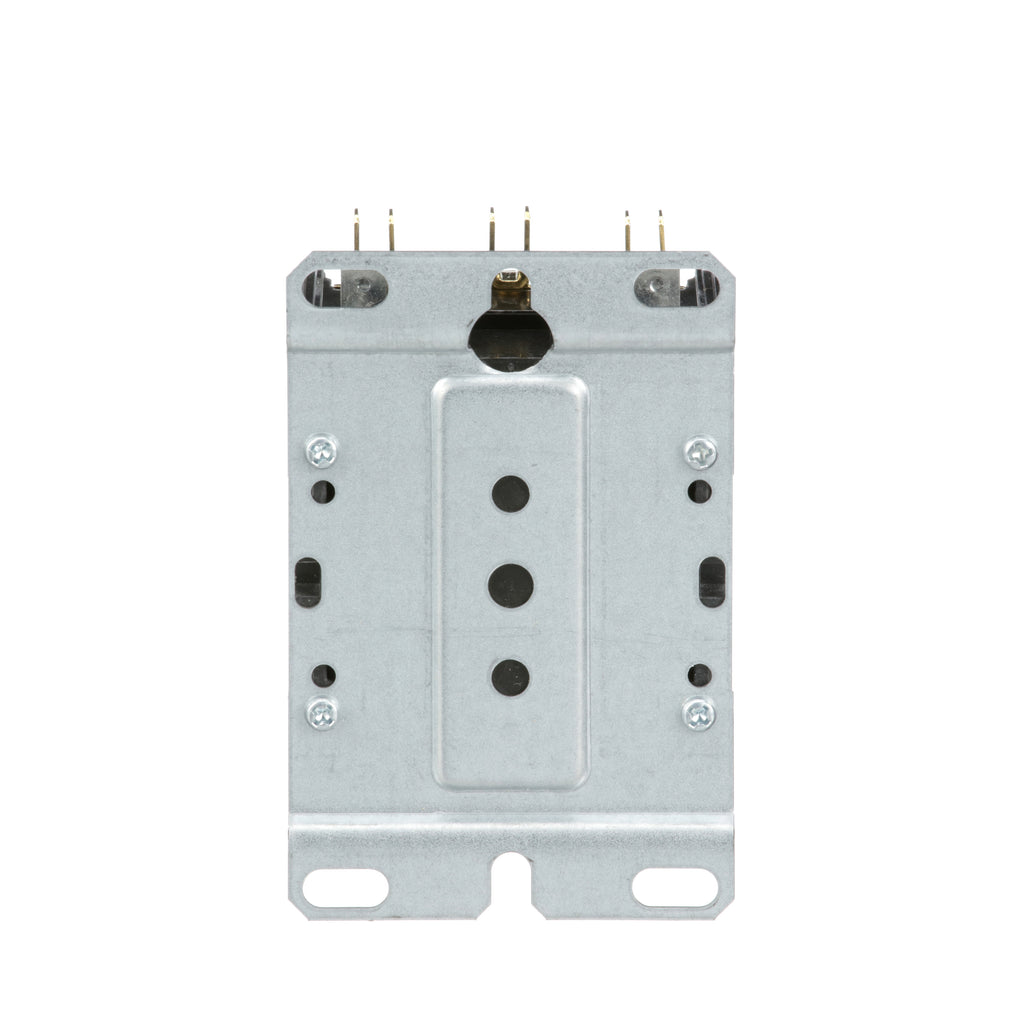

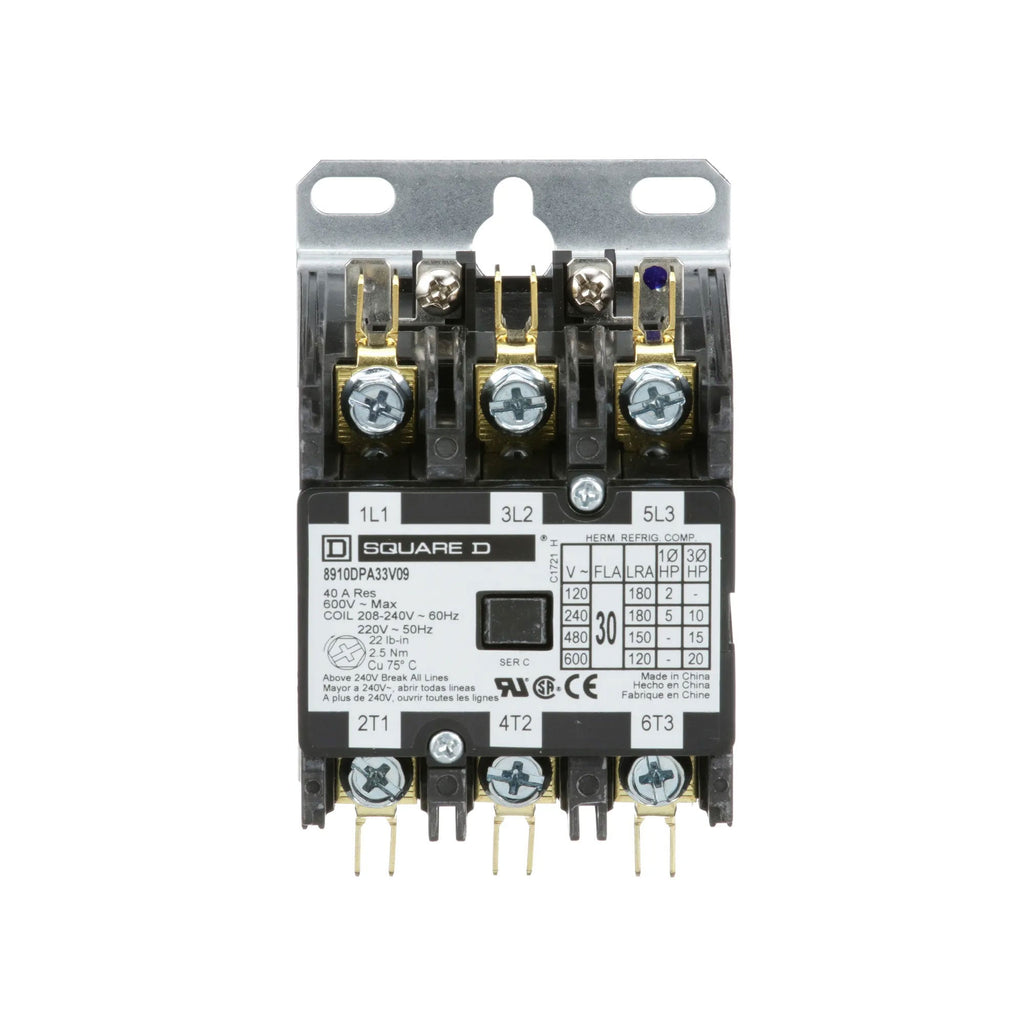

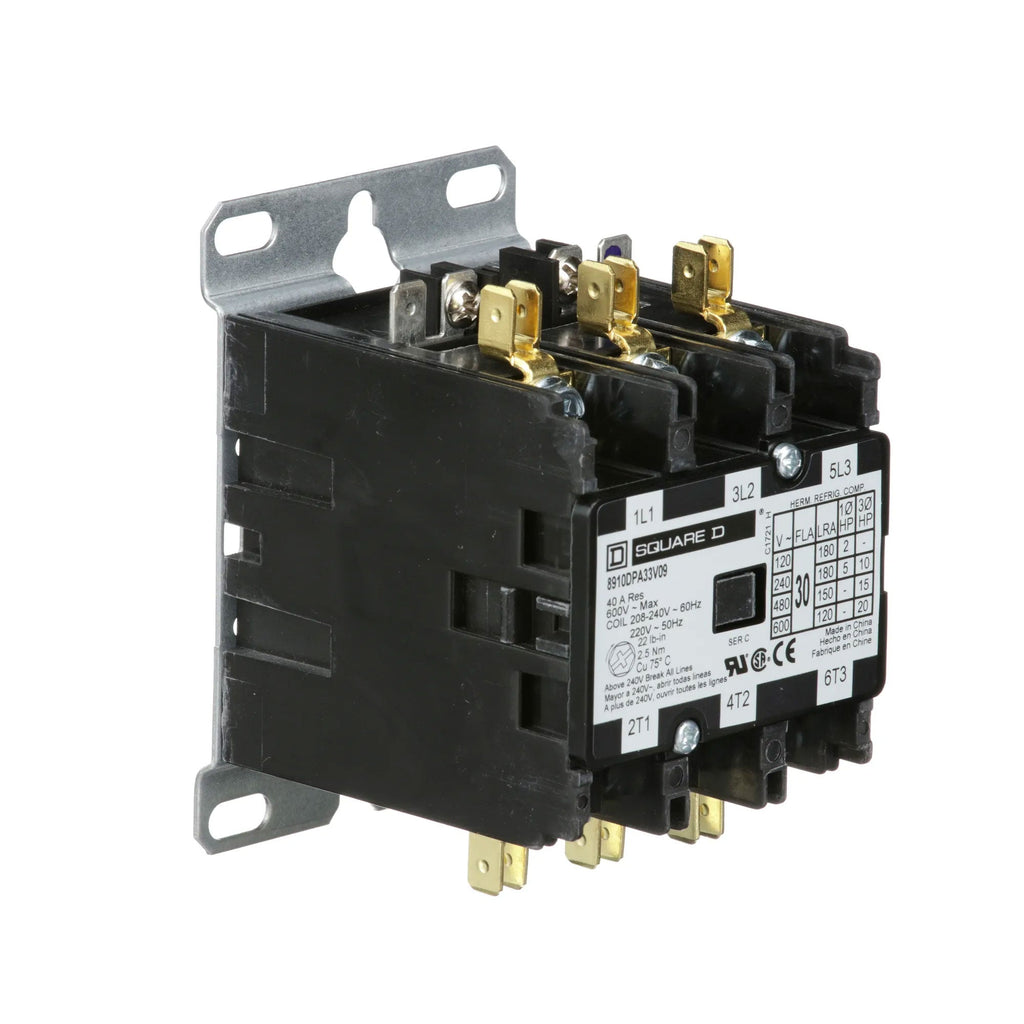

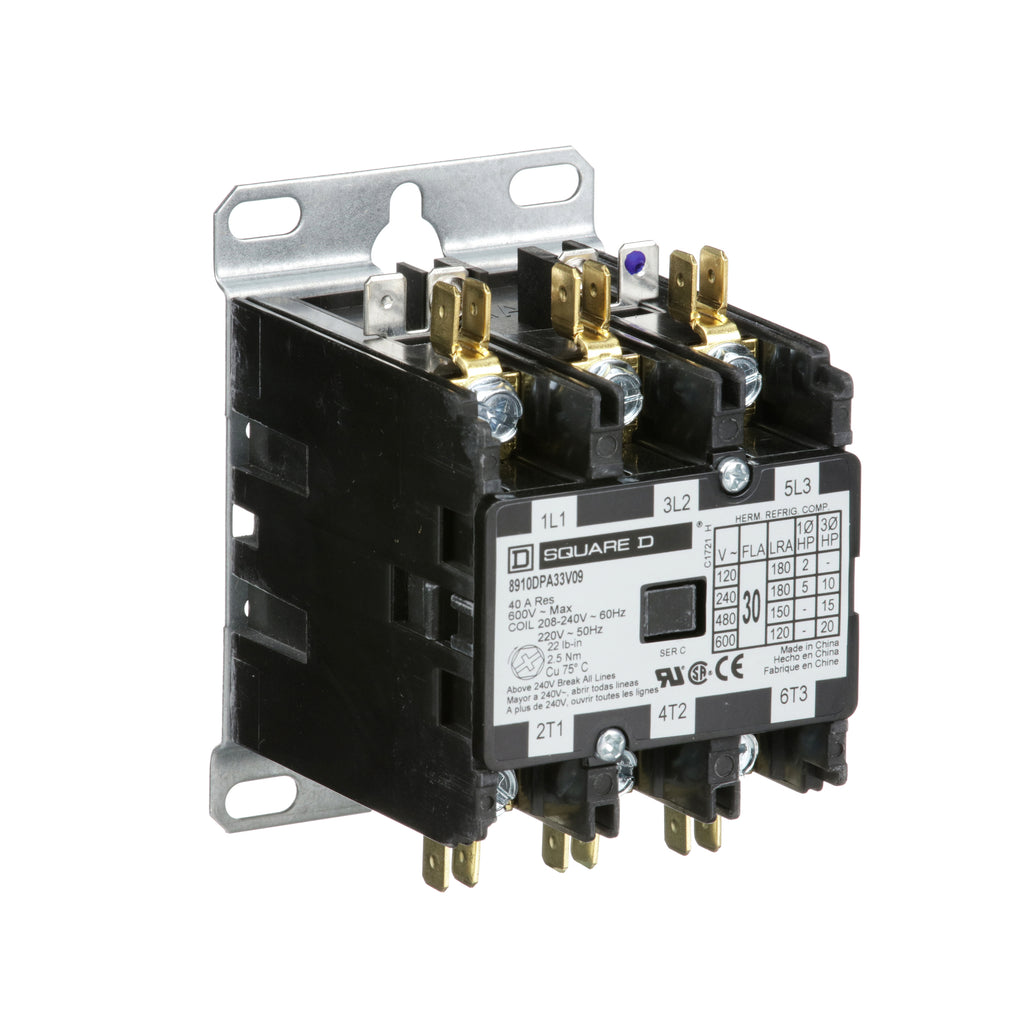

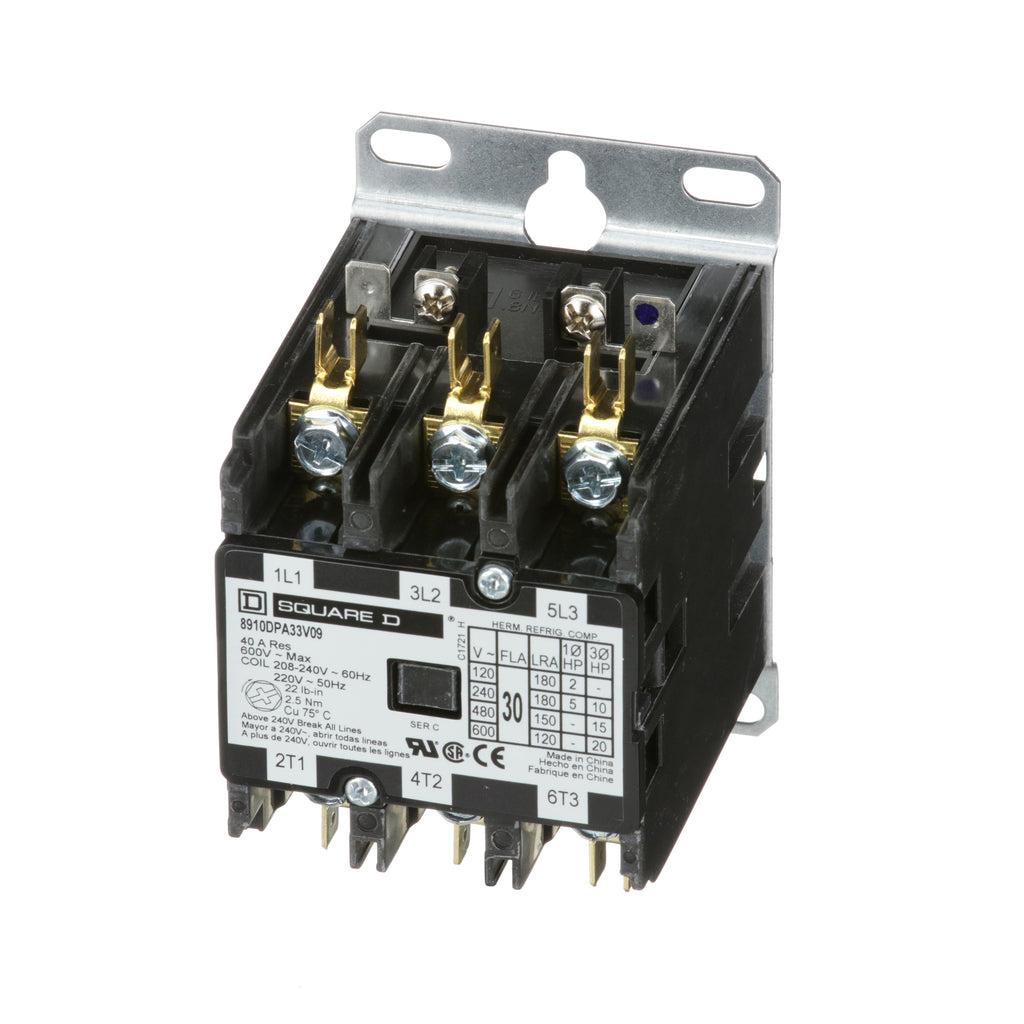

8910DPA33V09 is a Square D definite purpose contactor designed for motor control applications.This 3 pole, 3 phase contactor features a 30 ampere rating and operates with a coil voltage of 208 to 240 VAC at 60 Hz or 220 VAC at 50 Hz. It supports motor horsepower ratings up to 10 HP at 230 V for 3 phase motors. The contactor is panel mountable with screw binding head terminals and built to NEMA 1 open type construction.

• Brand: Square D
• Series: 8910 DPA
• Amperage: 30A
• Voltage: 208-240 VAC coil
• Poles: 3
• Phase: 3
• Mounting Type: Panel mount
• Contactor Type: Definite Purpose
• Horsepower Rating: Up to 10 HP @ 230 V 3 phase
• Terminal Type: Screw binding head
• Construction: NEMA 1 open type

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 220 VAC coil.

Specifications

• Part Number: 8910DPA33V09
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• Horse Power : 2 hp 115 V AC, 1 phase-5 hp 230 V AC, 1 phase-10 hp 230 V AC, 3 phases-15 hp 460 V AC, 3 phases-20 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 30A Full Load Amps-Resistive 40A
• Coil Voltage Minimum : 220V
• Frequency : 50 Hz

Product Data

• UPC : 785901073529
• GTIN : 00785901073529
• Country of Origin : China

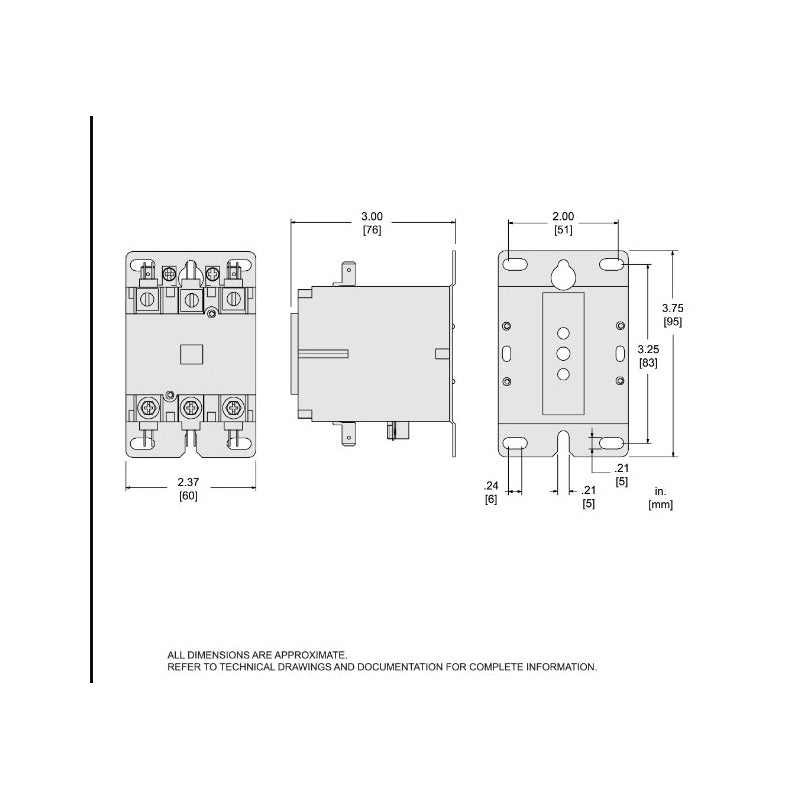

• Dimensions : 2.5 in x 4 in
• Weight : 8.479
• Certification : CSA, RoHS, UL Listed
