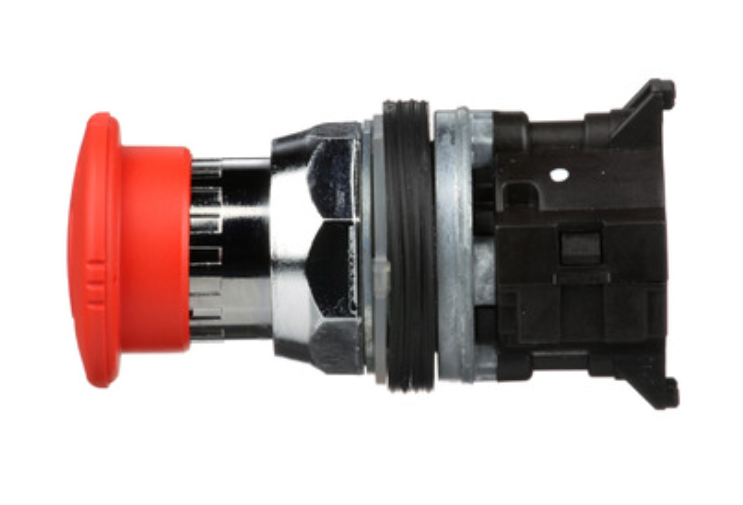

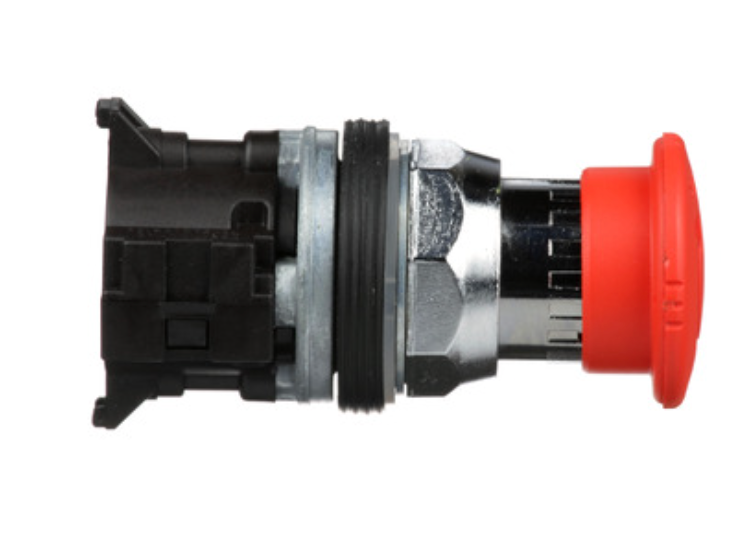

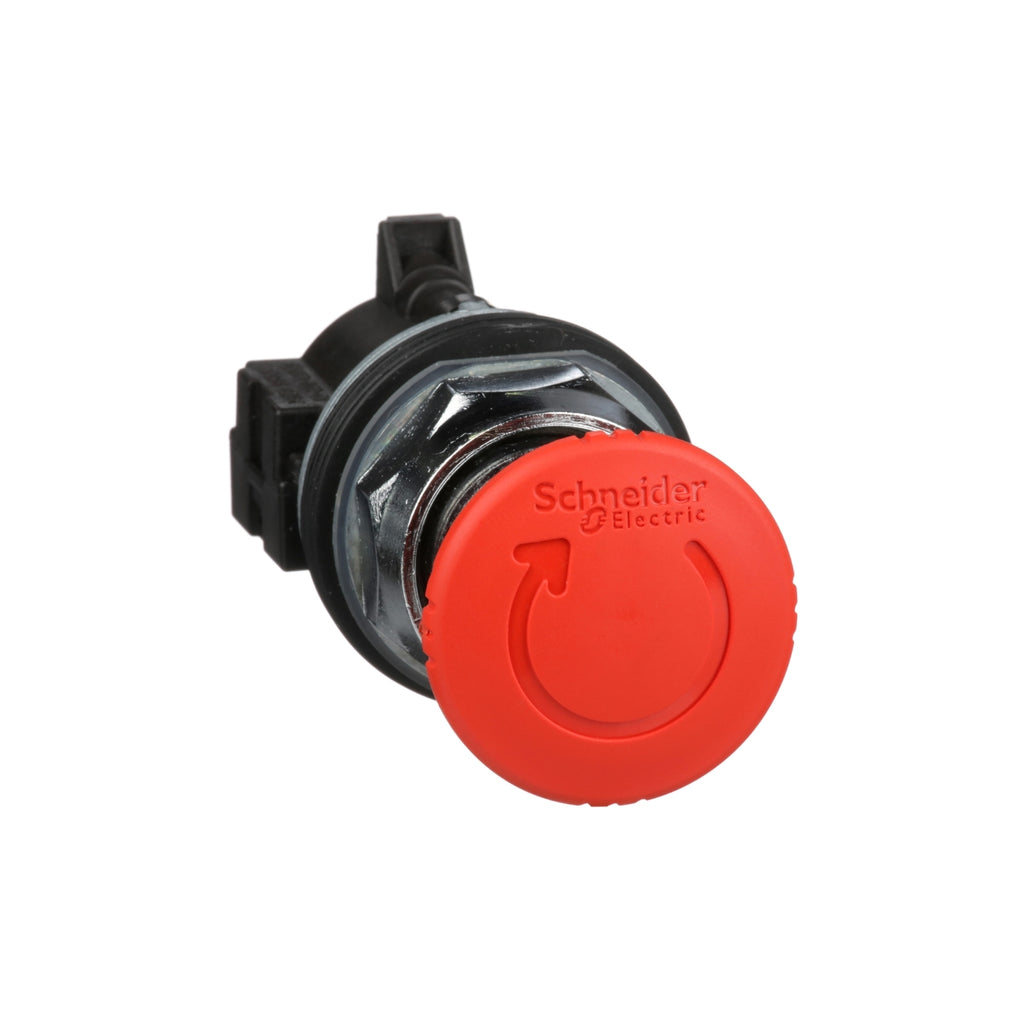

9001KR16H2 - Schneider Electric 10A 600V 2 NO + 2 NC Emergency Stop Pushbutton, 30mm Metal Mushroom, Turn-to-Release

9001KR16H2

9001KR16H2 is a Schneider Electric Harmony 9001K emergency stop pushbutton featuring a 30 mm metal mushroom head and a turn-to-release maintained trigger action.This non-illuminated pushbutton is rated for 10 amps and 600 volts, with a contact configuration of 2 normally open (NO) and 2 normally closed (NC) contacts. It is designed for robust industrial use with an IP66 rating, chromium-plated metal bezel, and compliance with multiple NEMA standards (1, 2, 3, 3R, 4, 6, 12, 13). The button offers secure mounting, finger-safe contact blocks, and is suitable for harsh environments.

• Amperage: 10A
• Voltage: 600V
• Contact Configuration: 2 NO + 2 NC
• Mounting Diameter: 30 mm
• Actuator Type: Metal Mushroom, 40 mm
• Action: Maintained, Turn-to-Release
• IP Rating: IP66
• Bezel Material: Chromium Plated Metal
• Standards: IEC 61140, NEMA 1, 2, 3, 3R, 4, 6, 12, 13
• Series: Harmony 9001K
• Non-Illuminated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 9001KR16H2
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Section : Pushbutton

Product Data

• UPC : 785901623595
• Country of Origin : Mexico
• Weight : 0.507
• Certification : CSA C22.2 No.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
