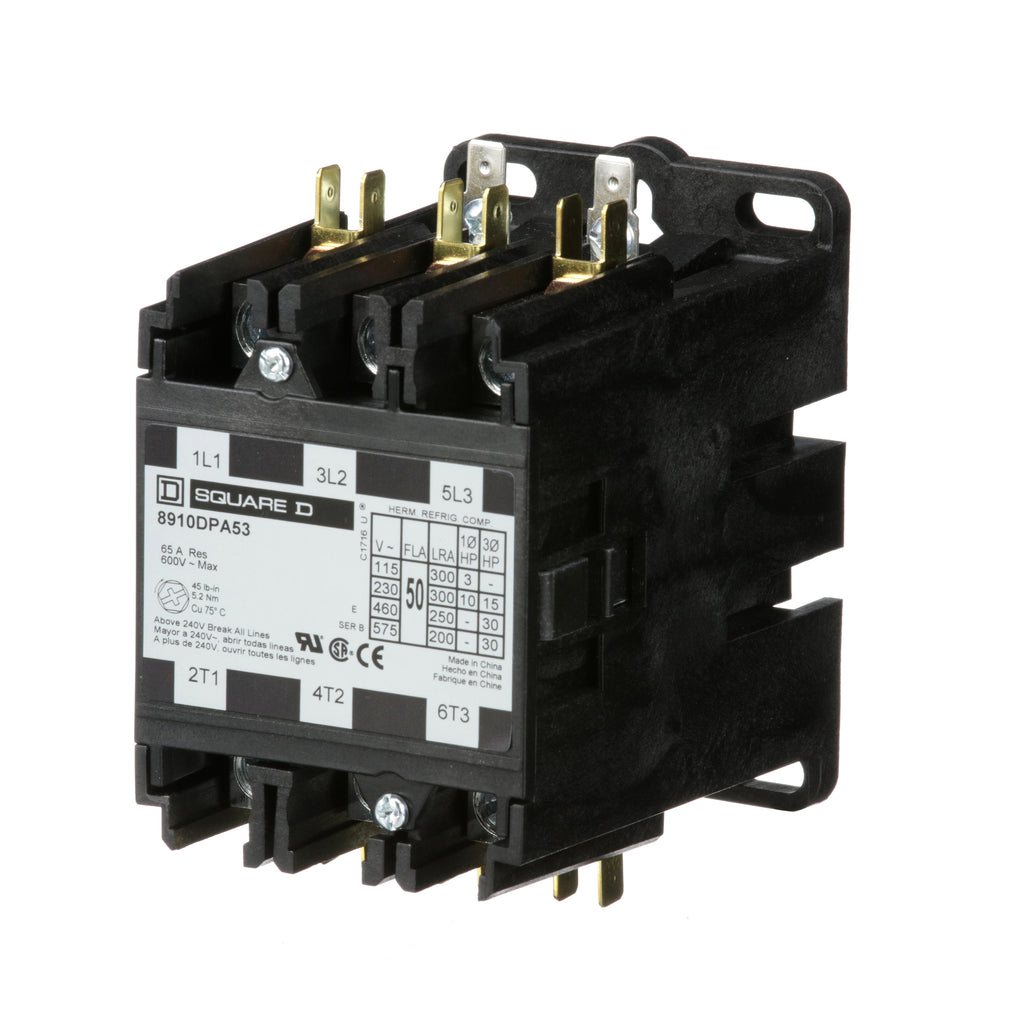

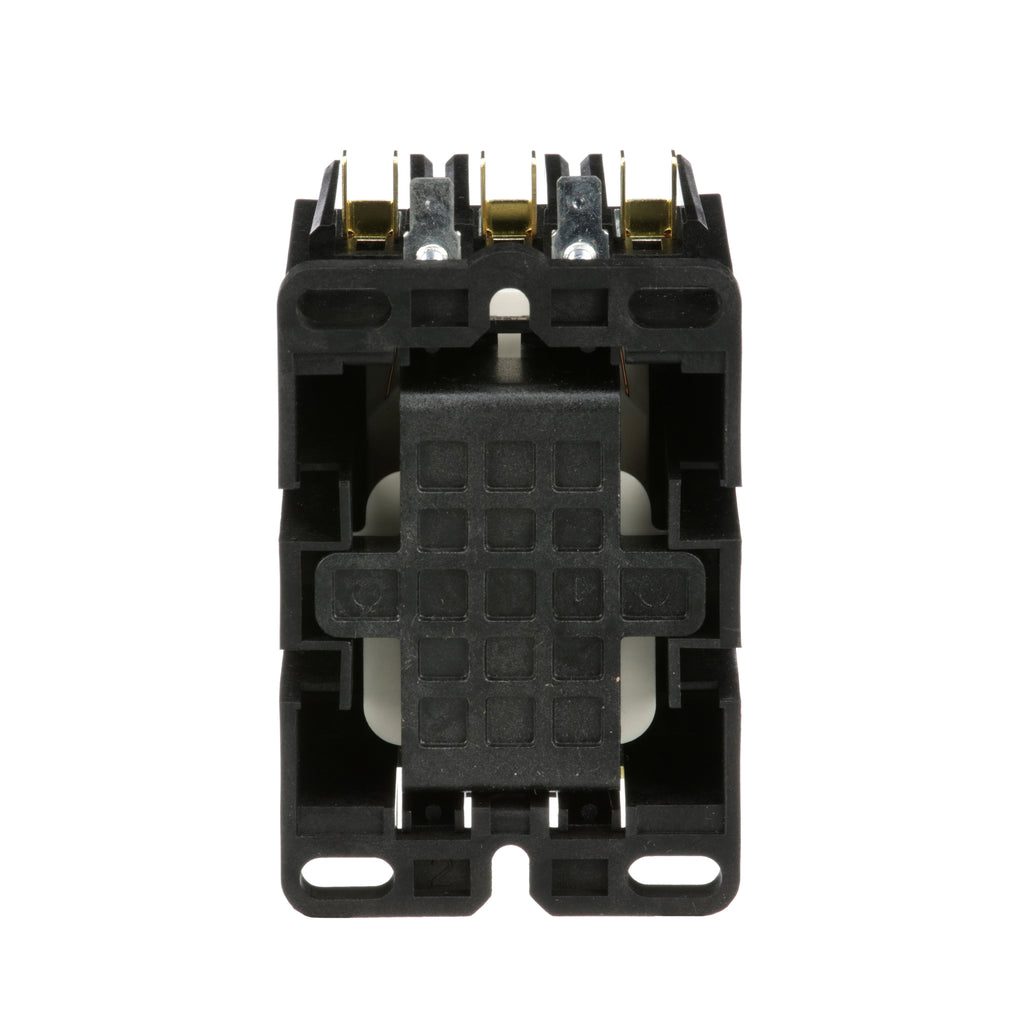

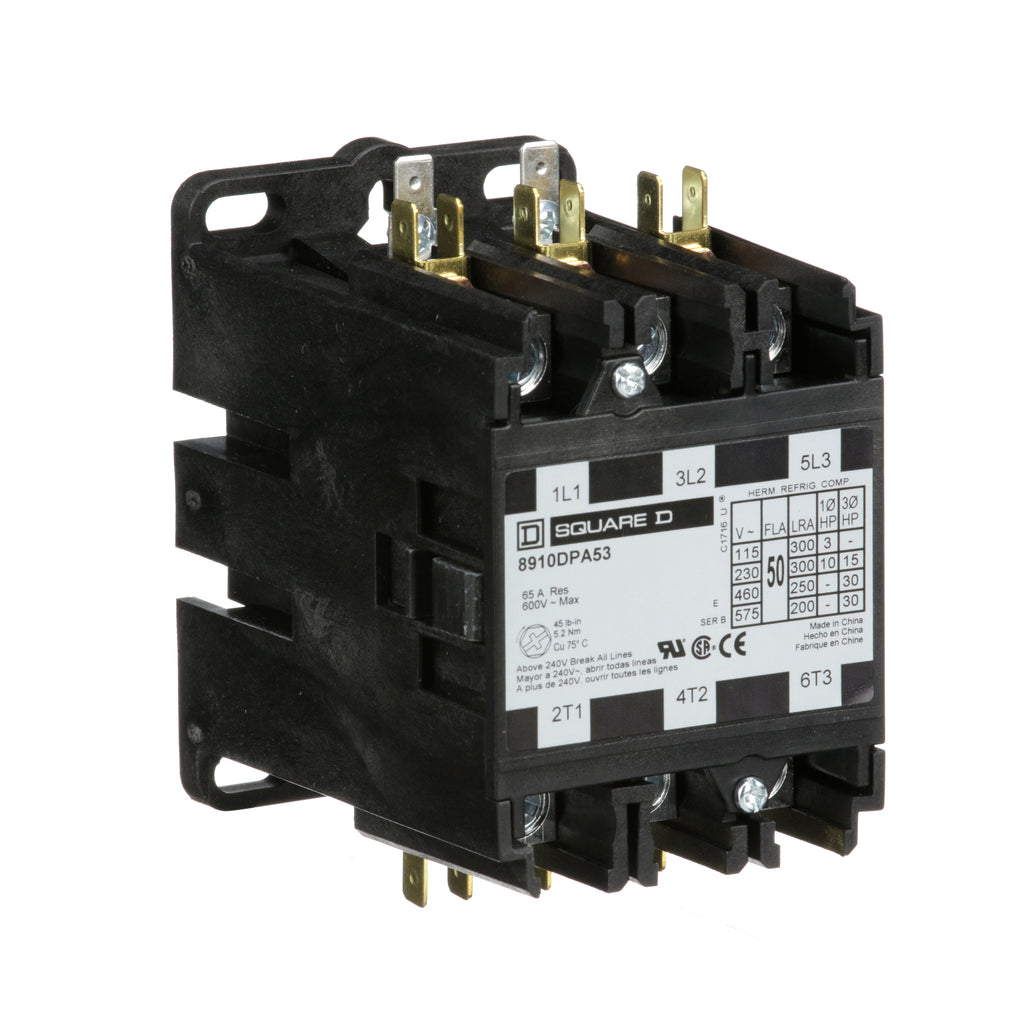

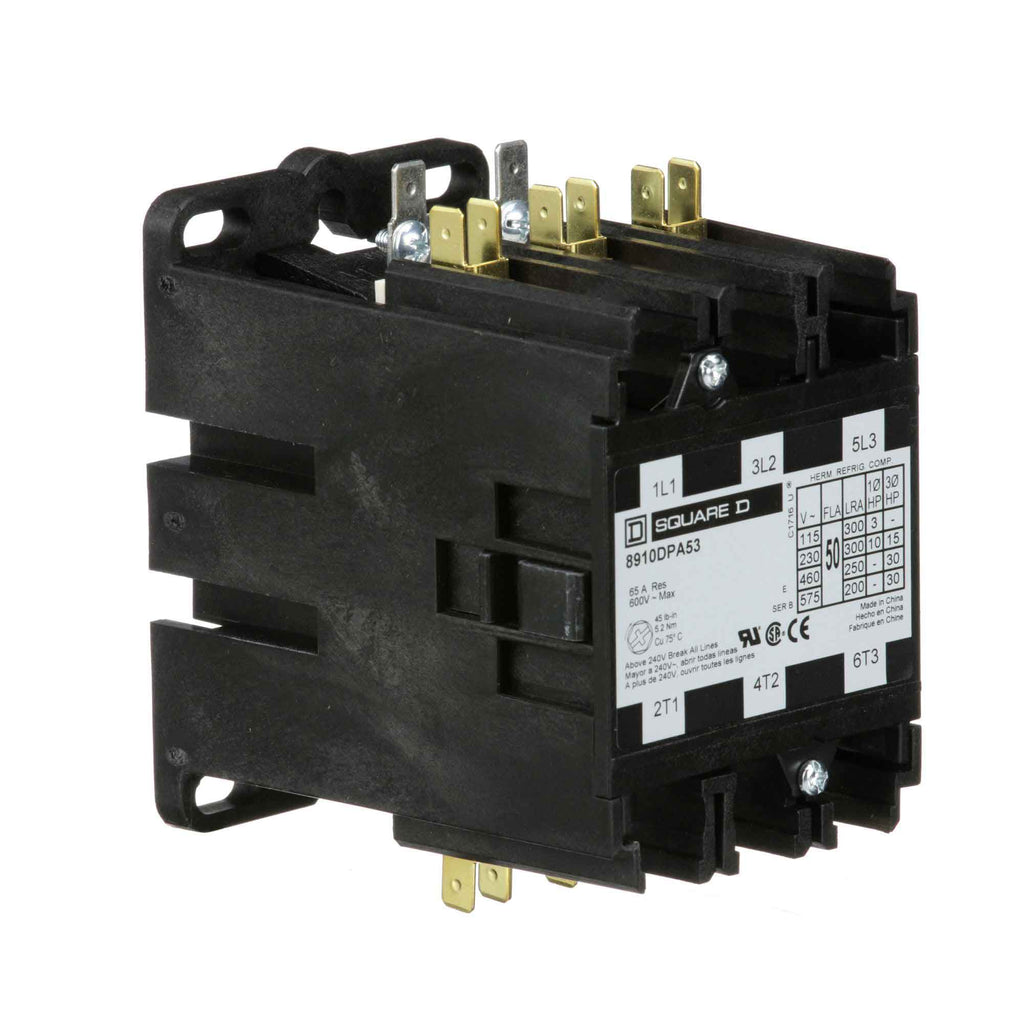

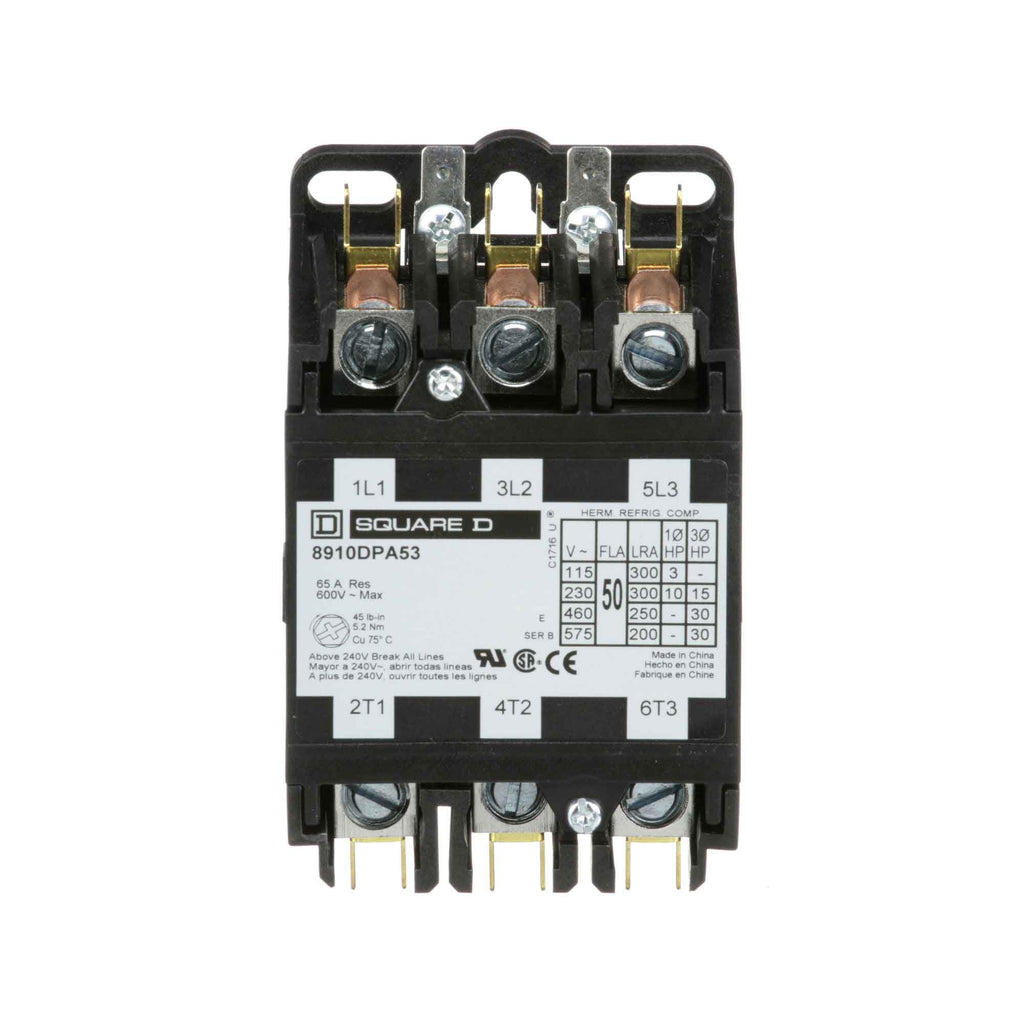

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Contactor
- Series
- Class 8910
- Frame
- DPA5
- Rated current
- 50
- Voltage
- 600V
- Poles
- 3
- Coil voltage
- 24V
- Auxiliary contacts
- 3 NO
- Country of origin
- China
- Horse Power
- 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-15 hp 230 V AC, 3 phases-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases
- Coil Voltage Maximum
- 24V
- Full Load Amps
- Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
Show all specifications (7 more)
- Coil Voltage Minimum
- 24V
- Frequency
- 50/60 Hz
- UPC
- 785901080770
- GTIN
- 00785901080770
- Dimensions
- 2.56 in x 4.06 in
- Weight
- 1.6
- Certification
- CSA, RoHS, UL Listed
Product description & additional details
8910DPA53V14
8910DPA53V14 is a Square D Class 8910 definite purpose contactor designed for motor control applications with a 50 amp rating and 3 poles.
This contactor operates at 600V AC with a 24V AC coil and supports motor horsepower ratings up to 30 HP at 460/575V 3-phase. It features quick connect terminals, a plastic base mounting plate, and is UL, CE, and CSA certified for reliable performance in HVAC, food service, and data processing equipment.
- Key Specifications
- Amperage: 50A full load, 65A resistive
- Voltage: 600V AC operational
- Poles: 3-pole, 3 normally open contacts
- Coil Voltage: 24V AC, 50/60 Hz
- Horsepower Ratings: 3 HP at 115V 1-phase, 10 HP at 230V 1-phase, 15 HP at 230V 3-phase, 30 HP at 460/575V 3-phase
- Mounting: Plastic base mounting plate
- Interrupt Rating: Locked rotor rated current 250A at 460V AC
- Connection Type: Double quick connect terminals and box lugs
- Certifications: UL listed, CE, CSA
- Series/Frame: Class 8910 DPA
- Part Number: 8910DPA53V14
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8910
- Type : DPA5
- Voltage : 600
- Amperage : 50
- Poles : 3
- Horse Power : 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-15 hp 230 V AC, 3 phases-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases
- Aux Contacts : 3 NO
- Coil Voltage Maximum : 24V
- Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
- Coil Voltage Minimum : 24V
- Frequency : 50/60 Hz
- UPC : 785901080770
- GTIN : 00785901080770
- Country of Origin : China
- Dimensions : 2.56 in x 4.06 in
- Weight : 1.6
- Certification : CSA, RoHS, UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This Definite Purpose Contactor includes a 600 VAC coil.
Specifications
Product Data
Technical Documents
