8910DPA53V09

8910DPA53V09

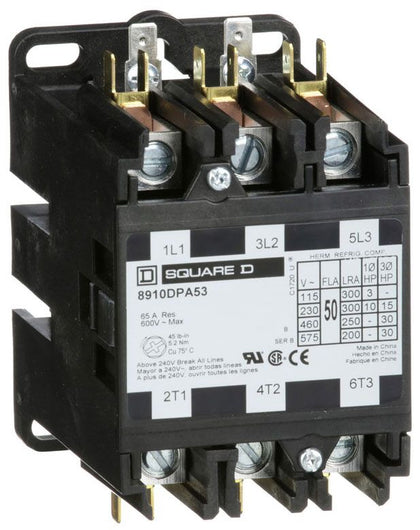

8910DPA53V09 is a Square D definite purpose contactor designed for motor control applications.8910DPA53V09 features a 3-pole configuration rated at 50 amperes with a coil voltage of 208/240VAC at 60Hz (220VAC at 50Hz). It is panel mounted and suitable for use in HVAC, refrigeration, and food service equipment. This contactor supports up to 600V and is UL Recognized and CSA Certified for safety and reliability.

Key Specifications
• Amperage: 50A
• Voltage: 240V AC coil (208/240VAC 60Hz, 220VAC 50Hz)
• Poles: 3
• Phase: 3
• Mounting Type: Panel mount
• Contactor Type: Definite Purpose
• Interrupt Rating: Suitable for motor control applications
• Series/Frame: DPA
• Trip Unit: None (contactor)
• Certifications: UL Recognized, CSA Certified
• Terminals: Double quick connect
• Horsepower Ratings: 15 HP at 230V 1-phase, 30 HP at 460V 3-phase

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 220 VAC coil.

Specifications

• Part Number: 8910DPA53V09
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA5
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• Horse Power : 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-15 hp 230 V AC, 3 phases-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 220V
• Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
• Coil Voltage Minimum : 220V
• Frequency : 50 Hz

Product Data

• UPC : 785901080732
• GTIN : 00785901080732
• Country of Origin : China
• Dimensions : 2.56 in x 4.06 in
• Weight : 1.5
• Certification : CSA, RoHS, UL Listed
