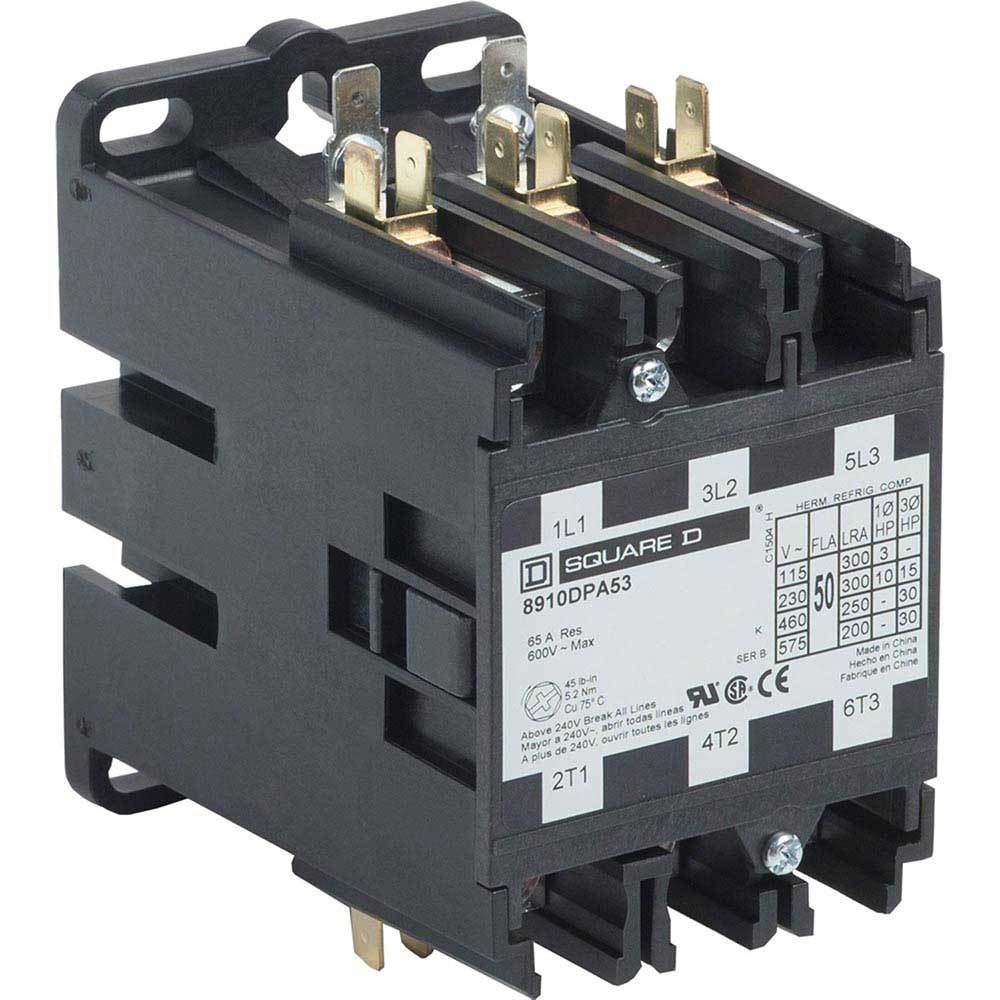

8910DPA53V06 - Square D 50A 480V 3 Pole 3 Phase Definite Purpose Contactor Panel Mount

8910DPA53V06

8910DPA53V06 is a Square D definite purpose contactor designed for motor control applications with a 50 amp rating and 3 poles.This contactor supports 3-phase power with a voltage rating up to 600V AC and a coil voltage of 480V AC at 60Hz (440V AC at 50Hz). It is suitable for use in heating, air conditioning, refrigeration, data processing, and food service equipment. The device features a panel mounting type and is UL Recognized and CSA Certified, ensuring compliance with industry safety standards.

• Amperage: 50A
• Voltage: 480V AC coil, 600V max operational voltage
• Poles: 3
• Phase: 3-phase
• Mounting Type: Panel mount
• Contactor Type: Definite purpose
• Horsepower Ratings: 3HP at 115V, 10HP at 230V, 15HP at 230V, 30HP at 460/575V
• Interrupt Rating: Suitable for motor loads
• Series/Frame: DPA
• Certifications: UL Recognized, CSA Certified
• Electrical Connection: Quick connect binder head screw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Definite Purpose Contactor includes a 440 VAC coil.

Specifications

• Part Number: 8910DPA53V06
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Class 8910
• Type : DPA5
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• Horse Power : 3 hp 115 V AC, 1 phase-10 hp 230 V AC, 1 phase-15 hp 230 V AC, 3 phases-30 hp 460 V AC, 3 phases-30 hp 575 V AC, 3 phases
• Aux Contacts : 3 NO
• Coil Voltage Maximum : 480V
• Full Load Amps : Full Load Amps-Inductive 50A Full Load Amps-Resistive 65A
• Coil Voltage Minimum : 440V
• Frequency : 50/60 Hz

Product Data

• UPC : 785901081128
• GTIN : 00785901081128
• Country of Origin : China
• Dimensions : 4.1 in (105 mm) x 2.6 in (65 mm) x 3.7 in (93 mm) (Height x Width x Depth)
• Weight : 1.59
• Certification : CSA, REACH, RoHS, UL Listed
