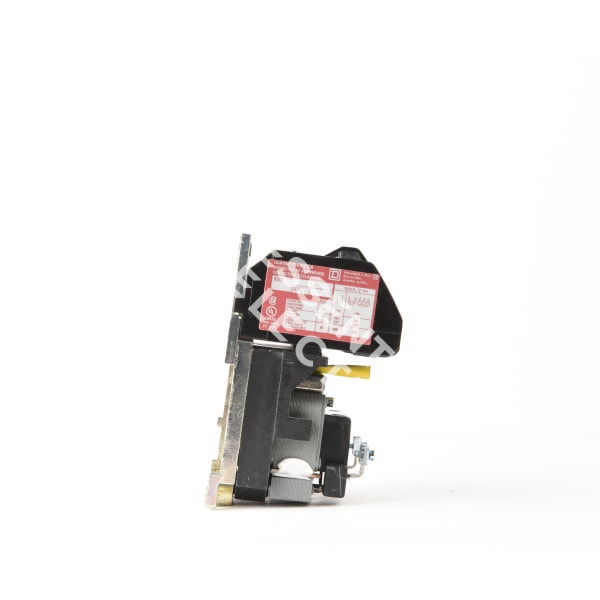

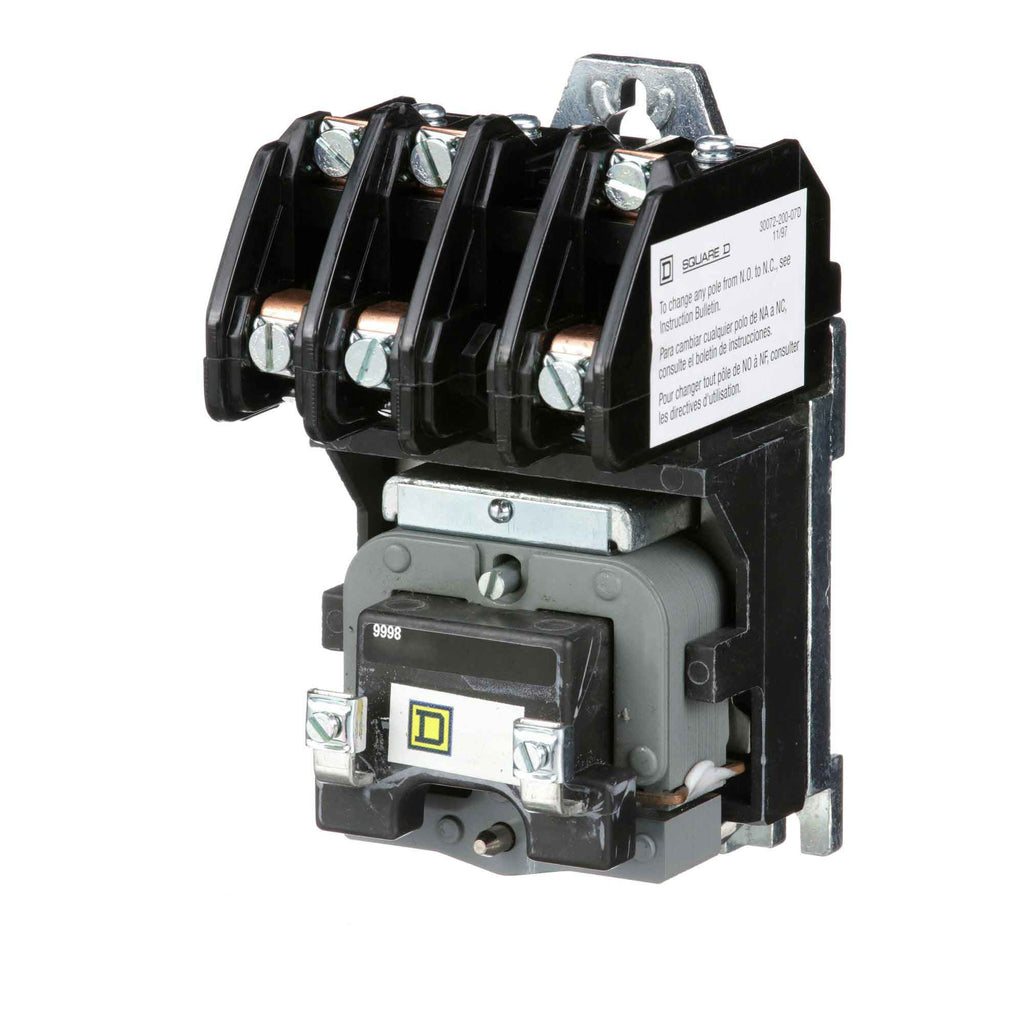

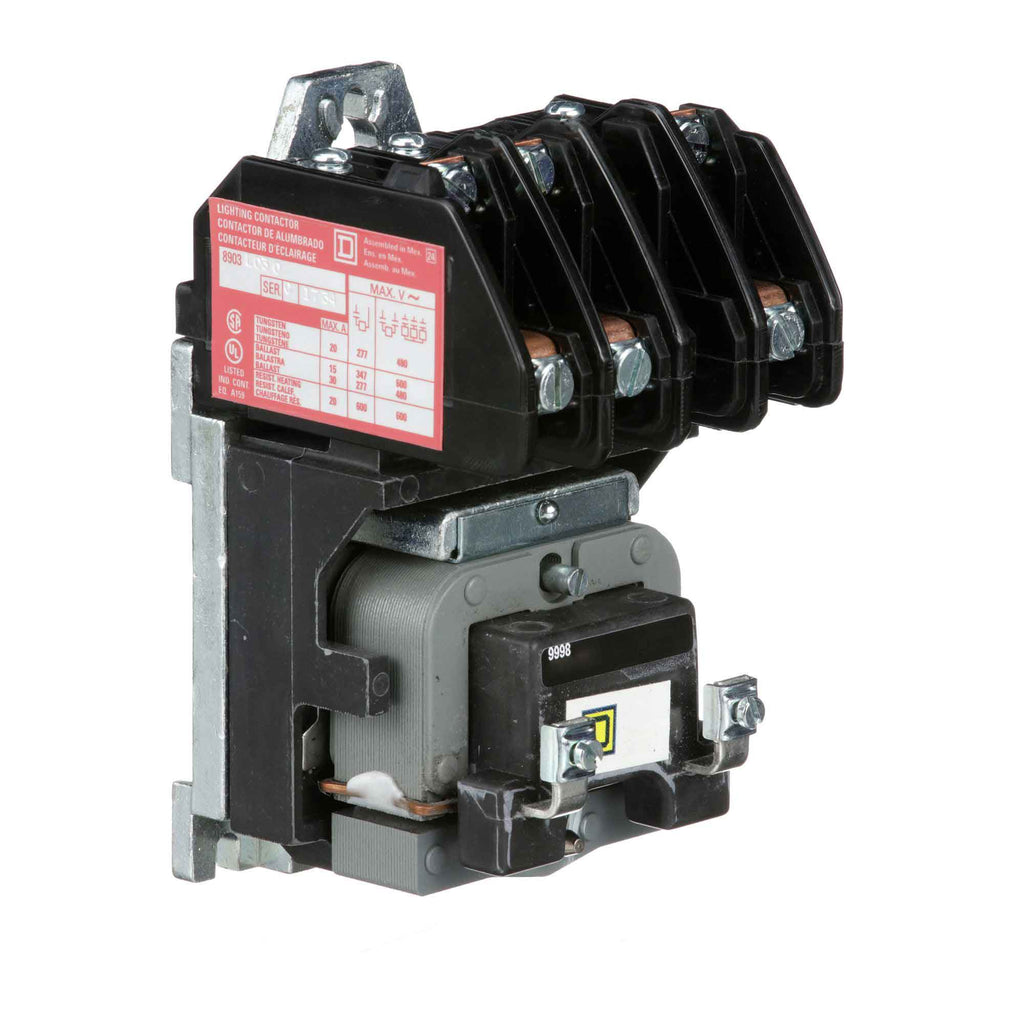

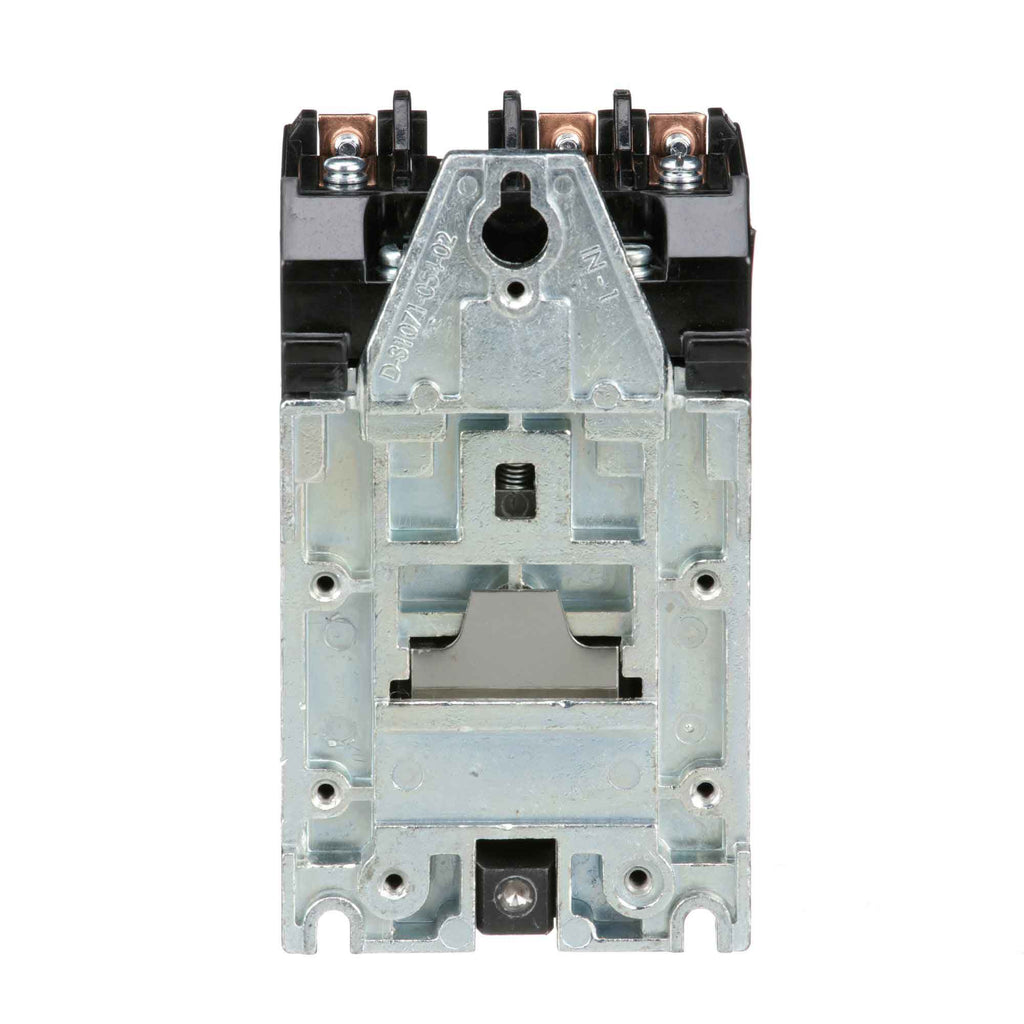

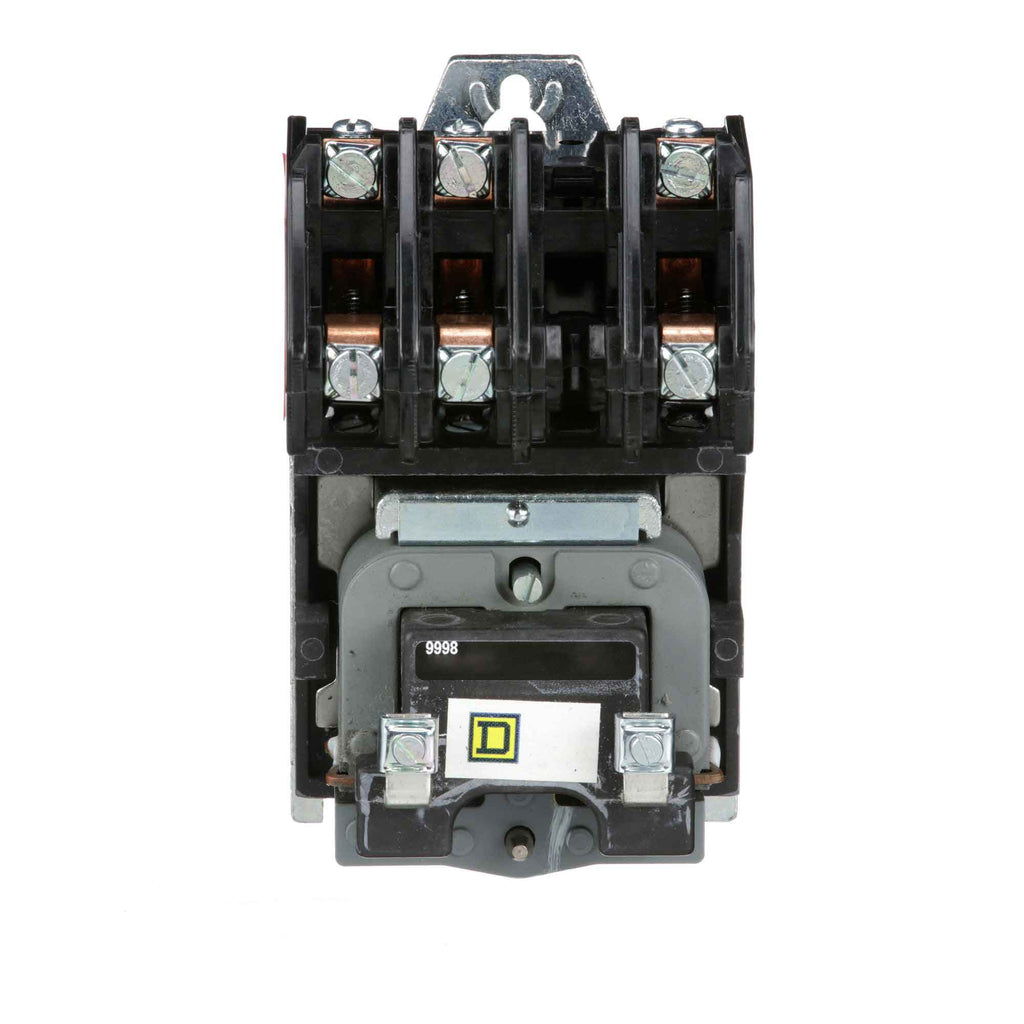

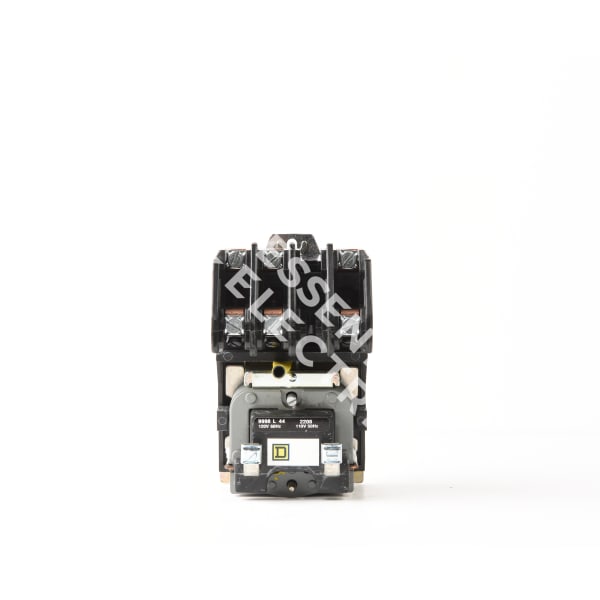

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Contactor
- Series
- Class 8903
- Frame
- L
- Rated current
- 30
- Voltage
- 600V
- Poles
- 3
- Phases
- 3
- Coil voltage
- 277 V
- Country of origin
- Mexico
- Coil Voltage Maximum
- 277
- Full Load Amps
- 30 A
- Frequency
- 60 Hz
Show all specifications (5 more)
- UPC
- 785901459231
- GTIN
- 00785901459231
- Dimensions
- 5 in (127 mm) x 2.9 in (73 mm) x 3.1 in (79 mm) (Height x Width x Depth)
- Weight
- 2.791
- Certification
- CSA, REACH, RoHS, UL Listed
Product description & additional details
8903LO30V04
8903LO30V04 is a Square D Class 8903 electrically held lighting contactor designed for motor control applications.This 3-pole, 3-phase contactor features a 30 amp rating, 600 VAC maximum voltage, and a 277 VAC coil for reliable switching in lighting and motor circuits.
- Key Specifications
- Manufacturer: Square D
- Part Number: 8903LO30V04
- Category: Motor Control Lighting Contactor
- Amperage: 30 Amps
- Voltage Rating: 600 VAC maximum
- Coil Voltage: 277 VAC
- Number of Poles: 3
- Contact Configuration: 3 Normally Open (3NO)
- Phase: 3
- Mounting Type: Surface Mount
- Type: Electrically Held, NEMA Open Type
- Series/Frame: Class 8903
Additional Information
This Electrically Held Multipole Lighting Contactor includes a 277 VAC coil.
Specifications
- Part Number: 8903LO30V04
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Class 8903
- Type : L
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 277
- Full Load Amps : 30 A
- Frequency : 60 Hz
Product Data
- UPC : 785901459231
- GTIN : 00785901459231
- Country of Origin : Mexico
- Dimensions : 5 in (127 mm) x 2.9 in (73 mm) x 3.1 in (79 mm) (Height x Width x Depth)
- Weight : 2.791
- Certification : CSA, REACH, RoHS, UL Listed
Technical Documents
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
