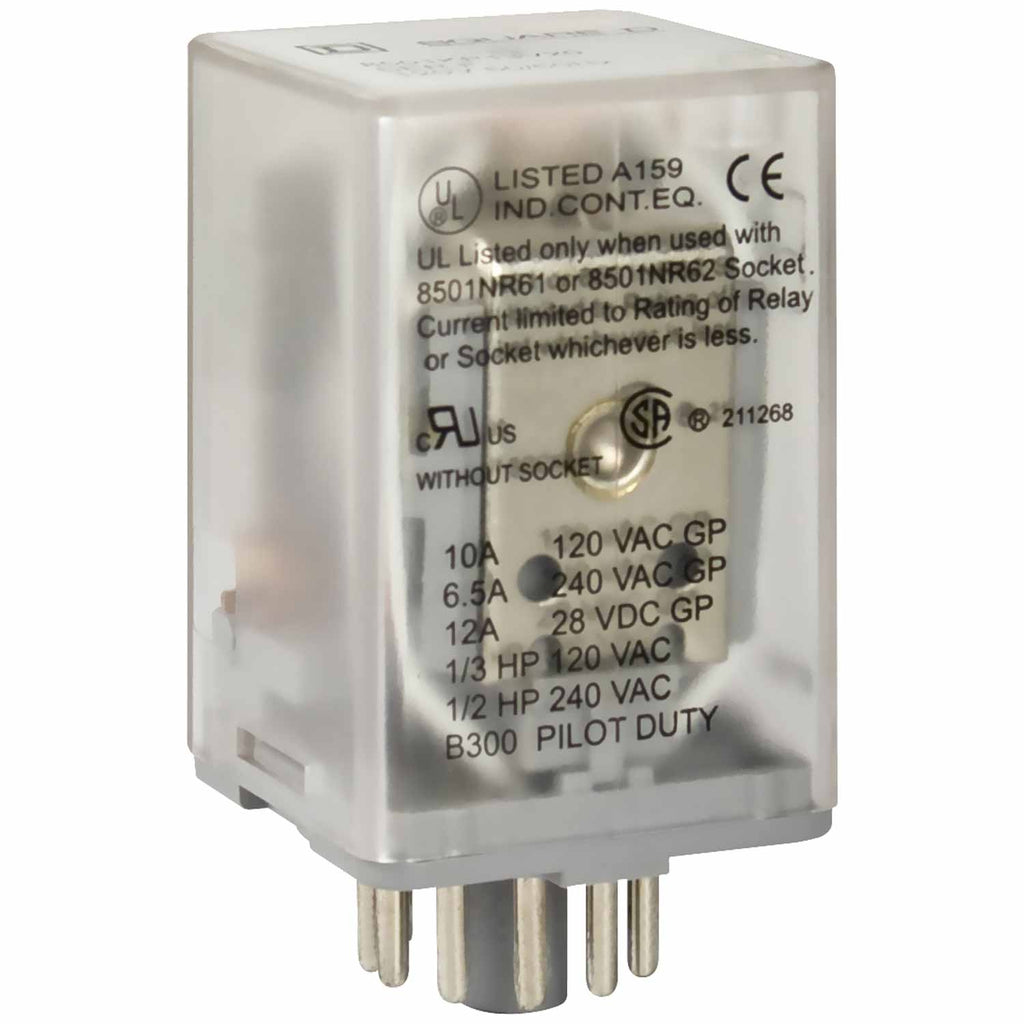

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Schneider Electric
- Brand
- Square D
- Sub-Category
- Motor Control Part And Accessory
- Series
- Class 8501
- Frame
- 8501
- Country of origin
- China
- Section
- Relays
- UPC
- 785901480754
- GTIN
- 00785901480754
- Dimensions
- Depth 1.39 in (35.31 mm) Width 1.39 in (35.31 mm) Height 2.66 in (67.56 mm)
- Weight
- 5
Product description & additional details
8501KP12V14
8501KP12V14 is a Square D Class 8501 plug-in relay designed for general purpose motor control applications. This compact relay features a 24VAC coil and is built for reliable switching in industrial environments. The 8501KP12V14 relay offers a DPDT contact configuration with tubular/solder terminals and an octal base for easy installation. It is suitable for use in control circuits requiring 10A contact rating and 24VAC coil operation. The relay is designed for plug-in mounting and is commonly used in motor control panels and industrial automation systems.
- Part Number: 8501KP12V14
- Manufacturer: Square D
- Series: Class 8501
- Coil Voltage: 24VAC
- Contact Rating: 10A
- Contact Configuration: DPDT
- Mounting Type: Plug-In
- Terminal Type: Tubular/Solder
- Base Type: Octal
- Frequency: 50/60 Hz
- Weight: 0.2 lbs
- UL Listed
Specifications
- Part Number: 8501KP12V14
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Section : Relays
- Family : Class 8501
- Type : 8501
Product Data
- UPC : 785901480754
- GTIN : 00785901480754
- Country of Origin : China
- Dimensions : Depth 1.39 in (35.31 mm) Width 1.39 in (35.31 mm) Height 2.66 in (67.56 mm)
- Weight : 5
Technical Documents
