3VA4160-5ED34-0AA0 - Siemens 60A 480V 3-Pole Molded Case Circuit Breaker, 35kA Interrupt Rating, 3VA41 Frame

3VA4160-5ED34-0AA0

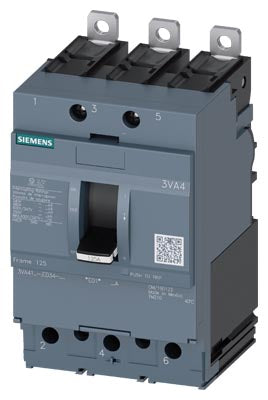

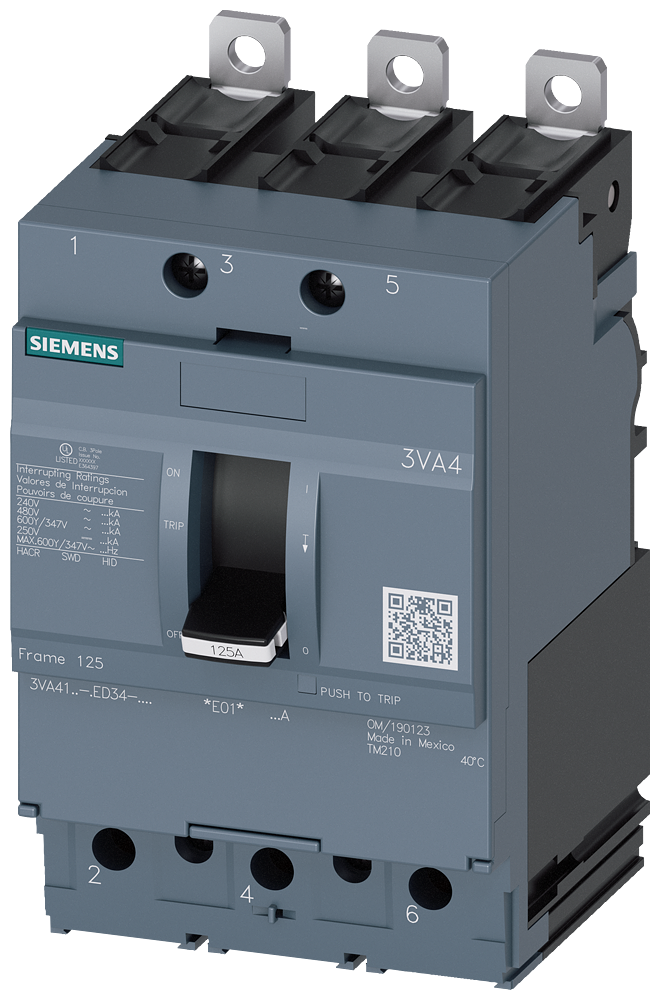

3VA4160-5ED34-0AA0 is a Siemens 3VA4 molded case circuit breaker rated at 60A with 3 poles and 35kA interrupting capacity at 480V.

This 3-pole circuit breaker features thermal-magnetic trip unit TM210 with fixed thermal and fixed magnetic settings (FTFM), line protection, overload protection Ir=60A, and short-circuit protection Ii=10xIn. It offers bolt-on mounting with load side lug terminals (clamp connection), suitable for reverse feed applications, and supports operational voltage up to 690V AC. The UL frame 125 design provides breaking capacities of 85kA@240V, 35kA@480V, and meets mechanical service life of 15,000 cycles.

Key Specifications

• Manufacturer: Siemens
• Part Number: 3VA4160-5ED34-0AA0
• Amperage: 60A
• Poles: 3
• Frame: 3VA4 UL frame 125
• Interrupt Rating: 35kA @ 480V
• Voltage: 690V AC max
• Trip Unit: TM210 thermal-magnetic, FTFM
• Overload Protection: Ir=60A fixed
• Short-Circuit Protection: Ii=10xIn fixed
• Mounting: Bolt-on, clamp connection
• Breaking Capacity: 85kA @ 240V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3VA4160-5ED34-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600V AC
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210

Product Data

• UPC : 804766944000
• GTIN : 00804766944000
• Country of Origin : Mexico
• Dimensions : 6.299 x 5.315 x 3.465 inch
• Weight : 1.638
• Standards : UL Listed
• Certification : UL Listed
