3VA4150-5ED34-0AA0 - Siemens 50A 600V 3-Pole Molded Case Circuit Breaker 3VA4 Frame TM210 Trip Unit Class M 35kA @ 480V

3VA4150-5ED34-0AA0

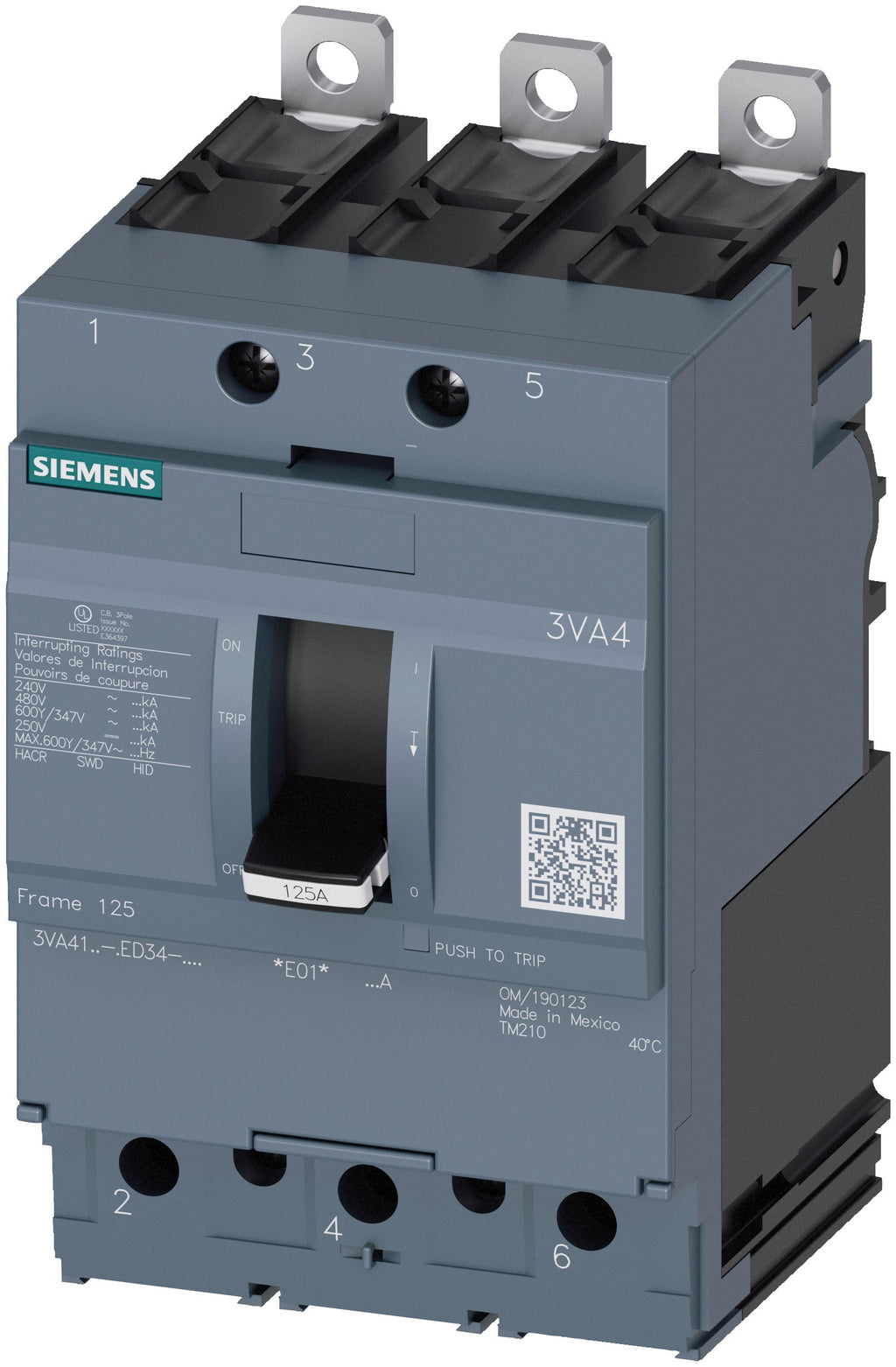

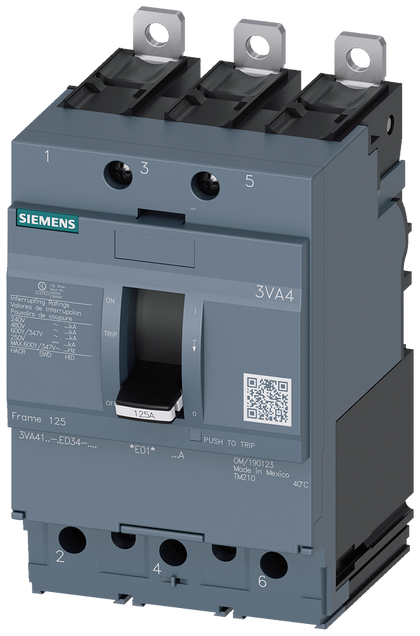

3VA4150-5ED34-0AA0 is a Siemens 3-pole molded case circuit breaker designed for reliable system protection with a 50 ampere rating.This circuit breaker features a 3VA4 UL Frame 125 design with a breaking capacity of 35 kA at 480 V, line protection TM210 trip unit, and FTFM function. It supports 600 V rated voltage and provides overload and short-circuit protection with fixed settings (Ir=50 A, Ii=10 x In). The breaker is UL 489 listed and suitable for HVAC and HID applications.

Key Specifications
• Amperage: 50 A
• Voltage Rating: 600 V AC
• Number of Poles: 3
• Frame/Series: 3VA4 UL Frame 125
• Interrupt Rating: 35 kA @ 480 V (Class M)
• Trip Unit: TM210
• Functions: FTFM (Fixed Thermal Fixed Magnetic)
• Mounting Type: Molded Case
• Protection Type: Overload and Short-Circuit
• Certifications: UL 489, HACR, HID
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3VA4150-5ED34-0AA0
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : 3VA
• Voltage : 600V AC
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI
• Terminal Connection : Load Side Lug
• Frame Size : 125
• Temp Rating : -13¡F-158¡F (-25¡C-70¡C)
• Protection : Thermal Magnetic
• Trip Type : TM210



Product Data

• UPC : 804766943942
• GTIN : 00804766943942
• Country of Origin : Mexico
• Dimensions : 6.299 x 5.315 x 3.465 inch
• Weight : 1.638 lb
• Standards : UL Listed
• Certification : UL Listed
