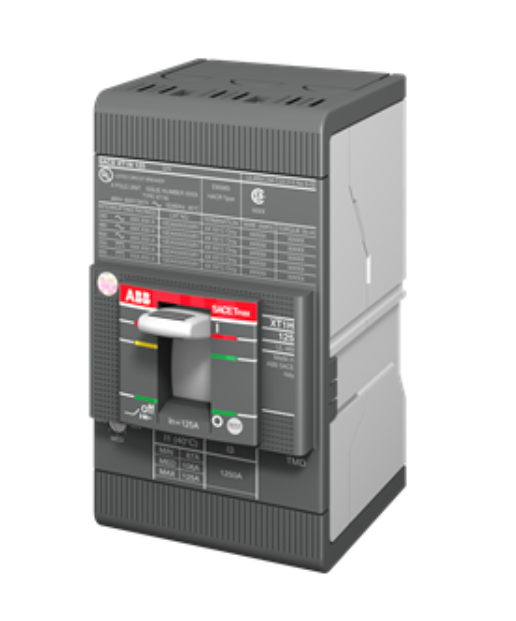

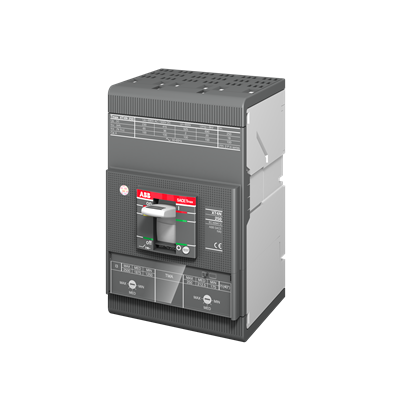

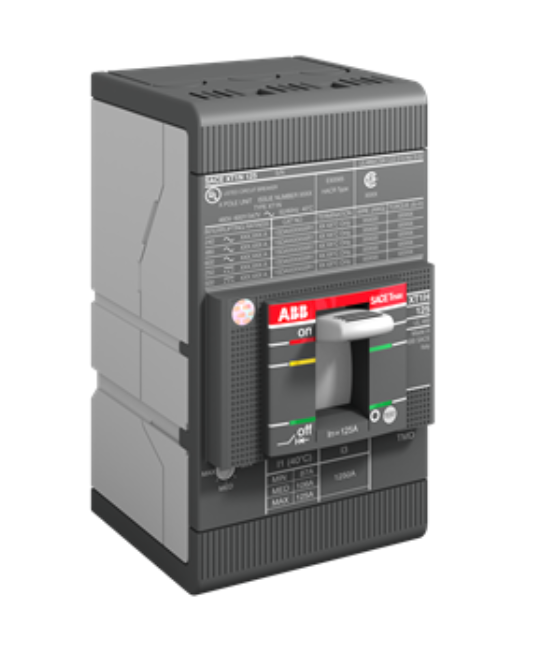

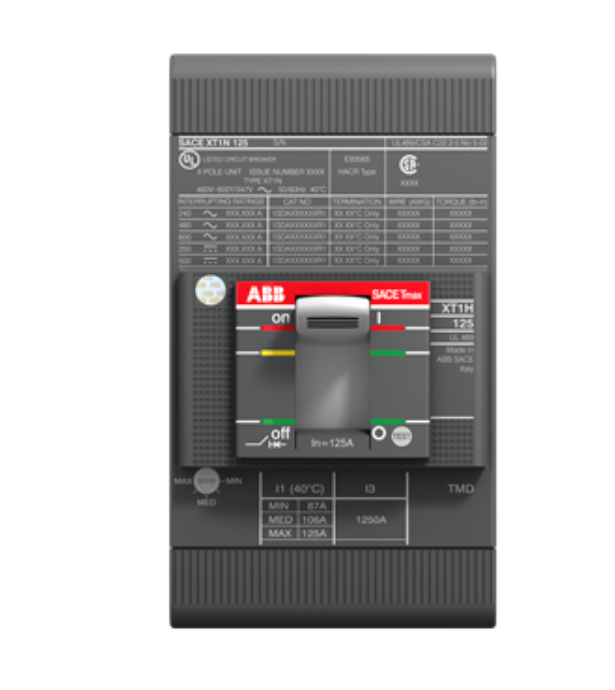

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- ABB
- Sub-Category
- Molded Case
- Series
- SACE Tmax XT
- Frame
- XT1SU
- Rated current
- 15
- Voltage
- 600Y/347 VAC
- Poles
- 3
- Phases
- 3
- Interrupting rating
- 35kA@480V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Bolt-On
- Frequency
- 50/60 Hz
- Standards
- UL, CSA
- Country of origin
- United States
Show all specifications (3 more)
- Weight
- 5 lb
- Certification
- UL, CSA
- Wire Size
- AWG 10 to AWG 2/0, Cu/Al
Product description & additional details
XT1SU3015AFD000XXX
XT1SU3015AFD000XXX is an ABB Tmax XT molded case circuit breaker with thermal magnetic trip protection.XT1SU3015AFD000XXX features a 15A rating, 3 poles, XT1 frame up to 125A, and 600Y/347 VAC rating in the Tmax XT series with fixed thermal magnetic trip unit and front terminals.
- Part Number: XT1SU3015AFD000XXX
- Manufacturer: ABB
- Series: Tmax XT
- Frame: XT1 125A
- Amperage: 15A
- Voltage: 600Y/347 VAC
- Poles: 3
- Trip Unit: Thermal Magnetic Fixed
- Frequency: 50/60 Hz
- Mounting: Fixed, Front Terminals
Specifications
- Part Number: XT1SU3015AFD000XXX
- Manufacturer : ABB
- Brand : ABB
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : SACE Tmax XT
- Type : XT1SU
- Voltage : 600Y/347 VAC
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- Country of Origin : United States
- Weight : 5 lb
- Standards : UL, CSA
- Certification : UL, CSA
- Wire Size : AWG 10 to AWG 2/0, Cu/Al
