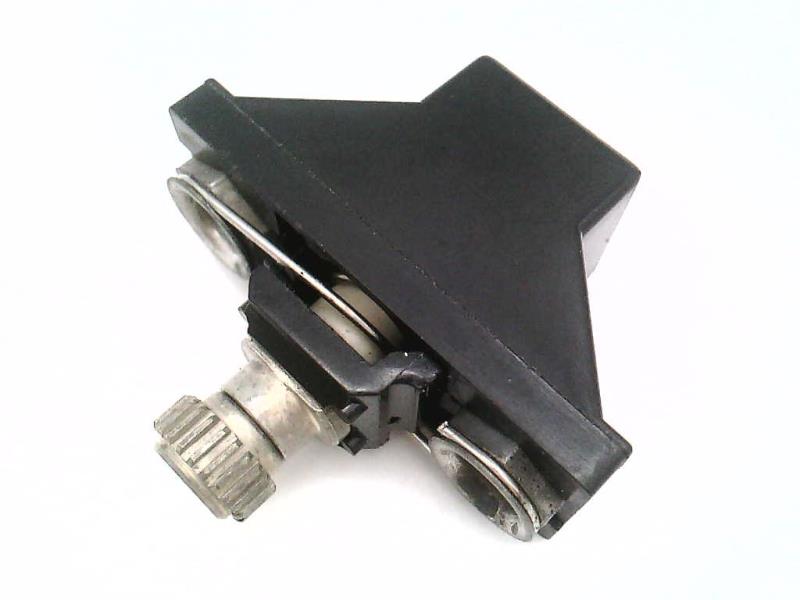

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Allen-Bradley
- Sub-Category
- Heater Element
- Series
- W Series
- Frame
- W
- Full Load Amp Minimum
- 16.2
- Full Load Amp Maximum
- 20.5
- UPC
- 781180154386
- Weight
- 0.03 lb
Product description & additional details
W58
W58 is an Allen-Bradley W Series thermal overload heater element designed for use with NEMA overload relays and motor control applications. This heater element provides Class 20 trip protection for motors requiring reliable overload protection in general industrial environments.Engineered for compatibility with Allen-Bradley Bulletin 500 line starters, the W58 heater element is suitable for eutectic alloy type overload relays. It features a manual reset type and is built for use in standard motor control circuits where precise thermal protection is required. The element is designed for applications with a full load current range of 16.2 to 20.5 amps and is commonly used in conjunction with magnetic motor starters and contactors.
- Part Number: W58
- Manufacturer: Allen-Bradley
- Series: W Series
- Type: Thermal Overload Heater Element
- Full Load Current Range: 16.2-20.5A
- Application: NEMA Overload Relays
- Compatibility: Bulletin 500 Line Starters
- Reset Type: Manual
- Alloy Type: Eutectic
- Protection Class: Class 20
- Mounting: Standard for 500 Line Starters
- Use: Motor Control, Overload Protection
Specifications
- Part Number: W58
- Manufacturer : Allen-Bradley
- Brand : Allen-Bradley
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : W Series
- Type : W
- Full Load Amp Minimum : 16.2
- Full Load Amp Maximum : 20.5
Product Data
- UPC : 781180154386
- Weight : 0.03 lb
