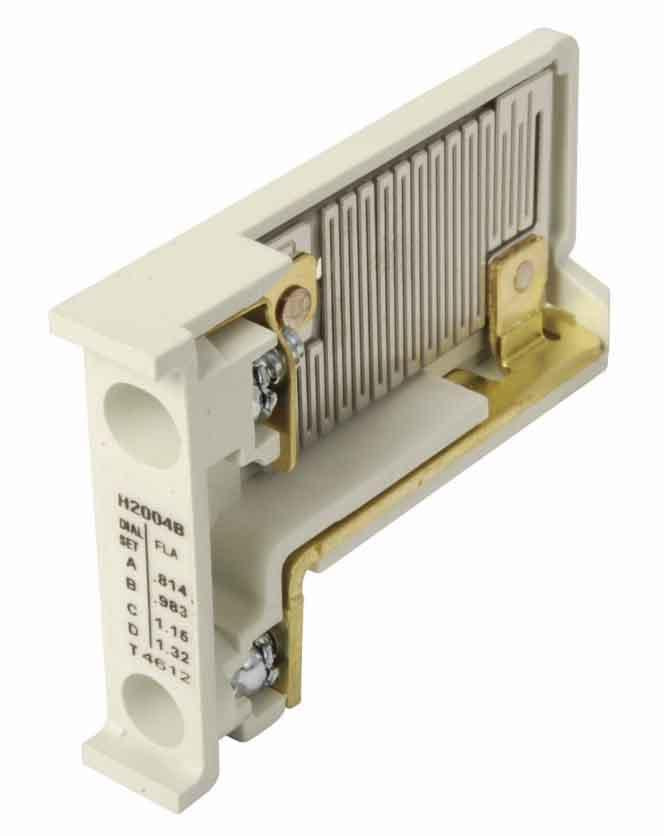

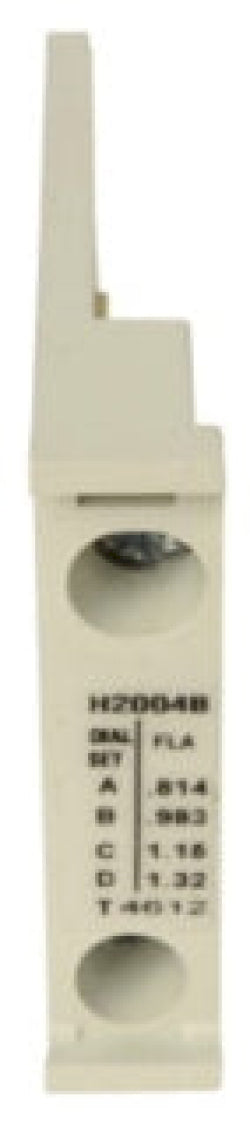

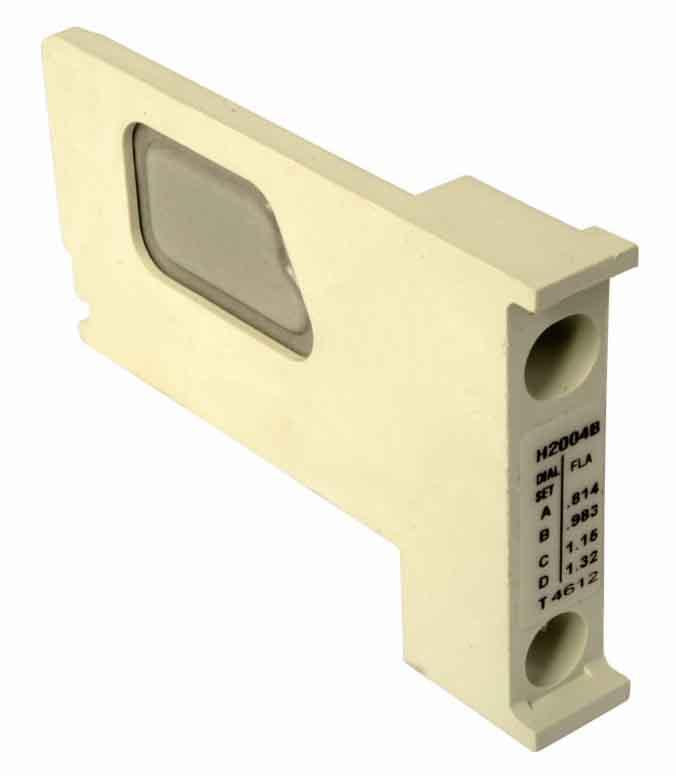

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Heater Element
- Series
- Freedom Series
- Frame
- H
- Poles
- 3
- Country of origin
- Dominican Republic
- Full Load Amp Minimum
- 6.75
- Full Load Amp Maximum
- 11
- Full Load Amps
- 6.75 to 11
- UPC
- 078211396756
- GTIN
- 00782113967561
- Dimensions
- 1.8 in x 3.1 in x 1.8 in (Length/Depth x Height x Width)
- Weight
- 0.2 lb
- Certification
- CSA Certified,UL Listed
Product description & additional details
H2010B-3

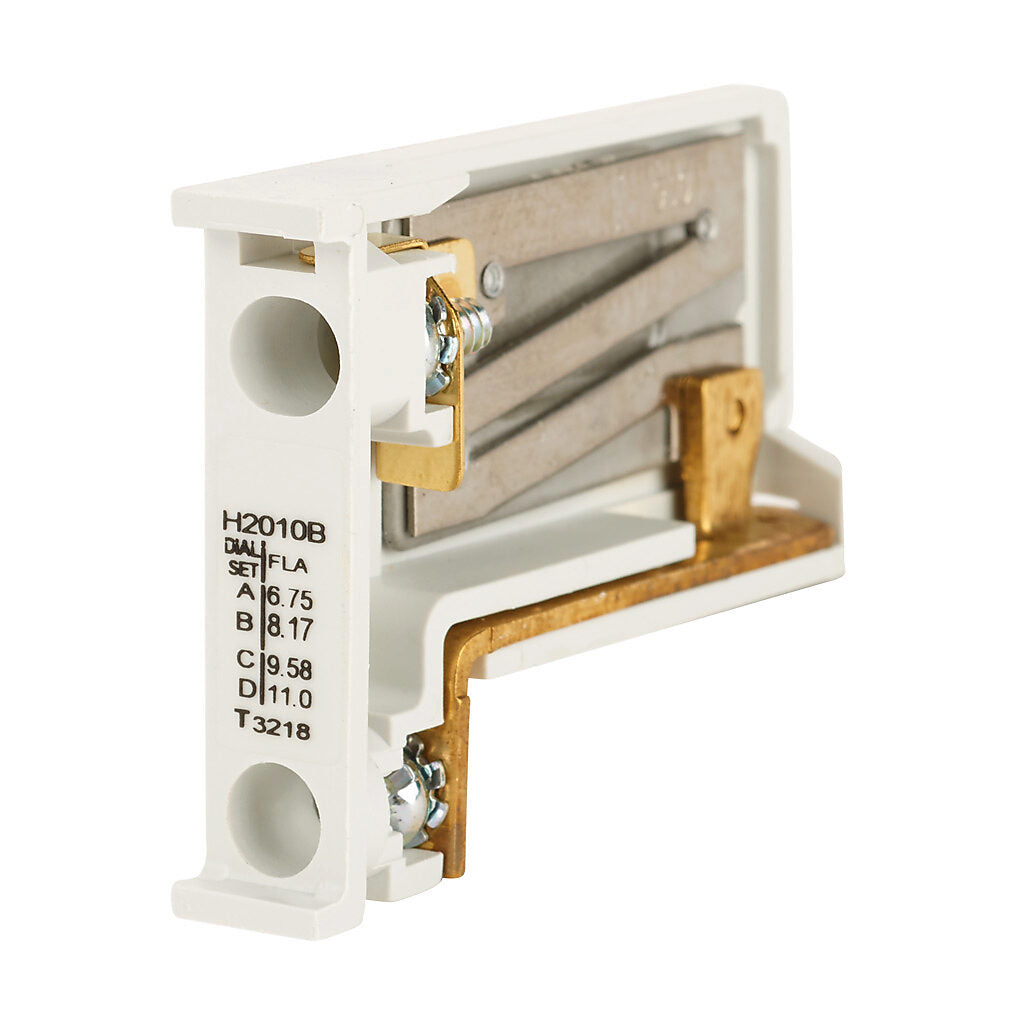

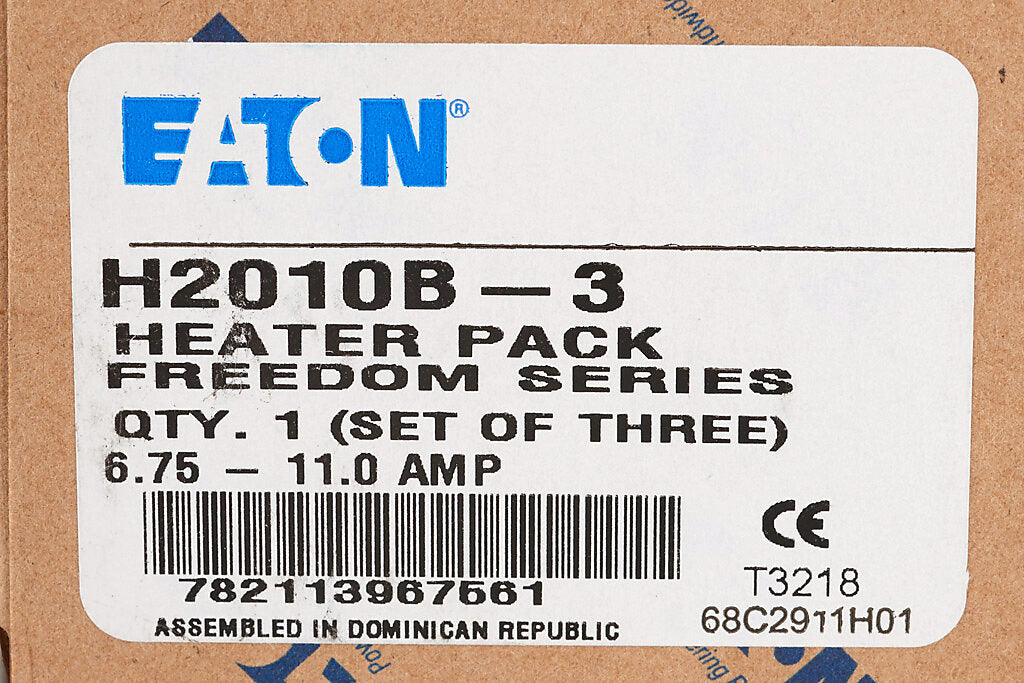

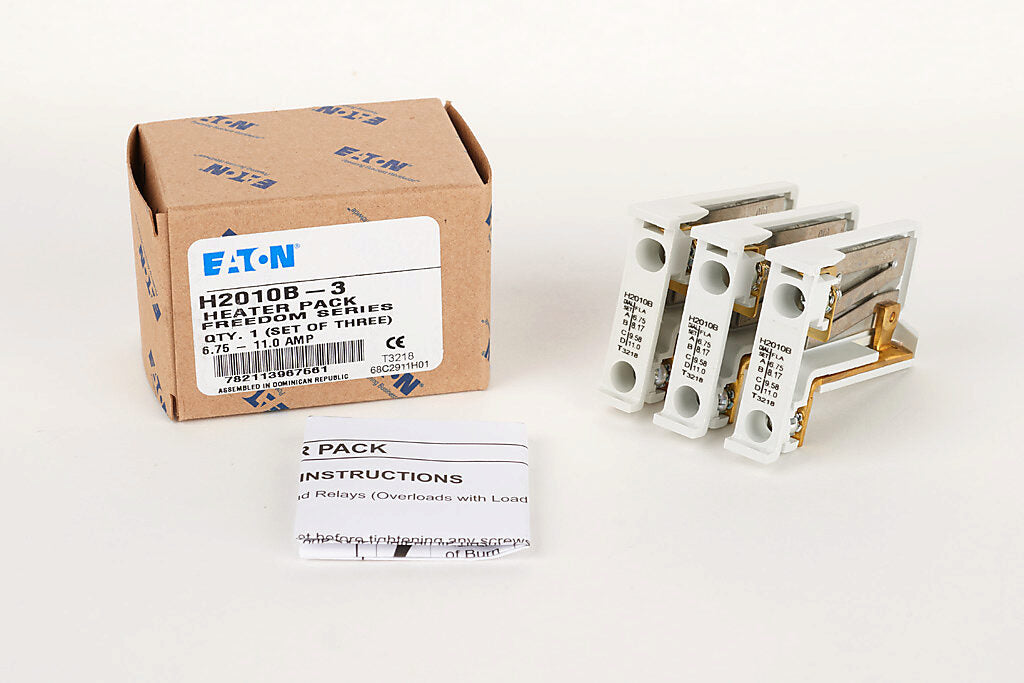

H2010B-3 is an Eaton Freedom NEMA heater coil designed for motor control applications with a full load ampere range up to 11A.

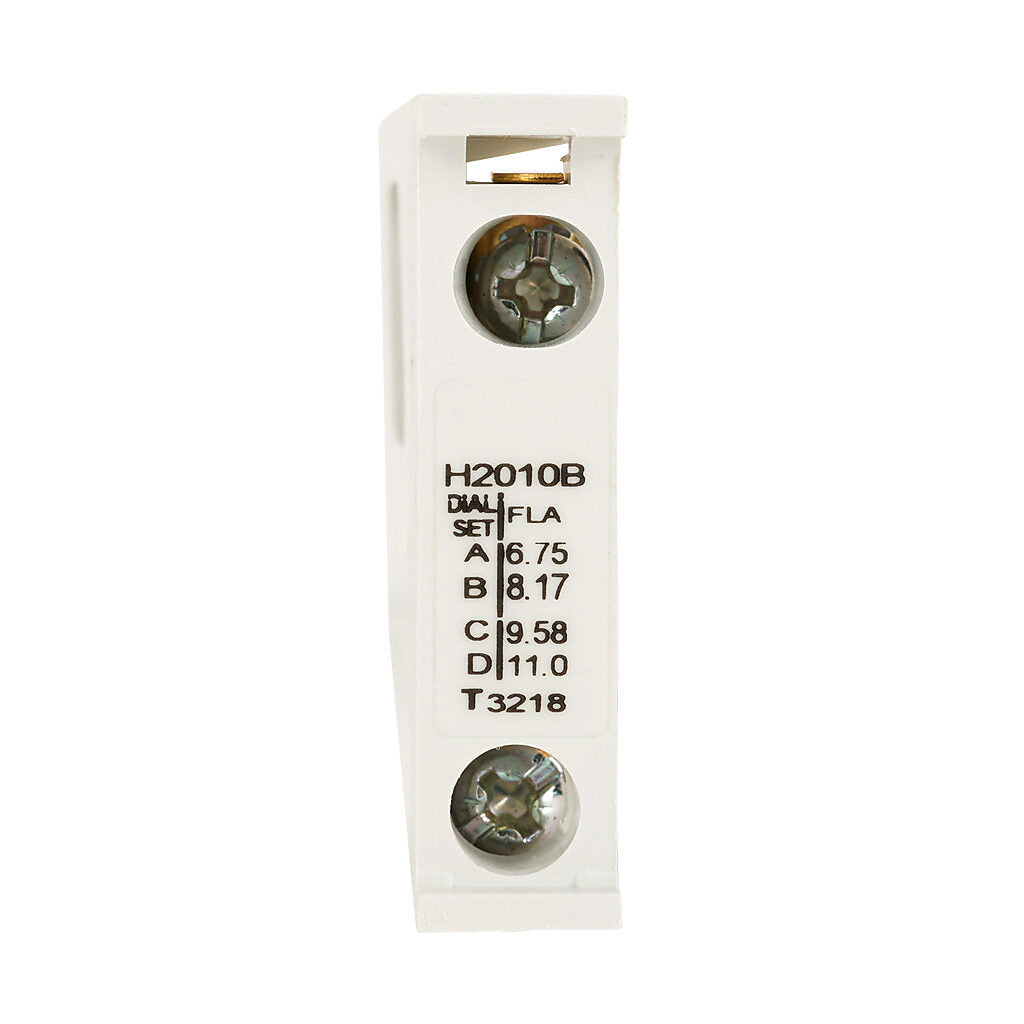

This heater coil features a Class 20 standard trip and is compatible with Eaton Freedom Series overload relays, providing reliable thermal protection for motors. It supports a full load range of 6.75A to 11A with dial positions A, B, C, and D, and meets NEMA and IEC certifications. The 3-pole design is suitable for NEMA 00/0/1/2 frames and overload relays rated 32 or 75A.
- Key Specifications
- Manufacturer: Eaton
- Part Number: H2010B-3
- Amperage: 6.75A to 11A full load range
- Poles: 3
- Trip Unit: Standard Trip, Class 20
- Series/Frame: Freedom Series, NEMA 00/0/1/2
- Certifications: NEMA, IEC
- Mounting Type: For use with Eaton Freedom overload relays
- Interrupt Rating: Compatible with overload relays rated 32 or 75A
- Dimensions: Approximately 3.1" x 1.8" x 1.8" (HxWxD)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: H2010B-3
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : Freedom Series
- Type : H
- Poles : 3
- Full Load Amp Minimum : 6.75
- Full Load Amp Maximum : 11
- Full Load Amps : 6.75 to 11
Product Data
- UPC : 078211396756
- GTIN : 00782113967561
- Country of Origin : Dominican Republic
- Dimensions : 1.8 in x 3.1 in x 1.8 in (Length/Depth x Height x Width)
- Weight : 0.2 lb
- Certification : CSA Certified,UL Listed
