Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Sub-Category
- Heater Element
- Series
- Freedom Series
- Frame
- H
- Country of origin
- Dominican Republic
- Full Load Amp Minimum
- 62.2
- Full Load Amp Maximum
- 84.6
- UPC
- 782113626611
- GTIN
- 00782113626611
- Dimensions
- 3.5 in x 2.1 in x 2.4 in (Length/Depth x Height x Width)
- Weight
- 0.2
- Certification
- UL Listed,CSA Certified
Product description & additional details
H2022-3

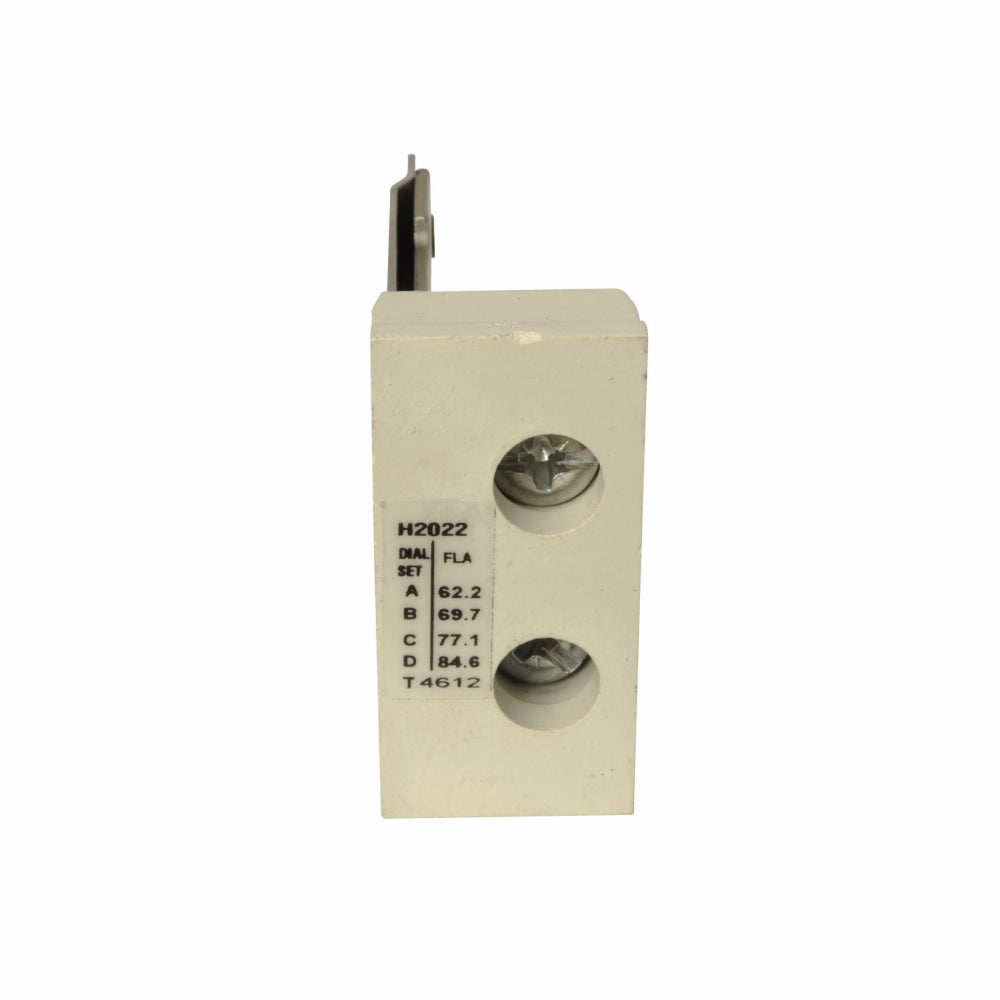

H2022-3 is an Eaton Freedom Standard Trip Heater Pack designed for motor control applications requiring reliable overload protection.This heater coil supports full load current ranges of 62.2A, 69.7A, 77.1A, and 84.6A selectable via dial positions A, B, C, and D respectively. It is compatible with NEMA starter sizes 3-4 and IEC sizes L-N (Series A). The pack features a standard trip, Class 20 overload relay rating of 105 or 144 amps, and is UL Listed and CSA Certified for safety and performance.
- Key Specifications
- Manufacturer: Eaton
- Part Number: H2022-3
- Type: Freedom Standard Trip Heater Pack
- Full Load Current Range: 62.2A to 84.6A (Dial positions A-D)
- Compatible Starter Sizes: NEMA 3-4, IEC L-N (Series A)
- Overload Relay Rating: 105 or 144 Amps
- Trip Type: Standard Trip, Class 20
- Certifications: UL Listed, CSA Certified
- Dimensions: 2.1" H x 2.4" W x 3.5" D
- Weight: 0.2 lb
Specifications
- Part Number: H2022-3
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : Freedom Series
- Type : H
- Full Load Amp Minimum : 62.2
- Full Load Amp Maximum : 84.6
Product Data
- UPC : 782113626611
- GTIN : 00782113626611
- Country of Origin : Dominican Republic
- Dimensions : 3.5 in x 2.1 in x 2.4 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : UL Listed,CSA Certified
