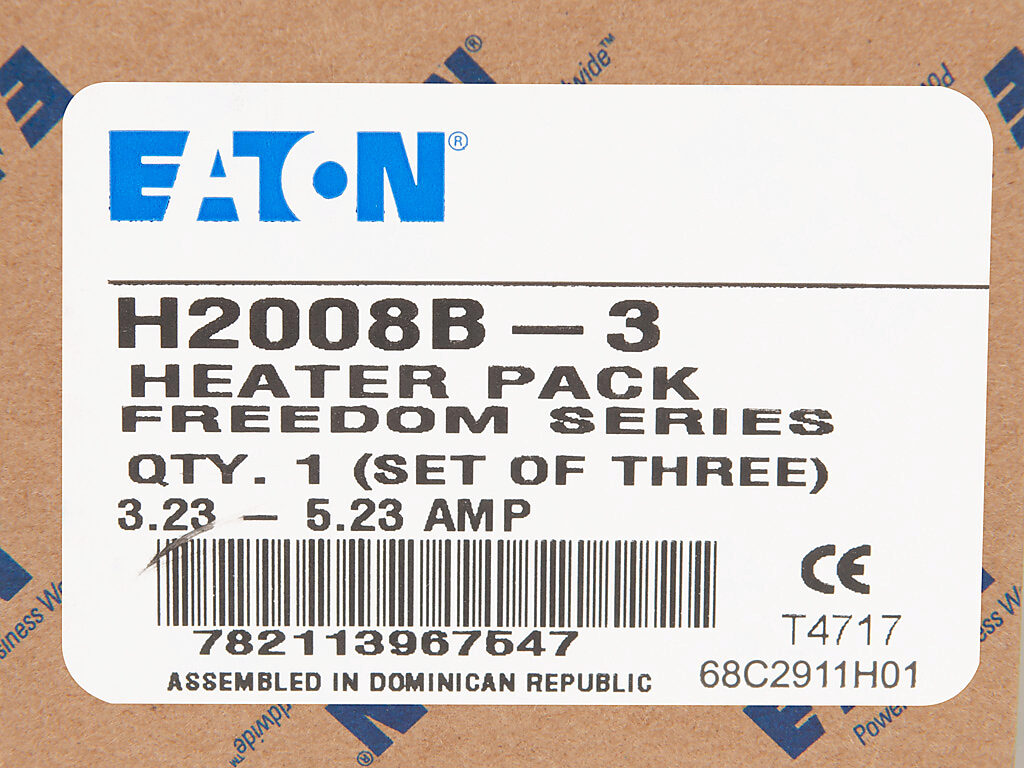

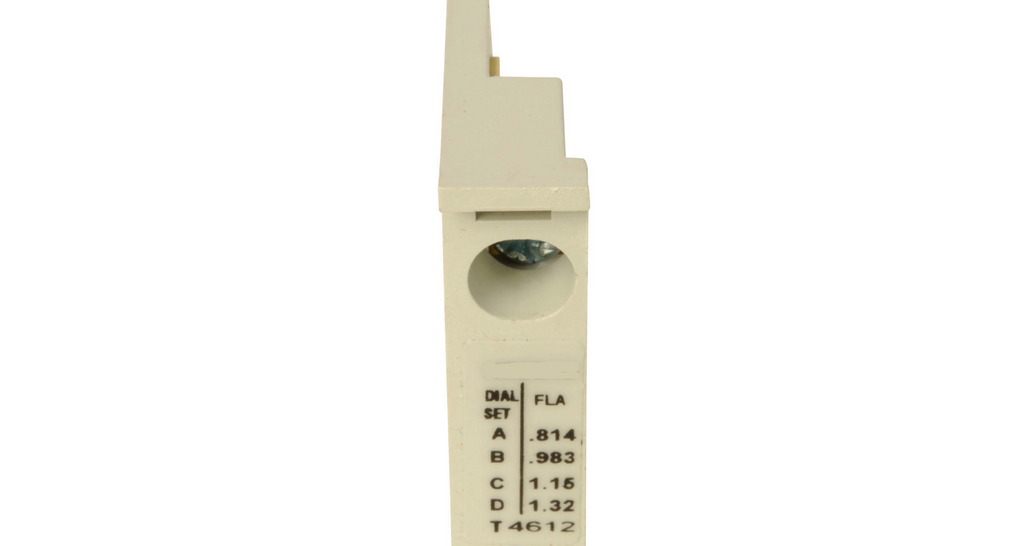

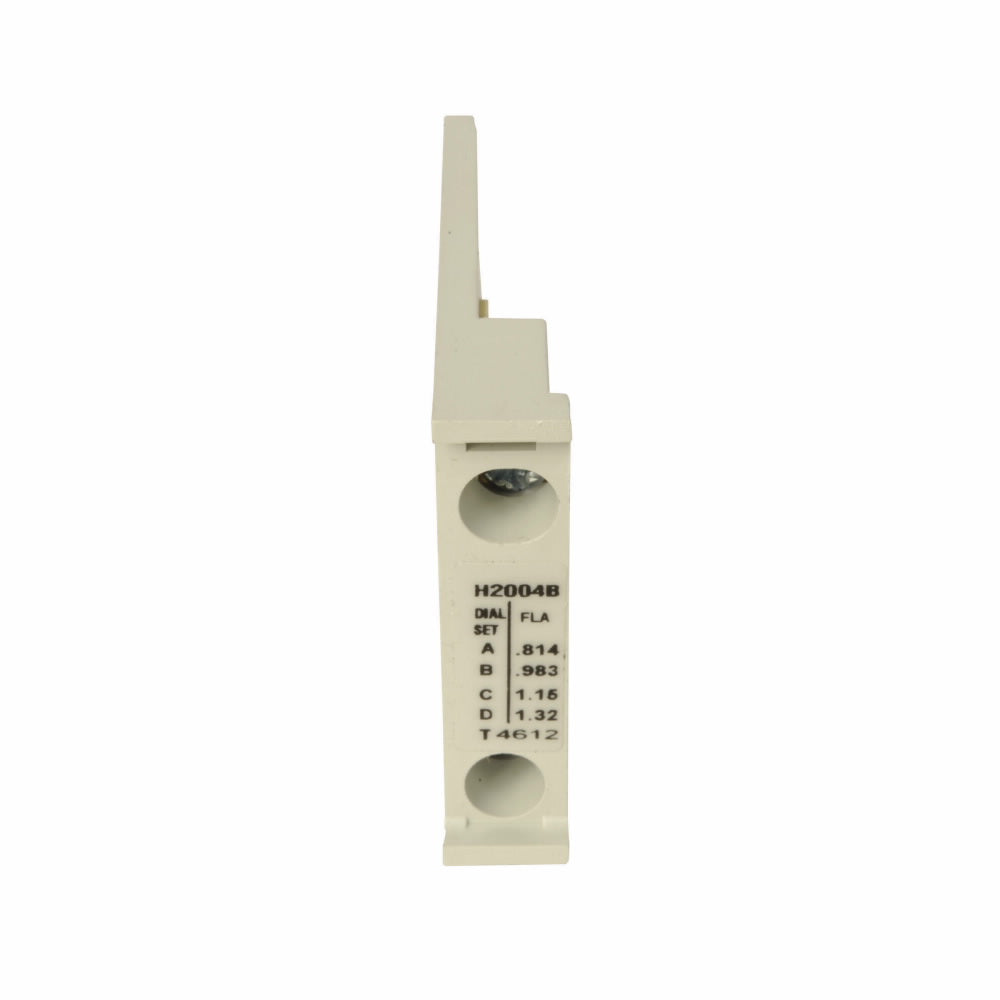

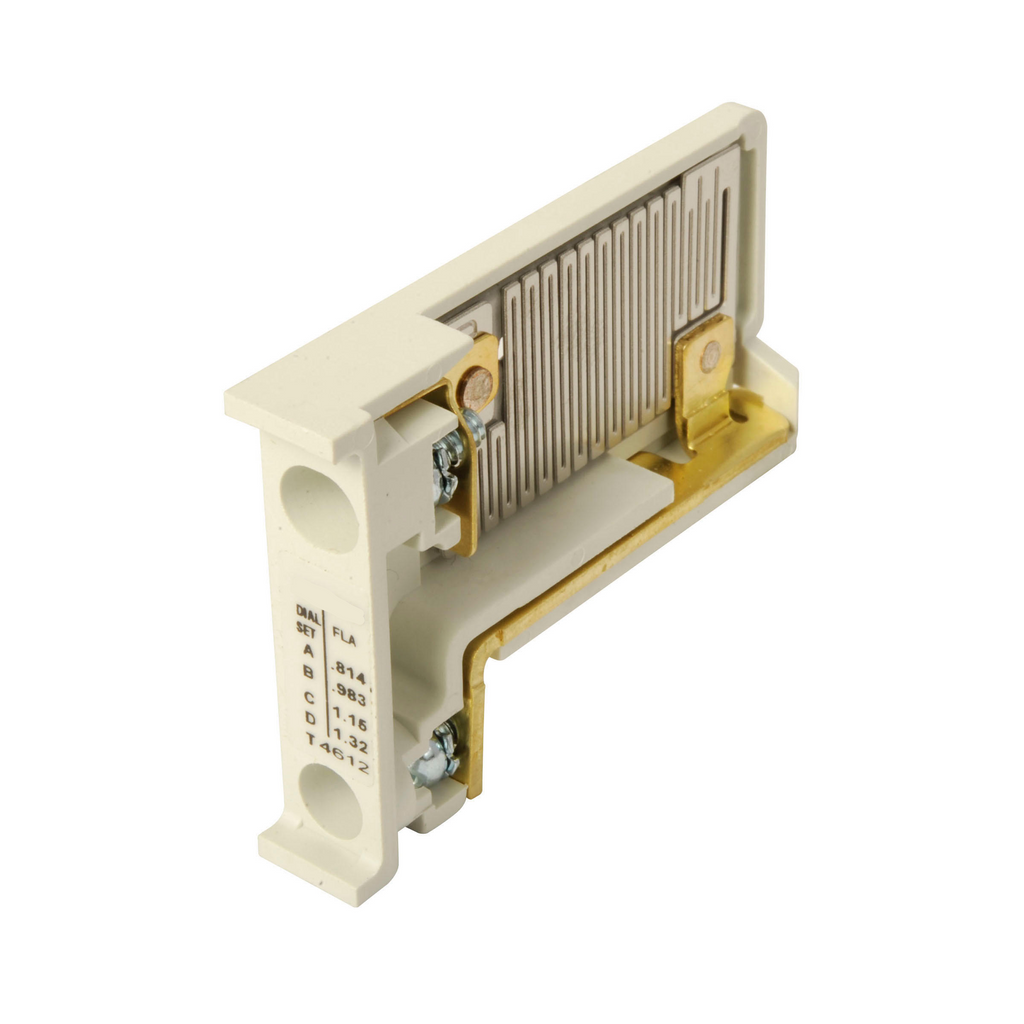

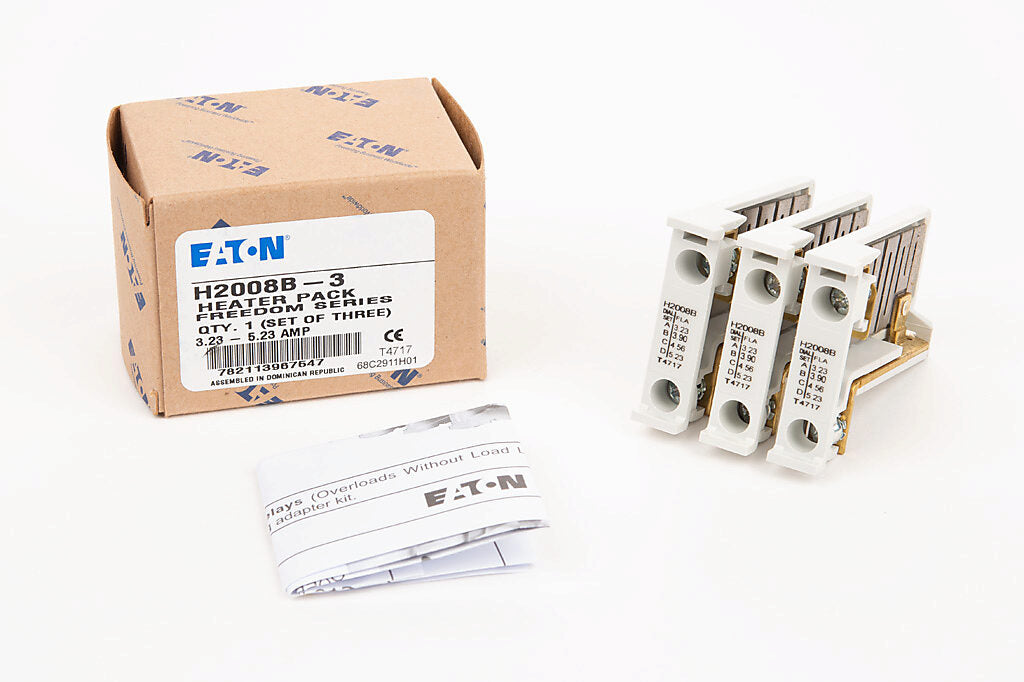

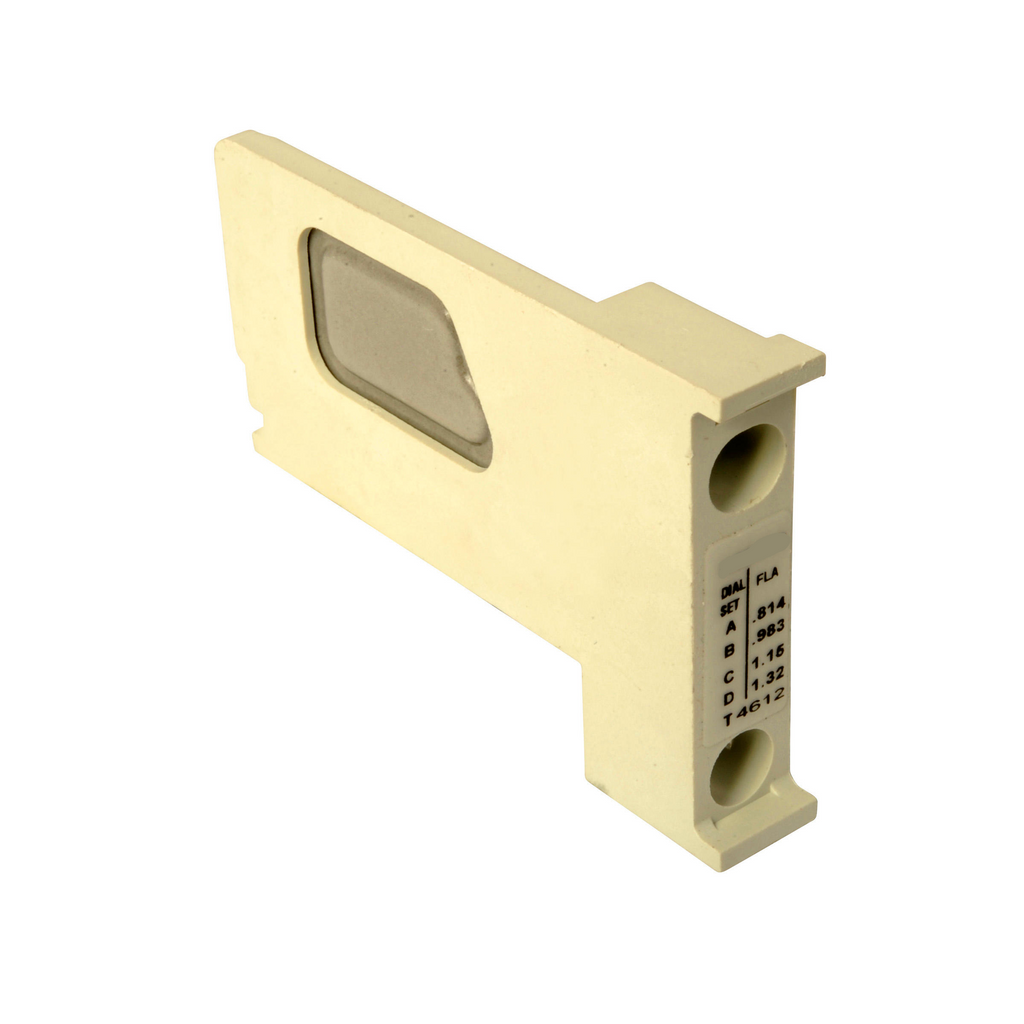

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Eaton
- Brand
- Cutler Hammer
- Sub-Category
- Heater Element
- Series
- Freedom Series
- Frame
- H
- Country of origin
- Dominican Republic
- Full Load Amp Minimum
- 3.23
- Full Load Amp Maximum
- 5.23
- Full Load Amps
- 3.23 to 5.23
- UPC
- 078211396754
- GTIN
- 00782113967547
- Dimensions
- 1.8 in x 3.1 in x 1.8 in (Length/Depth x Height x Width)
- Weight
- 0.2 lb
- Certification
- UL Listed,CSA Certified
Product description & additional details
H2008B-3
H2008B-3 is a Cutler Hammer NEMA heater coil designed for motor control applications with a Class 20 standard trip rating and adjustable full load amperage range from 3.23 to 5.23 amps.This heater coil is compatible with Eaton Freedom series overload relays sized 00, 0, 1, and 2, supporting relay currents of 32 or 75 amps. It provides reliable motor overload protection with a standard trip characteristic suitable for various motor starter applications.
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: H2008B-3
- Class 20 Standard Trip
- Full Load Amperage Range: 3.23 to 5.23 Amps
- Compatible Relay Current: 32 or 75 Amps
- NEMA Starter Sizes: 00, 0, 1, 2
- Series/Frame: Eaton Freedom NEMA
- Application: Motor Control Overload Protection
- Mounting Type: Heater Coil for Overload Relay
- Trip Unit: Standard Thermal Trip
- Certifications: Meets NEMA and IEC standards
Specifications
- Part Number: H2008B-3
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : Freedom Series
- Type : H
- Full Load Amp Minimum : 3.23
- Full Load Amp Maximum : 5.23
- Full Load Amps : 3.23 to 5.23
Product Data
- UPC : 078211396754
- GTIN : 00782113967547
- Country of Origin : Dominican Republic
- Dimensions : 1.8 in x 3.1 in x 1.8 in (Length/Depth x Height x Width)
- Weight : 0.2 lb
- Certification : UL Listed,CSA Certified
