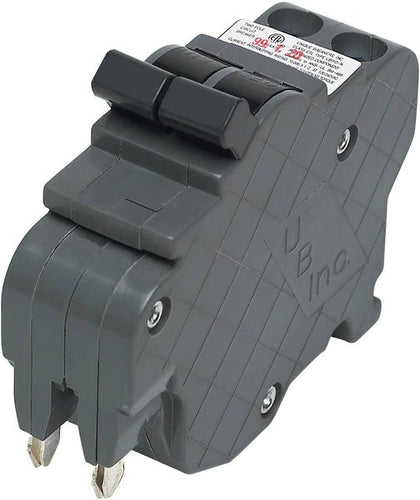

Reference images. Contact us for photos of the available unit.


Connecticut Electric

UBIF0240N

Connecticut Electric 2-Pole 40A 120/240V Thin Circuit Breaker 10kAIC ETL Listed


Current: 40Poles: 2Voltage: 120/240VConnection: Plug-In
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
Price:
Sale price $90.50
Stock:
3 in stock
Limited availability. Call (866) 377-3532 to check stock. We'll confirm stock immediately after your order.

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Sub-Category
Molded Case
Series
Thin Series
Frame
UBIFN
Rated current
40
Voltage
120/240V
Poles
2
Phases
1
Interrupting rating
10kA@240V
Trip functions
LI - Long-Time and Instantaneous
Protection
Thermal Magnetic
Connection
Plug-In
Terminals
Lug
Lugs
Included
Panel / equipment
Federal Pacific Load Centers
Standards
ETL Listed, UL Listed
Country of origin
China
Show all specifications (9 more)
Frame Size
70A/HACR
Temp Rating
0°F to 250°F
MCM Size
Min. Wire Size 14 AWG Max. Wire Size 8 AWG
Breaker Type
Standard
UPC
094925019353
GTIN
00094925019353
Dimensions
1 in x 3.36 in x 3.36 in
Weight
1
Certification
ETL Listed, UL Listed
Product description & additional details

UBIF0240N


UBIF0240N is a Connecticut Electric 2-pole, 40 amp circuit breaker designed for replacement in Federal Pacific Electric type NC (thin) load centers.

This breaker features a thermal magnetic trip unit, is rated for 120/240 VAC operation, and has a 10,000 AIC interrupt rating. It is ETL listed and classified for use in Federal Pacific load centers, providing reliable protection with a slim profile for space-saving installation.

    Key Specifications
    • Amperage: 40A
    • Voltage Rating: 120/240 VAC
    • Poles: 2
    • Mounting Type: Plug-In
    • Interrupt Rating: 10,000 AIC
    • Series/Frame: Type NC Thin
    • Trip Unit: Thermal Magnetic
    • Certifications: ETL Listed
    • Compatible with Federal Pacific Electric load centers
    • Dimensions: Approx. 3.36" depth, 2.55" height, 1" width

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: UBIF0240N
  • Manufacturer : Connecticut Electric
  • Brand : Connecticut Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Thin Series
  • Type : UBIFN
  • Voltage : 120/240
  • Amperage : 40
  • Phase : 1
  • Poles : 2
  • AIC rating : 10kA@240V
  • Connection : Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 70A/HACR
  • Temp Rating : 0°F to 250°F
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic

Product Data

  • UPC : 094925019353
  • GTIN : 00094925019353
  • Country of Origin : China
  • Dimensions : 1 in x 3.36 in x 3.36 in
  • Weight : 1
  • Panel Type : Federal Pacific Load Centers
  • Standards : ETL Listed, UL Listed
  • Certification : ETL Listed, UL Listed
