Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- American/Federal Pacific
- Sub-Category
- Molded Case
- Series
- Thin Series
- Frame
- UBIFN
- Rated current
- 15
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Lug
- Panel / equipment
- Federal Pacific Load Centers
- Standards
- ETL Listed, UL Listed
- Country of origin
- China
Show all specifications (9 more)
- Frame Size
- 70A/HACR
- Temp Rating
- 0°F to 250°F
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 10 AWG
- Breaker Type
- Standard
- UPC
- 094925418101
- GTIN
- 00094925418101
- Dimensions
- 1 in x 3.36 in x 3.36 in
- Weight
- 1 lb
- Certification
- ETL Listed, UL Listed
Product description & additional details

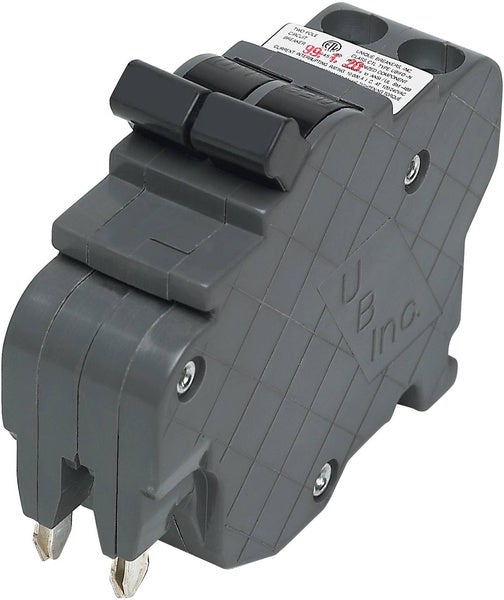

UBIF0215N
UBIF0215N is a 15 Amp, 2-pole circuit breaker from American Federal Pacific designed for 120/240 Volt applications in Stab-Lok compatible load centers.This Federal Pacific UBIF series breaker features a thermal magnetic trip unit and a plug-on mounting type. It has a 10,000 AIC interrupt rating and is ETL listed for safety and reliability. Ideal for replacement in Federal Pacific Stab-Lok panels, it ensures proper circuit protection with a standard trip curve.
- Key Specifications
- Amperage: 15 Amps
- Voltage: 120/240 Volts
- Number of Poles: 2
- Mounting Type: Plug-On
- Interrupt Rating: 10,000 AIC
- Series/Frame: UBIF
- Trip Unit: Thermal Magnetic
- Certifications: ETL Listed
- Breaker Type: Standard
- Connection Type: Non-Neutral
- Product Weight: Approximately 0.59 lb
- Manufacturer Warranty: 10 Years
- Part Number: UBIF0215N
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Thin Series
- Type : UBIFN
- Voltage : 120/240
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 70A/HACR
- Temp Rating : 0°F to 250°F
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- UPC : 094925418101
- GTIN : 00094925418101
- Country of Origin : China
- Dimensions : 1 in x 3.36 in x 3.36 in
- Weight : 1 lb
- Panel Type : Federal Pacific Load Centers
- Standards : ETL Listed, UL Listed
- Certification : ETL Listed, UL Listed
