Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Connecticut Electric
- Sub-Category
- Molded Case
- Series
- Thick Series
- Frame
- UBIFN
- Rated current
- 30
- Voltage
- 120/240V
- Poles
- 2
- Phases
- 1
- Interrupting rating
- 10kA@240V
- Trip functions
- LI - Long-Time and Instantaneous
- Protection
- Thermal Magnetic
- Connection
- Plug-In
- Terminals
- Lug
- Lugs
- Included
- Panel / equipment
- Federal Pacific Load Centers
- Standards
- ETL Listed, UL Listed
- Country of origin
- China
Show all specifications (9 more)
- Frame Size
- 70A/HACR
- Temp Rating
- 0°F to 250°F
- MCM Size
- Min. Wire Size 14 AWG Max. Wire Size 6 AWG
- Breaker Type
- Standard
- UPC
- 094925019414
- GTIN
- 00094925019414
- Dimensions
- 2 in x 3.36 in x 3.36 in
- Weight
- 2
- Certification
- ETL Listed, UL Listed
Product description & additional details

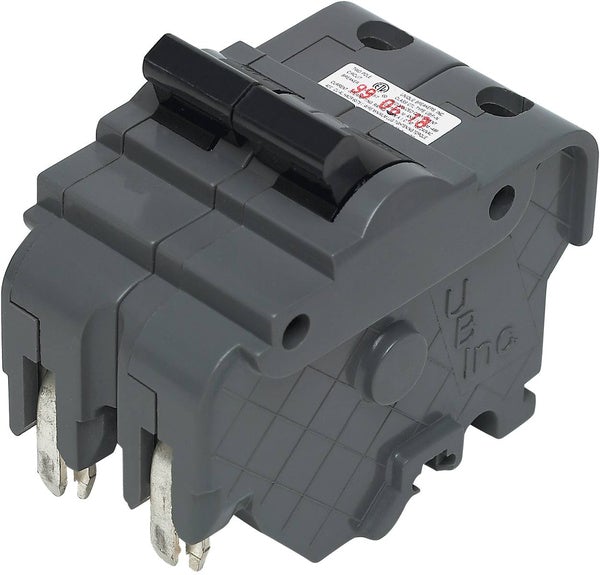

UBIF230N
UBIF230N is a 30 amp, 2-pole circuit breaker from Connecticut Electric designed as a replacement for Federal Pacific Electric type NA (thick) breakers.This circuit breaker features a thermal trip unit, is rated for 120/240 VAC operation, and has a 10,000 AIC interrupt rating. It is classified and approved for use in Federal Pacific load centers and is ETL listed for safety and performance. The breaker uses a plug-in mounting type and is part of the Thick Series frame.
- Amperage: 30A
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10,000 AIC
- Series/Frame: Thick Series
- Trip Unit: Thermal
- Certifications: ETL Listed
- Replacement for Federal Pacific Electric type NA (thick) breakers
- Common trip
- HACR rated
Specifications
- Part Number: UBIF230N
- Manufacturer : Connecticut Electric
- Brand : Connecticut Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Thick Series
- Type : UBIFN
- Voltage : 120/240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 70A/HACR
- Temp Rating : 0°F to 250°F
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 094925019414
- GTIN : 00094925019414
- Country of Origin : China
- Dimensions : 2 in x 3.36 in x 3.36 in
- Weight : 2
- Panel Type : Federal Pacific Load Centers
- Standards : ETL Listed, UL Listed
- Certification : ETL Listed, UL Listed
