American/Federal Pacific

UBIF015N

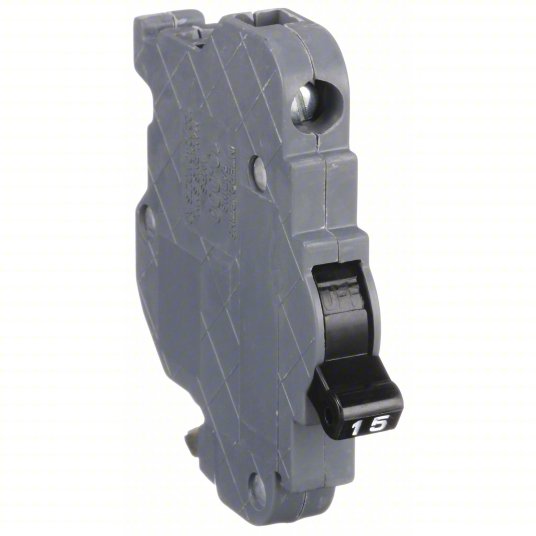

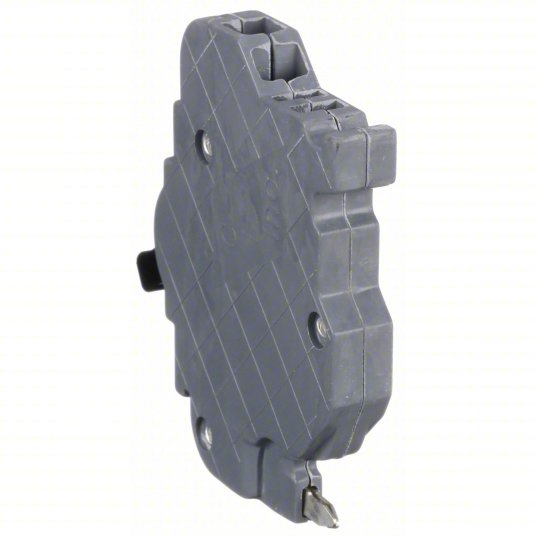

American Federal Pacific 15 Amp 1-Pole 120V Thin Series Circuit Breaker


Current: 15Poles: 1Voltage: 120/240VConnection: Plug-In
Choose your condition
Compare New & Re-Certified

New
Original equipment manufacturer (OEM) products that have never been energized. New items may come in their original factory packaging or may be unused components removed from new panels. Packaging and cosmetic appearance can vary; contact our team for details or photos of the available unit.

Re-Certified
Original equipment manufacturer (OEM) products that have previously been energized and have been inspected, tested, and recertified for return to service. These items may show signs of prior use. Contact our team for details about the unit’s condition, testing documentation, and applicable warranty.

Ask about this part →
Price:
Sale price $50.42
Stock:
Low inventory, please call (866) 377-3532 for stock check

Need it urgently? Call to confirm shipping options

Buying for a project? Request a quote

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

Product Description & Specifications

Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.

Manufacturer
American/Federal Pacific
Sub-Category
Molded Case
Series
Thin Series
Frame
UBIFN
Rated current
15
Voltage
120/240V
Poles
1
Phases
1
Interrupting rating
10kA@240V
Trip functions
LI - Long-Time and Instantaneous
Protection
Thermal Magnetic
Connection
Plug-In
Terminals
Lug
Lugs
Included
Panel / equipment
Federal Pacific Load Centers
Standards
ETL Listed, UL Listed
Country of origin
China
Show all specifications (9 more)
Frame Size
60A/SWD
Temp Rating
0°F to 250°F
MCM Size
Min. Wire Size 14 AWG Max. Wire Size 10 AWG
Breaker Type
Standard
UPC
094925019308
GTIN
00094925019308
Dimensions
0.5 in x 3.36 in x 3.36 in
Weight
5 lb
Certification
ETL Listed, UL Listed
Product description & additional details

UBIF015N


UBIF015N is a 15 Amp, 1-Pole circuit breaker designed for Federal Pacific and compatible load centers. It features a thin profile for space-saving installations.

This American Federal Pacific circuit breaker operates at 120 VAC with a plug-in mounting type. It has a 10,000 A interrupting capacity (AIC) and is part of the UBIF Thin Series, suitable as a replacement for Federal Pacific, Pushmatic, and Zinsco load centers. The breaker uses a magnetic thermal trip unit and meets UL 489 standards with ETL listing for US and Canada.

  • Amperage: 15 Amps
  • Voltage: 120 VAC
  • Poles: 1-Pole (1P)
  • Mounting Type: Plug-In
  • Interrupting Capacity: 10,000 A (10 kA)
  • Series/Frame: UBIF Thin Series
  • Trip Unit: Magnetic Thermal
  • Dimensions: Approximately 3.36 in L x 0.5 in W x 2.55 in H
  • Compatible with Federal Pacific, Pushmatic, Zinsco load centers
  • Certifications: ETL Listed to UL 489 for US and Canada

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: UBIF015N
  • Manufacturer : American/Federal Pacific
  • Brand : American/Federal Pacific
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Thin Series
  • Type : UBIFN
  • Voltage : 120/240
  • Amperage : 15
  • Phase : 1
  • Poles : 1
  • AIC rating : 10kA@240V
  • Connection : Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Lug
  • Frame Size : 60A/SWD
  • Temp Rating : 0°F to 250°F
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic

Product Data

  • UPC : 094925019308
  • GTIN : 00094925019308
  • Country of Origin : China
  • Dimensions : 0.5 in x 3.36 in x 3.36 in
  • Weight : 5 lb
  • Panel Type : Federal Pacific Load Centers
  • Standards : ETL Listed, UL Listed
  • Certification : ETL Listed, UL Listed
